CE80R-EEMDS (1983)

Toyota Corolla Sed/Lb

Production May 1983 - May 1985
Engine 1CL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )4ALC..ARL ; (8305- )4ALC..SDZ ; (8305- )2AL#,4AL..ARL,EUR ; (8505-

Click highlighted areas on diagram

diagram 1603 27020 27212 27310 27310A 27310B 27330 27330A 27350B 27351 27357 27359 27362 27371 27372 2737845090 2737845090 2738745022 2738745110 27410 27411 27441 27700A 9009900912 9009904300 9009905118 9009905118 9009905118 9009905119 9009905195 9009905221 9010110093 9010110480 9017010082 9017906158 9161160840 9165640616 9411041000 9451101400 9451201000 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-64070

1CL..CE80..GEN

12V 50A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-64060

1CL..CE80

12V 50A,55A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27333-57060

1CL..CE80

12V 50A,55A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10137

1CL..CE80

12V 50A,55A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-64010

1CL..CE80

12V 50A,55A

 1
27350B - CONDENSER, ALTERNATOR
90099-52066

1CL..CE80

12V 50A,55A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-64060

1CL..CE80

12V 50A,55A

 1
27371 - BRUSH, ALTERNATOR
27371-56070

1CL..CE80

12V 50A,55A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-56070

1CL..CE80

12V 50A,55A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-64020

1CL..CE80..GEN

12V 50A

 1
27411 - PULLEY, ALTERNATOR
27411-64060

1CL..CE80

12V 50A,55A

 1
27441 - FAN, ALTERNATOR
27441-64060

1CL..CE80

12V 50A,55A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-15030

2AL,4AL#,1CL..AE8#,CE80..EUR,GEN,SA,SAA

 1
Common parts
27378-45090
27387-45022
27387-45110
90099-00912
90099-04300
90099-05118
90099-05119
90099-05195
90099-05221
90101-10093
90101-10480
90170-10082
90179-06158
91611-60840
91656-40616
94110-41000
94511-01400
94512-01000
94612-11001
Linked diagrams
1603

(8305-8704)1CL

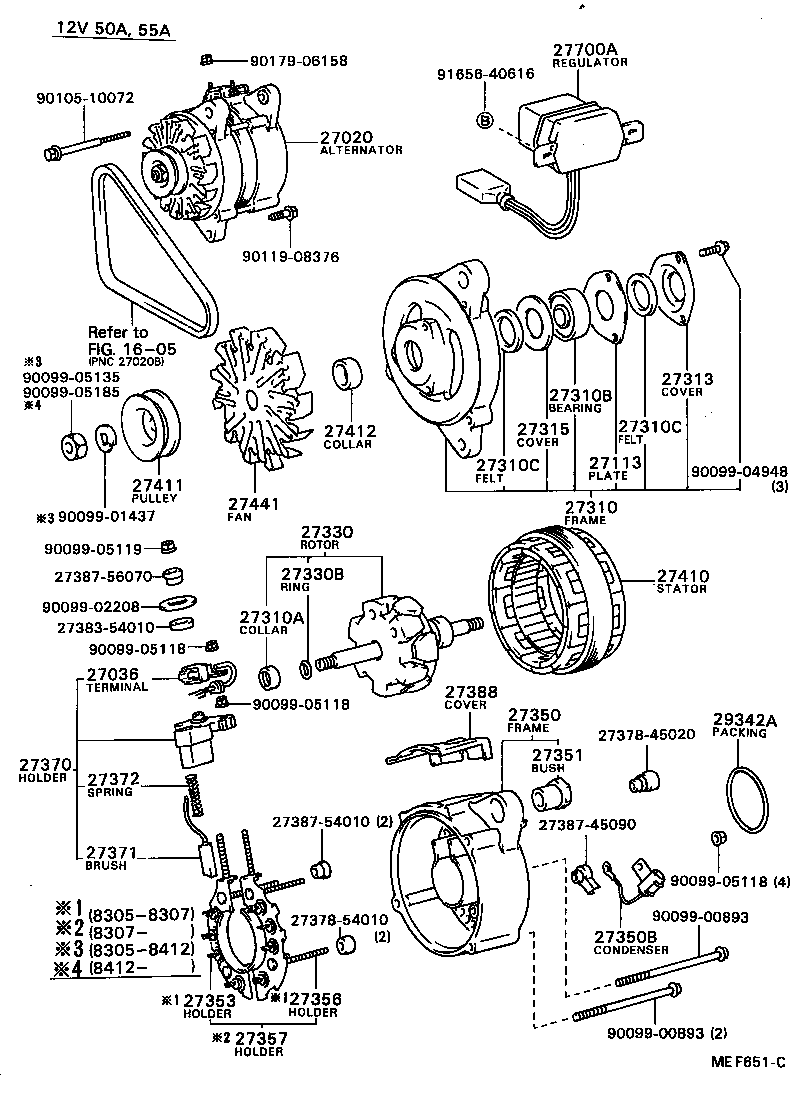

Click highlighted areas on diagram

diagram 1605 27020 27036 27113 27310 27310A 27310B 27310C 27310C 27313 27315 27330 27330B 27350 27350B 27351 27353 27356 27357 27370 27371 27372 2737845020 2737854010 2738354010 2738745090 2738754010 2738756070 27388 27410 27411 27412 27441 27700A 29342A 9009900893 9009900893 9009901437 9009902208 9009904948 9009905118 9009905118 9009905118 9009905119 9009905135 9009905185 9010510072 9011908376 9017906158 9165640616
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-64070

1CL..CE80..GEN

12V 50A

 1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-54010

1CL..CE80

12V 50A,55A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-57060

1CL..CE80

12V 50A,55A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-64060

1CL..CE80

12V 50A,55A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27333-57060

1CL..CE80

12V 50A,55A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10137

1CL..CE80

12V 50A,55A

 1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02209

1CL..CE80

12V 50A,55A

 2
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02209

1CL..CE80

12V 50A,55A

 2
27313 - COVER, ALTERNATOR FELT, INNER NO.2
27313-57060

1CL..CE80

12V 50A,55A

 1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27315-57060

1CL..CE80

12V 50A,55A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-64010

1CL..CE80

12V 50A,55A

 1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07103

1CL..CE80

12V 50A,55A

 1
27350 - FRAME ASSY, RECTIFIER END
27350-64060

1CL..CE80

12V 50A,55A

 1
27350B - CONDENSER, ALTERNATOR
90099-52066

1CL..CE80

12V 50A,55A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-64060

1CL..CE80

12V 50A,55A

 1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-64020

1CL..CE80..GEN

12V 50A

 1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-54060

1CL..CE80..GEN

12V 50A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-54010

1CL..CE80

12V 50A,55A

 1
27371 - BRUSH, ALTERNATOR
27371-56070

1CL..CE80

12V 50A,55A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-56070

1CL..CE80

12V 50A,55A

 2
27388 - COVER, ALTERNATOR BRUSH
27388-68040

1CL..CE80

12V 50A,55A

 1
27410 - STATOR ASSY, ALTERNATOR
27410-64020

1CL..CE80..GEN

12V 50A

 1
27411 - PULLEY, ALTERNATOR
27411-64060

1CL..CE80

12V 50A,55A

 1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-64060

1CL..CE80

12V 50A,55A

 1
27441 - FAN, ALTERNATOR
27441-64060

1CL..CE80

12V 50A,55A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-15030

2AL,4AL#,1CL..AE8#,CE80..EUR,GEN,SA,SAA

 1
29342A - PACKING, VACUUM PUMP
90099-14055

1CL..CE80

12V 50A,55A

 1
Common parts
27378-45020
27378-54010
27383-54010
27387-45090
27387-54010
27387-56070
90099-00893
90099-01437
90099-02208
90099-04948
90099-05118
90099-05119
90099-05135
90099-05185
90105-10072
90119-08376
90179-06158
91656-40616
Linked diagrams
1605
