CE80R-EEMDS (1983)
Toyota Corolla Sed/Lb
Production
May 1983
-
May 1985
Engine
1CL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )1CL

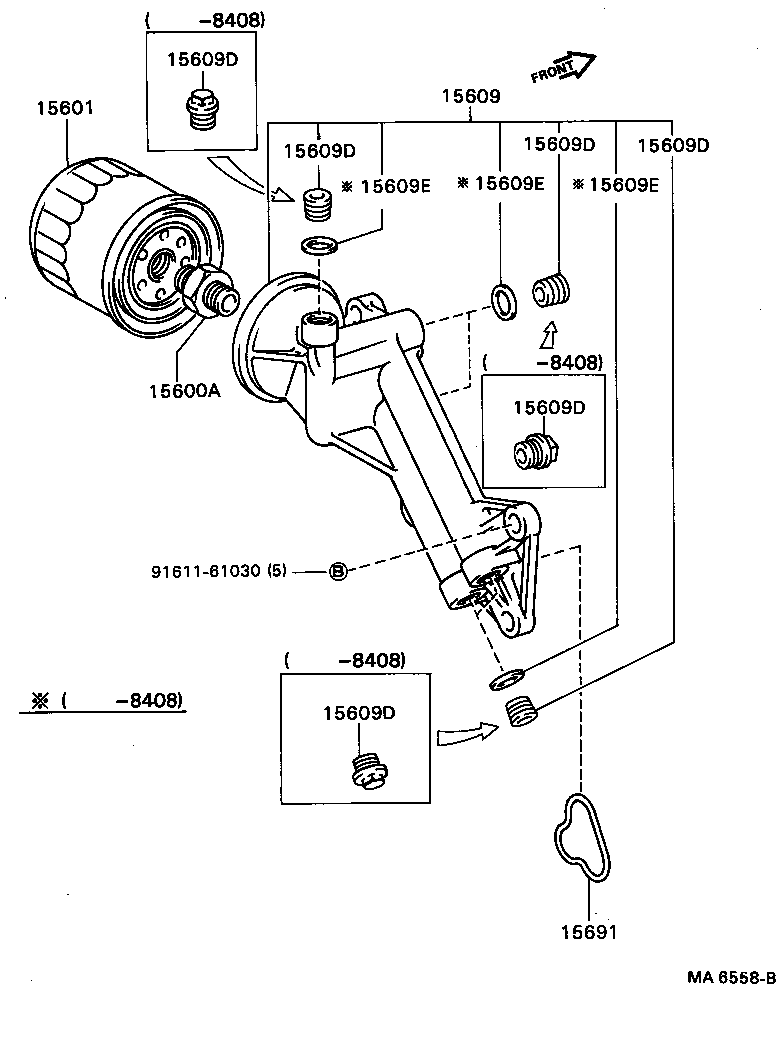

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15600A - UNION(FOR OIL FILTER) | ||||
| 90404-19004 |
1CL..CE80 |
1 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 15600-25010 |
1CL..CE80 |
1 | ||
| 15609 - BRACKET SUB-ASSY, OIL FILTER | ||||
| 15608-64010 |
1CL..CE80 |
1 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-16009 |
1CL..CE80 |
5 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-16009 |
1CL..CE80 |
5 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-16009 |
1CL..CE80 |
5 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-16009 |
1CL..CE80 |
5 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-16009 |
1CL..CE80 |
5 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-16009 |
1CL..CE80 |
5 | ||
| 15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG | ||||
| 90430-16242 |
1CL..CE80 |
5 | ||
| 15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG | ||||
| 90430-16242 |
1CL..CE80 |
5 | ||
| 15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG | ||||
| 90430-16242 |
1CL..CE80 |
5 | ||
| 15691 - GASKET, OIL FILTER | ||||
| 15691-64020 |
1CL..CE80 |
1 | ||
| Common parts | ||||
| 91611-61030 | ||||
