CE80R-EEMDS (1983)
Toyota Corolla Sed/Lb
(8305- )1CL

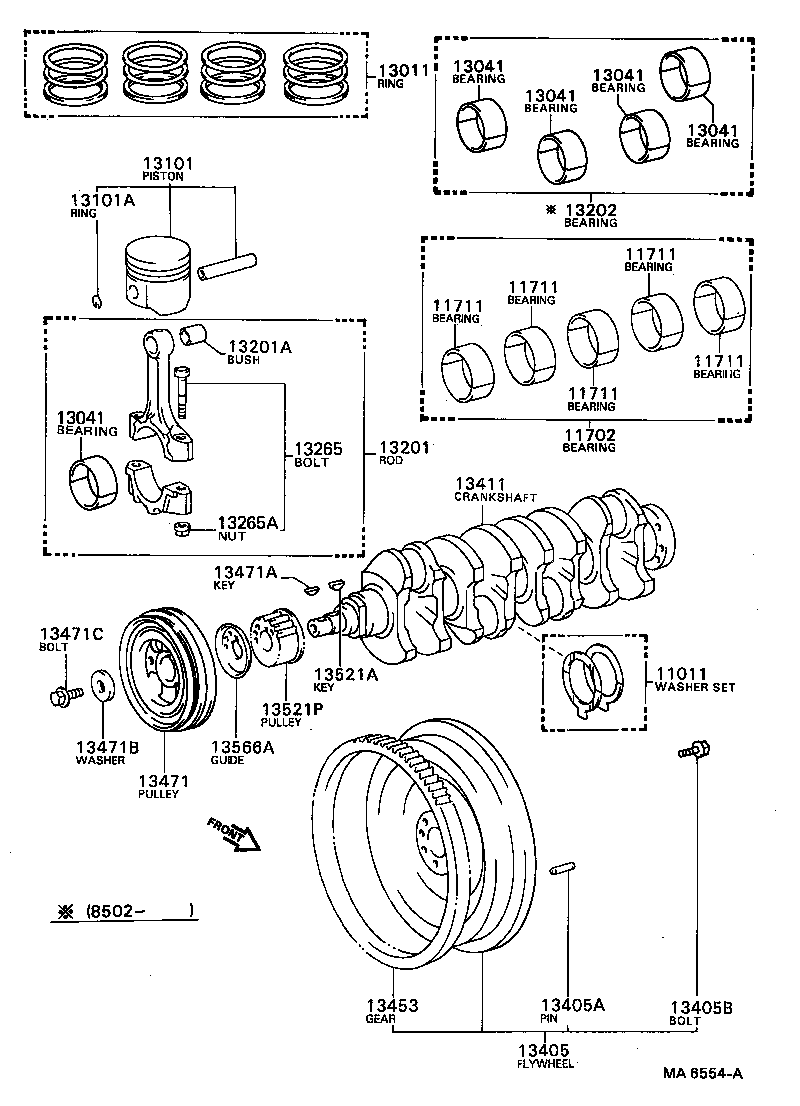

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11013-64010 |
1CL..CE80 O/S 0.250,O/S 0.250 |
1 | ||
| 11012-64010 |
1CL..CE80 O/S 0.125,O/S 0.125 |
1 | ||
| 11011-64010 |
1CL..CE80 STD,STD |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-64030 |
1CL..CE80 U/S 0.25,U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-6403002 |
1CL..CE80 MARK "2",MARK 2 |
5 | ||
| 11701-6401002 |
1CL..CE80 MARK "2",MARK 2 |
5 | ||
| 11701-6401001 |
1CL..CE80 MARK "1",MARK 1 |
5 | ||
| 11701-6403003 |
1CL..CE80 MARK "3",MARK 3 |
5 | ||
| 11701-6403001 |
1CL..CE80 MARK "1",MARK 1 |
5 | ||
| 11701-6401003 |
1CL..CE80 MARK "3",MARK 3 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-6403002 |
1CL..CE80 MARK "2",MARK 2 |
5 | ||
| 11701-6401002 |
1CL..CE80 MARK "2",MARK 2 |
5 | ||
| 11701-6401001 |
1CL..CE80 MARK "1",MARK 1 |
5 | ||
| 11701-6403003 |
1CL..CE80 MARK "3",MARK 3 |
5 | ||
| 11701-6403001 |
1CL..CE80 MARK "1",MARK 1 |
5 | ||
| 11701-6401003 |
1CL..CE80 MARK "3",MARK 3 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-6403002 |
1CL..CE80 MARK "2",MARK 2 |
5 | ||
| 11701-6401002 |
1CL..CE80 MARK "2",MARK 2 |
5 | ||
| 11701-6401001 |
1CL..CE80 MARK "1",MARK 1 |
5 | ||
| 11701-6403003 |
1CL..CE80 MARK "3",MARK 3 |
5 | ||
| 11701-6403001 |
1CL..CE80 MARK "1",MARK 1 |
5 | ||
| 11701-6401003 |
1CL..CE80 MARK "3",MARK 3 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-6403002 |
1CL..CE80 MARK "2",MARK 2 |
5 | ||
| 11701-6401002 |
1CL..CE80 MARK "2",MARK 2 |
5 | ||
| 11701-6401001 |
1CL..CE80 MARK "1",MARK 1 |
5 | ||
| 11701-6403003 |
1CL..CE80 MARK "3",MARK 3 |
5 | ||
| 11701-6403001 |
1CL..CE80 MARK "1",MARK 1 |
5 | ||
| 11701-6401003 |
1CL..CE80 MARK "3",MARK 3 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-6403002 |
1CL..CE80 MARK "2",MARK 2 |
5 | ||
| 11701-6401002 |
1CL..CE80 MARK "2",MARK 2 |
5 | ||
| 11701-6401001 |
1CL..CE80 MARK "1",MARK 1 |
5 | ||
| 11701-6403003 |
1CL..CE80 MARK "3",MARK 3 |
5 | ||
| 11701-6403001 |
1CL..CE80 MARK "1",MARK 1 |
5 | ||
| 11701-6401003 |
1CL..CE80 MARK "3",MARK 3 |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-64020 |
1CL..CE80 STD |
1 | ||
| 13013-64020 |
1CL..CE80 O/S 0.50 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6403002 |
1CL..CE80 MARK "2",MARK 2 |
4 | ||
| 13041-6403101 |
1CL..CE80 MARK "1",MARK 1 |
4 | ||
| 13041-6403001 |
1CL..CE80 MARK "1",MARK 1 |
4 | ||
| 13041-6401003 |
1CL..CE80 MARK "3",MARK 3 |
4 | ||
| 13041-6403103 |
1CL..CE80 MARK "3",MARK 3 |
4 | ||
| 13041-6401001 |
1CL..CE80 MARK "1",MARK 1 |
4 | ||
| 13041-6403003 |
1CL..CE80 MARK "3",MARK 3 |
4 | ||
| 13041-6401002 |
1CL..CE80 MARK "2",MARK 2 |
4 | ||
| 13041-6403102 |
1CL..CE80 MARK "2",MARK 2 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6403002 |
1CL..CE80 MARK "2",MARK 2 |
4 | ||
| 13041-6403101 |
1CL..CE80 MARK "1",MARK 1 |
4 | ||
| 13041-6403001 |
1CL..CE80 MARK "1",MARK 1 |
4 | ||
| 13041-6401003 |
1CL..CE80 MARK "3",MARK 3 |
4 | ||
| 13041-6403103 |
1CL..CE80 MARK "3",MARK 3 |
4 | ||
| 13041-6401001 |
1CL..CE80 MARK "1",MARK 1 |
4 | ||
| 13041-6403003 |
1CL..CE80 MARK "3",MARK 3 |
4 | ||
| 13041-6401002 |
1CL..CE80 MARK "2",MARK 2 |
4 | ||
| 13041-6403102 |
1CL..CE80 MARK "2",MARK 2 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6403002 |
1CL..CE80 MARK "2",MARK 2 |
4 | ||
| 13041-6403101 |
1CL..CE80 MARK "1",MARK 1 |
4 | ||
| 13041-6403001 |
1CL..CE80 MARK "1",MARK 1 |
4 | ||
| 13041-6401003 |
1CL..CE80 MARK "3",MARK 3 |
4 | ||
| 13041-6403103 |
1CL..CE80 MARK "3",MARK 3 |
4 | ||
| 13041-6401001 |
1CL..CE80 MARK "1",MARK 1 |
4 | ||
| 13041-6403003 |
1CL..CE80 MARK "3",MARK 3 |
4 | ||
| 13041-6401002 |
1CL..CE80 MARK "2",MARK 2 |
4 | ||
| 13041-6403102 |
1CL..CE80 MARK "2",MARK 2 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6403002 |
1CL..CE80 MARK "2",MARK 2 |
4 | ||
| 13041-6403101 |
1CL..CE80 MARK "1",MARK 1 |
4 | ||
| 13041-6403001 |
1CL..CE80 MARK "1",MARK 1 |
4 | ||
| 13041-6401003 |
1CL..CE80 MARK "3",MARK 3 |
4 | ||
| 13041-6403103 |
1CL..CE80 MARK "3",MARK 3 |
4 | ||
| 13041-6401001 |
1CL..CE80 MARK "1",MARK 1 |
4 | ||
| 13041-6403003 |
1CL..CE80 MARK "3",MARK 3 |
4 | ||
| 13041-6401002 |
1CL..CE80 MARK "2",MARK 2 |
4 | ||
| 13041-6403102 |
1CL..CE80 MARK "2",MARK 2 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6403002 |
1CL..CE80 MARK "2",MARK 2 |
4 | ||
| 13041-6403101 |
1CL..CE80 MARK "1",MARK 1 |
4 | ||
| 13041-6403001 |
1CL..CE80 MARK "1",MARK 1 |
4 | ||
| 13041-6401003 |
1CL..CE80 MARK "3",MARK 3 |
4 | ||
| 13041-6403103 |
1CL..CE80 MARK "3",MARK 3 |
4 | ||
| 13041-6401001 |
1CL..CE80 MARK "1",MARK 1 |
4 | ||
| 13041-6403003 |
1CL..CE80 MARK "3",MARK 3 |
4 | ||
| 13041-6401002 |
1CL..CE80 MARK "2",MARK 2 |
4 | ||
| 13041-6403102 |
1CL..CE80 MARK "2",MARK 2 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13103-64010 |
1CL..CE80 O/S 0.50 |
4 | ||
| 13101-64010 |
1CL..CE80 STD |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-29003 |
1CL..CE80 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-69035 |
1CL..CE80 |
4 | ||
| 13201-69025 |
1CL..CE80 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73091 |
1CL..CE80 |
4 | ||
| 90999-73101 |
1CL..CE80 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-64031 |
1CL..CE80 U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-49015 |
1CL..CE80 |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90179-10042 |
1CL..CE80 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-69065 |
1CL..CE80 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
1CL..CE80 L=23,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10071 |
1CL..CE80 |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-64010 |
1CL..CE80 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-64011 |
1CL..CE80 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-64030 |
1CL..CE80 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-20516 |
1CL..CE80 |
1 | ||
| 13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET) | ||||
| 90201-14007 |
1CL..CE80 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 91511-61435 |
1CL..CE80 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-20622 |
1CL..CE80 |
1 | ||
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| 13521-64010 |
1CL..CE80 |
1 | ||
| 13566A - GUIDE, TIMING BELT | ||||
| 13566-64010 |
1CL..CE80 |
1 | ||
