CE80R-EEMDS (1983)
Toyota Corolla Sed/Lb
Production
May 1983
-
May 1985
Engine
1CL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )1CL

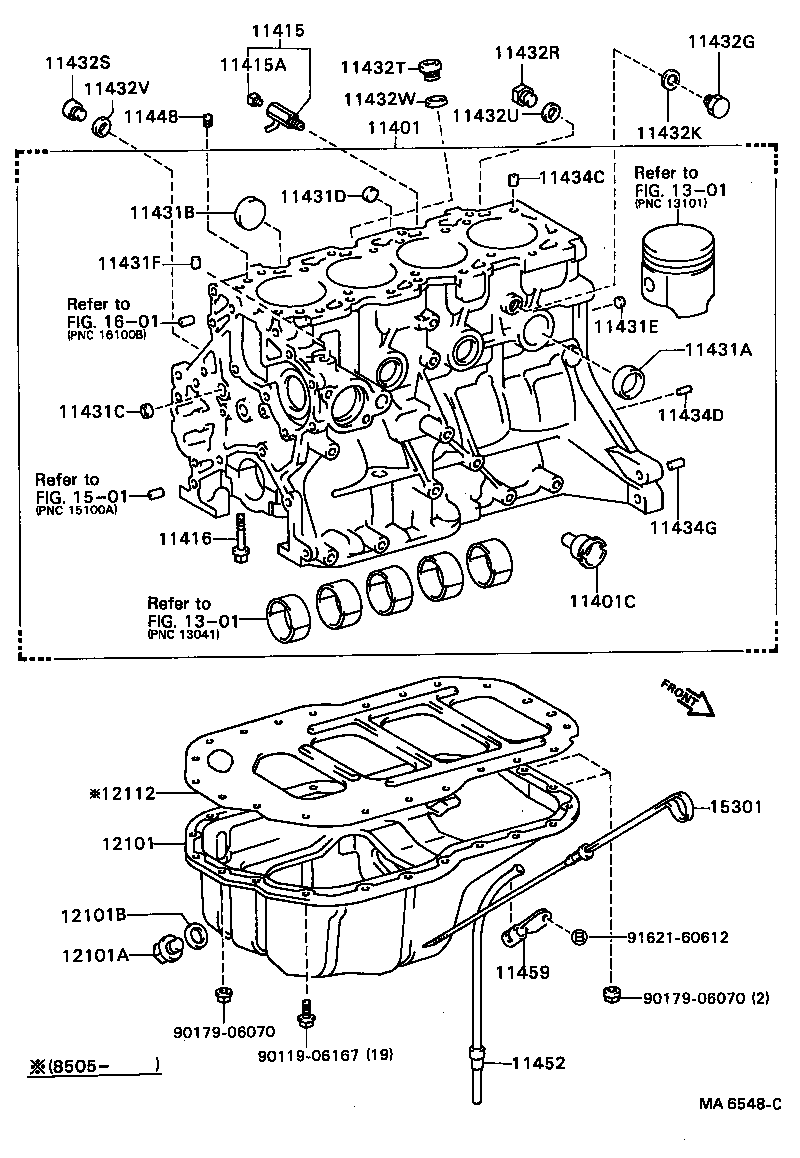

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-69116 |
1CL..CE80 |
1 | ||
| 11401-69115 |
1CL..CE80 |
1 | ||
| 11401C - FLANGE(FOR WATER BY-PASS) | ||||
| 16353-64010 |
1CL..CE80 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09075 |
1CL..CE80 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90109-10023 |
1CL..CE80 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02061 |
1CL..CE80 *12-1.25PX80-24 |
10 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
1CL..CE80 OD=35 |
6 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-43000 |
1CL..CE80 OD=30 |
6 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-11800 |
1CL..CE80 OD=18 |
1 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-11800 |
1CL..CE80 OD=18 |
1 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 96411-11800 |
1CL..CE80 OD=18 |
2 | ||
| 11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK) | ||||
| 90331-17001 |
1CL..CE80 OD=16.8 |
1 | ||
| 11432R - PLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK) | ||||
| 90341-18017 |
1CL..CE80 OIL PRESSURE S/W |
1 | ||
| 90341-18006 |
1CL..CE80 |
1 | ||
| 11432S - PLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR CYLINDER BLOCK) | ||||
| 90341-20002 |
1CL..CE80 |
1 | ||
| 11432T - PLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK) | ||||
| 90341-22001 |
1CL..CE80 |
1 | ||
| 11432U - GASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK) | ||||
| 90430-18001 |
1CL..CE80 |
2 | ||
| 11432V - GASKET, STRAIGHT SCREW PLUG NO.2(FOR CYLINDER BLOCK) | ||||
| 90430-20004 |
1CL..CE80 |
1 | ||
| 11432W - GASKET, STRAIGHT SCREW PLUG NO.3(FOR CYLINDER BLOCK) | ||||
| 90430-22003 |
1CL..CE80 |
1 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-14001 |
1CL..CE80 L=9,OD=14 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06068 |
1CL..CE80 L=11,OD=6 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10113 |
1CL..CE80 |
2 | ||
| 11448 - ORIFICE, CYLINDER BLOCK OIL | ||||
| 11448-54010 |
1CL..CE80 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-64030 |
1CL..CE80 |
1 | ||
| 11459 - SUPPORT, OIL LEVEL GAGE GUIDE | ||||
| 90929-01049 |
1CL..CE80 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-64020 |
1CL..CE80 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
1CL..CE80 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
1CL..CE80 |
1 | ||
| 90430-18244 |
1CL..CE80 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-64010 |
1CL..CE80 |
1 | ||
| Common parts | ||||
| 90119-06167 | ||||
| 90179-06070 | ||||
| 91621-60612 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1501 | ||||
| 1601 | ||||
