Toyota Corolla sed/lb CE80 CAMSHAFT & VALVE

Part #	Description	Period	Qty
13502 - IDLER SUB-ASSY, TIMING BELT, NO.2
13503-64020	1CL..CE80	05/1983 - 04/1987	1
13505 - IDLER SUB-ASSY, TIMING BELT, NO.1
13505-64020	1CL..CE80	05/1983 - 12/1986	1
13505-64021	1CL..CE80	12/1986 - 04/1987	1
13505A - SPRING, TENSION(FOR IDLER)
90507-18006	1CL..CE80	05/1983 - 04/1987	1
13505C - PIN(FOR IDLER SPRING TENSION)
13575-64010	1CL..CE80	05/1983 - 04/1987	1
13511 - CAMSHAFT
13511-64010	1CL..CE80	05/1983 - 01/1985	1
13511-64030	1CL..CE80	05/1985 - 04/1987	1
13511-64011	1CL..CE80	01/1985 - 05/1985	1
13511 - CAMSHAFT
13511-64010	1CL..CE80	05/1983 - 01/1985	1
13511-64030	1CL..CE80	05/1985 - 04/1987	1
13511-64011	1CL..CE80	01/1985 - 05/1985	1
13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK)
90250-05121	1CL..CE80 L=15,OD=5	05/1983 - 01/1985	2
13523A - KEY, WOODRUFF(FOR TIMING GEAR)
90280-05004	1CL..CE80	01/1985 - 04/1987	1
13523B - WASHER, PLATE(FOR TIMING GEAR)
90201-13019	1CL..CE80	05/1983 - 01/1985	1
13523P - PULLEY, CAMSHAFT TIMING
13051-64011	1CL..CE80	01/1985 - 04/1987	1
13051-64010	1CL..CE80	05/1983 - 01/1985	1
13523P - PULLEY, CAMSHAFT TIMING
13051-64011	1CL..CE80	01/1985 - 04/1987	1
13051-64010	1CL..CE80	05/1983 - 01/1985	1
13568 - BELT, TIMING
13568-64011	1CL..CE80	03/1986 - 04/1987	1
13568-64010	1CL..CE80	05/1983 - 03/1986	1
13613P - PULLEY, INJECTION PUMP DRIVE
13613-64010	1CL..CE80	05/1983 - 05/1985	1
13613-64011	1CL..CE80	05/1985 - 04/1987	1
13711 - VALVE, INTAKE
13711-64010	1CL..CE80	05/1983 - 04/1985	4
13711-64011	1CL..CE80	04/1985 - 05/1985	4
13711-64020	1CL..CE80	05/1985 - 04/1987	4
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02053	1CL..CE80	05/1983 - 04/1987	8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02053	1CL..CE80	05/1983 - 04/1987	8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-43003	1CL..CE80	05/1983 - 04/1987	8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-43003	1CL..CE80	05/1983 - 04/1987	8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-16010	1CL..CE80	05/1983 - 04/1987	8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-16010	1CL..CE80	05/1983 - 04/1987	8
13715 - VALVE, EXHAUST
13715-64010	1CL..CE80	05/1983 - 04/1985	4
13715-64030	1CL..CE80	05/1985 - 04/1987	4
13715-64012	1CL..CE80	04/1985 - 05/1985	4
13741 - RETAINER, VALVE SPRING
13741-43010	1CL..CE80	05/1983 - 04/1987	8
13741 - RETAINER, VALVE SPRING
13741-43010	1CL..CE80	05/1983 - 04/1987	8
13741A - LOCK, VALVE SPRING RETAINER
90913-03014	1CL..CE80	05/1983 - 04/1987	16
13741A - LOCK, VALVE SPRING RETAINER
90913-03014	1CL..CE80	05/1983 - 04/1987	16
13751 - LIFTER, VALVE
13751-64010	1CL..CE80	05/1983 - 04/1985	8
13751-64011	1CL..CE80	04/1985 - 04/1987	8
13751 - LIFTER, VALVE
13751-64010	1CL..CE80	05/1983 - 04/1985	8
13751-64011	1CL..CE80	04/1985 - 04/1987	8
13753 - SHIM, VALVE ADJUSTING
13753-64070	1CL..CE80 T=2.35,T=2.35	05/1983 - 04/1987	8
13753-64090	1CL..CE80 T=2.40,T=2.40	05/1983 - 04/1987	8
13753-64190	1CL..CE80 T=2.65,T=2.65	05/1983 - 04/1987	8
13753-64130	1CL..CE80 T=2.50,T=2.50	05/1983 - 04/1987	8
13753-64030	1CL..CE80 T=2.25,T=2.25	05/1983 - 04/1987	8
13753-64310	1CL..CE80 T=2.95,T=2.95	05/1983 - 04/1987	8
13753-64150	1CL..CE80 T=2.55,T=2.55	05/1983 - 04/1987	8
13753-64230	1CL..CE80 T=2.75,T=2.75	05/1983 - 04/1987	8
13753-64110	1CL..CE80 T=2.45,T=2.45	05/1983 - 04/1987	8
13753-64010	1CL..CE80 T=2.20,T=2.20	05/1983 - 04/1987	8
13753-64210	1CL..CE80 T=2.70,T=2.70	05/1983 - 04/1987	8
13753-64370	1CL..CE80 T=3.10,T=3.10	05/1983 - 04/1987	8
13753-64290	1CL..CE80 T=2.90,T=2.90	05/1983 - 04/1987	8
13753-64330	1CL..CE80 T=3.00,T=3.00	05/1983 - 04/1987	8
13753-64050	1CL..CE80 T=2.30,T=2.30	05/1983 - 04/1987	8
13753-64170	1CL..CE80 T=2.60,T=2.60	05/1983 - 04/1987	8
13753-64350	1CL..CE80 T=3.05,T=3.05	05/1983 - 04/1987	8
13753-64410	1CL..CE80 T=3.20,T=3.20	05/1983 - 04/1987	8
13753-64490	1CL..CE80 T=3.40,T=3.40	05/1983 - 04/1987	8
13753-64470	1CL..CE80 T=3.35,T=3.35	05/1983 - 04/1987	8
13753-64250	1CL..CE80 T=2.80,T=2.80	05/1983 - 04/1987	8
13753-64430	1CL..CE80 T=3.25,T=3.25	05/1983 - 04/1987	8
13753-64390	1CL..CE80 T=3.15,T=3.15	05/1983 - 04/1987	8
13753-64450	1CL..CE80 T=3.30,T=3.30	05/1983 - 04/1987	8
13753-64270	1CL..CE80 T=2.85,T=2.85	05/1983 - 04/1987	8
13753 - SHIM, VALVE ADJUSTING
13753-64070	1CL..CE80 T=2.35,T=2.35	05/1983 - 04/1987	8
13753-64090	1CL..CE80 T=2.40,T=2.40	05/1983 - 04/1987	8
13753-64190	1CL..CE80 T=2.65,T=2.65	05/1983 - 04/1987	8
13753-64130	1CL..CE80 T=2.50,T=2.50	05/1983 - 04/1987	8
13753-64030	1CL..CE80 T=2.25,T=2.25	05/1983 - 04/1987	8
13753-64310	1CL..CE80 T=2.95,T=2.95	05/1983 - 04/1987	8
13753-64150	1CL..CE80 T=2.55,T=2.55	05/1983 - 04/1987	8
13753-64230	1CL..CE80 T=2.75,T=2.75	05/1983 - 04/1987	8
13753-64110	1CL..CE80 T=2.45,T=2.45	05/1983 - 04/1987	8
13753-64010	1CL..CE80 T=2.20,T=2.20	05/1983 - 04/1987	8
13753-64210	1CL..CE80 T=2.70,T=2.70	05/1983 - 04/1987	8
13753-64370	1CL..CE80 T=3.10,T=3.10	05/1983 - 04/1987	8
13753-64290	1CL..CE80 T=2.90,T=2.90	05/1983 - 04/1987	8
13753-64330	1CL..CE80 T=3.00,T=3.00	05/1983 - 04/1987	8
13753-64050	1CL..CE80 T=2.30,T=2.30	05/1983 - 04/1987	8
13753-64170	1CL..CE80 T=2.60,T=2.60	05/1983 - 04/1987	8
13753-64350	1CL..CE80 T=3.05,T=3.05	05/1983 - 04/1987	8
13753-64410	1CL..CE80 T=3.20,T=3.20	05/1983 - 04/1987	8
13753-64490	1CL..CE80 T=3.40,T=3.40	05/1983 - 04/1987	8
13753-64470	1CL..CE80 T=3.35,T=3.35	05/1983 - 04/1987	8
13753-64250	1CL..CE80 T=2.80,T=2.80	05/1983 - 04/1987	8
13753-64430	1CL..CE80 T=3.25,T=3.25	05/1983 - 04/1987	8
13753-64390	1CL..CE80 T=3.15,T=3.15	05/1983 - 04/1987	8
13753-64450	1CL..CE80 T=3.30,T=3.30	05/1983 - 04/1987	8
13753-64270	1CL..CE80 T=2.85,T=2.85	05/1983 - 04/1987	8
13951A - BOLT(FOR ROCKER SUPPORT SET)
91621-60840	1CL..CE80	01/1985 - 04/1987	10
91651-60845	1CL..CE80	05/1983 - 01/1985	10
Common parts
90105-10032
90105-12048
90105-12097
90109-06045
91621-61050

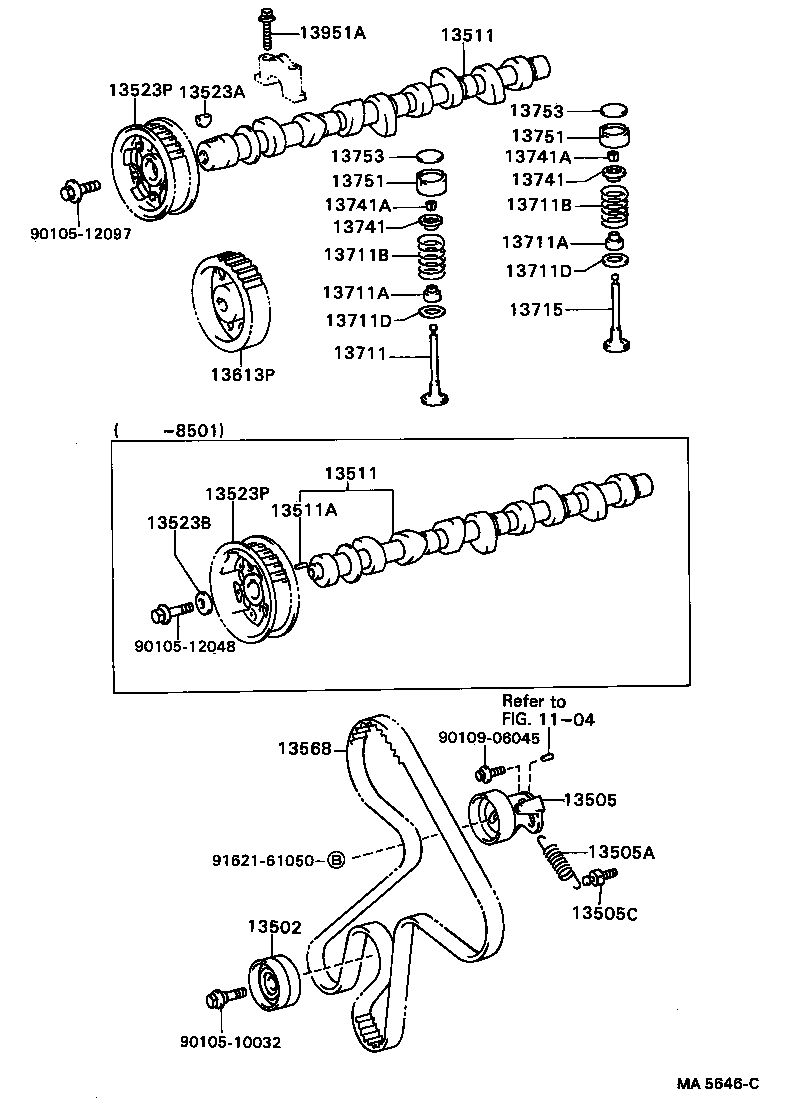

Linked diagrams
1104

CE80L-EEMDS (1983)

(8305- )1CL
