AE80R-ELMDS (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Oct 1984
Engine 2AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

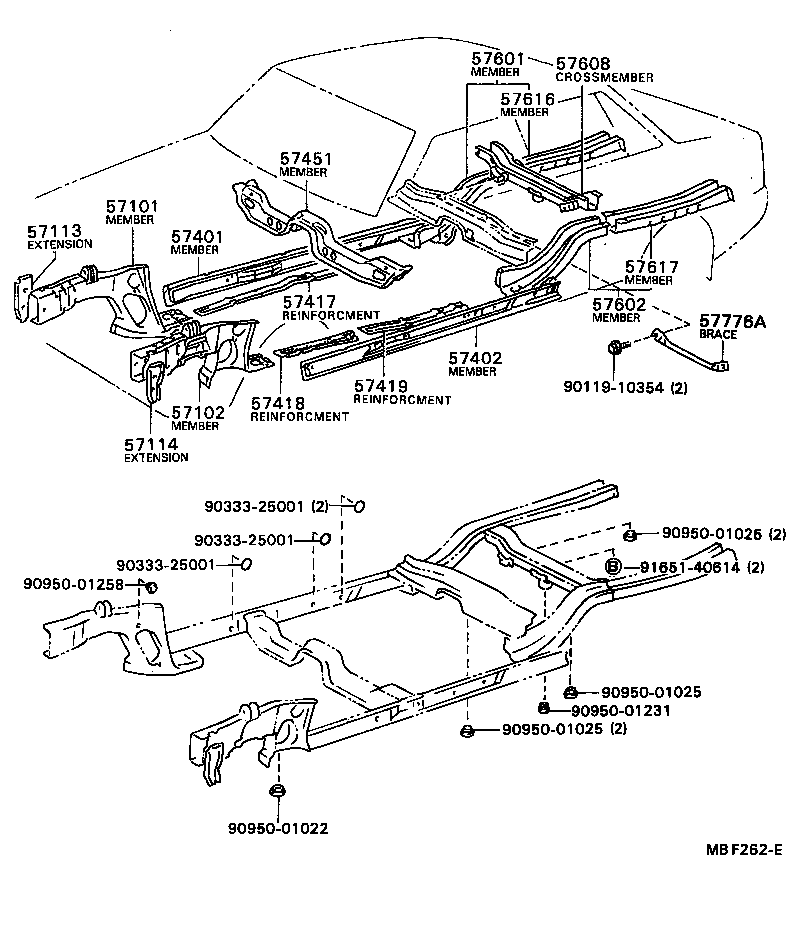

Click highlighted areas on diagram

diagram 57101 57102 57113 57114 57401 57402 57417 57418 57419 57451 57601 57602 57608 57616 57617 57776A 9011910354 9033325001 9033325001 9033325001 9095001022 9095001025 9095001025 9095001025 9095001231 9095001258 9165140614
Part # Description Qty Price
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-12290

AE8#..GEN

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-12290

AE8#..GEN

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-12090

AE8#,CE80,EE80..ARL,EUR,GEN,SA

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-12090

AE8#,CE80,EE80..ARL,EUR,GEN,SA

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-12180

AE8#,CE80,EE80..(4DS,5D,5DS)..GEN

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-12180

AE8#,CE80,EE80..(4DS,5D,5DS)..GEN

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-12060

AE8#,CE80

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-20030

AE8#,CE80

 1
57419 - REINFORCEMENT, FRONT FLOOR UNDER, LH NO.2
57419-12010

AE8#,CE80

 1
57451 - MEMBER, FRONT FLOOR CROSS
57408-12040

AE8#,CE80,EE80..EUR,GEN,SA,SAA

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-12340

AE82..(4DS,5D)..(EUG,SDZ);AE82..(4DS,5D)..(ARL,GEN,SA);AE80,CE80,EE80..(4DS,5D)..(ARL,EUR,GEN,SA)

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-12310

AE8#,CE80,EE80..(4DS,5D)..(ARL,EUR,GEN,SA)

 1
57608 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2
57606-12050

AE8#,CE80,EE80..(DX,GL,STD,XL)..(EUR,GEN,SAA)

 1
57616 - MEMBER, REAR FLOOR SIDE, REAR RH
57615-16902

AE8#,CE80,EE80..(4DS,5D)..(ARL,EUR,GEN,SA)

 1
57617 - MEMBER, REAR FLOOR SIDE, REAR LH
57616-16902

AE8#,CE80,EE80..(4DS,5D)..(ARL,EUR,GEN,SA)

 1
Common parts
90119-10354
90333-25001
90950-01022
90950-01025
90950-01231
90950-01258
91651-40614
