AE80R-ELMDS (1983)
Toyota Corolla Sed/Lb
(8305- )DX,GL,STD,XL..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

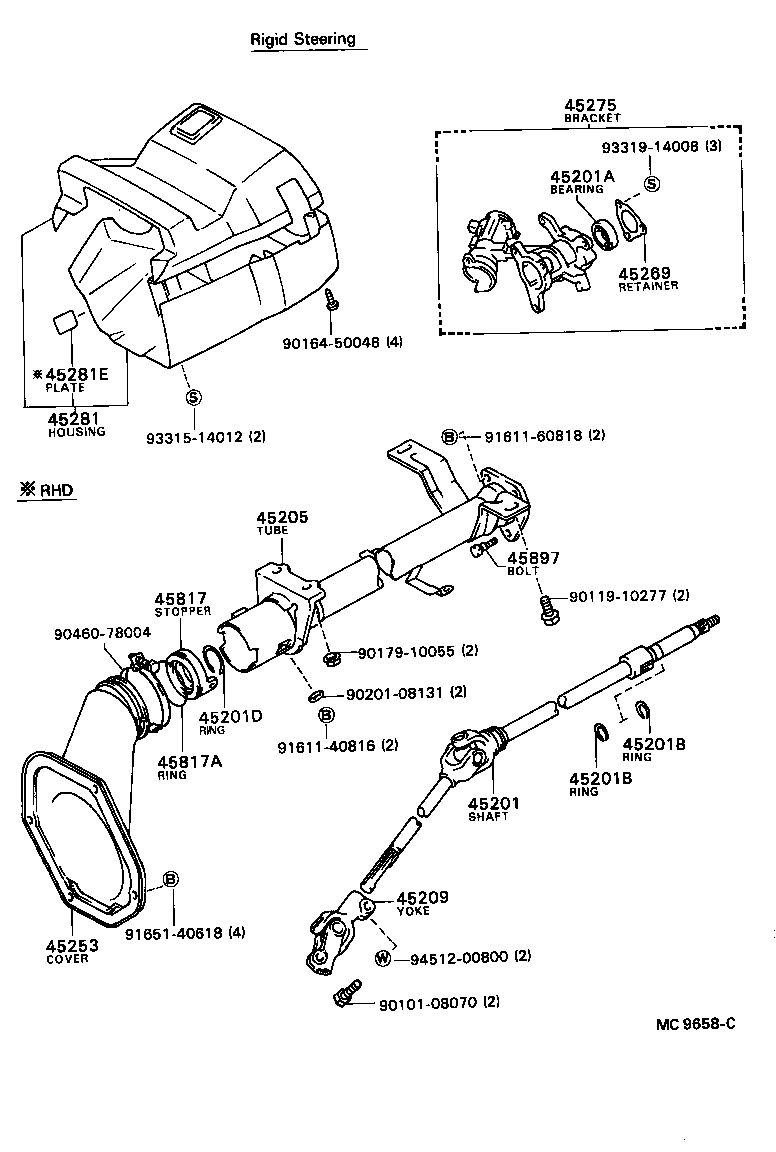

| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-12240 |
AE8#,CE80,EE80..RHD..(DX,GL,STD,XL)..GEN W/RIGID STEERING |
1 | ||
| 45210-12200 |
AE8#,CE80,EE80..RHD..(CSX,DX,GL,GT,SE,STD,XL) W/COLLAPSIBLE STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
AE8#,CE80,EE80 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE8#,CE80,EE80 T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
AE8#,CE80,EE80 T=1.35-1.45,T=1.4 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE8#,CE80,EE80 T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
AE8#,CE80,EE80 T=1.35-1.45,T=1.4 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
AE8#,CE80,EE80 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-12180 |
AE82..5D..GL..SA;AE82..RHD..GL..GEN;AE82..RHD..(DX,XL);AE80,CE80,EE80..RHD..(EUR,GEN,SA) W/COLLAPSIBLE STEERING |
1 | ||
| 45205-12210 |
AE8#,CE80,EE80..RHD..(DX,GL,STD,XL)..GEN W/RIGID STEERING |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32010 |
AE8#,CE80,EE80 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-12120 |
AE8#,CE80,EE80..RHD |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-10010 |
AE8#,CE80,EE80 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-12090 |
AE8#,CE80,EE80..RHD |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1293303 |
AE82..5D..GL..SA;AE82..RHD..GL..GEN;AE80,CE80,EE80..RHD;AE82..RHD..(CS,DX,S,XL) GRAY,GRAY,TRIM1# |
1 | ||
| 45286-1293302 |
AE82..DX..SA;AE82..5D..SA;AE80,CE80..RHD;AE82..RHD..GEN MAROON,RED/MAROON,TRIM3# |
1 | ||
| 45286-1293304 |
AE82..5D..GL..SA;AE82..4DS..DX..SA;AE80,CE80,EE80..(4DS,5D)..RHD;AE82..(4DS,5D)..RHD..(CS,GL,S,XL)..(ARL,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
AE8#,CE80,EE80..RHD |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45808-20020 |
AE8#,CE80,EE80 |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 96711-24056 |
AE8#,CE80,EE80 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AE8#,CE80,EE80 |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90119-10277 | ||||
| 90164-50048 | ||||
| 90179-10055 | ||||
| 90201-08131 | ||||
| 90460-78004 | ||||
| 91611-40816 | ||||
| 91611-60818 | ||||
| 91651-40618 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 94512-00800 | ||||
(8305- )DX,GL,STD,XL..EUR,GEN,SAA ; (8402-8605)DX,STD..SA ; (8402-8605)5D..GL..S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

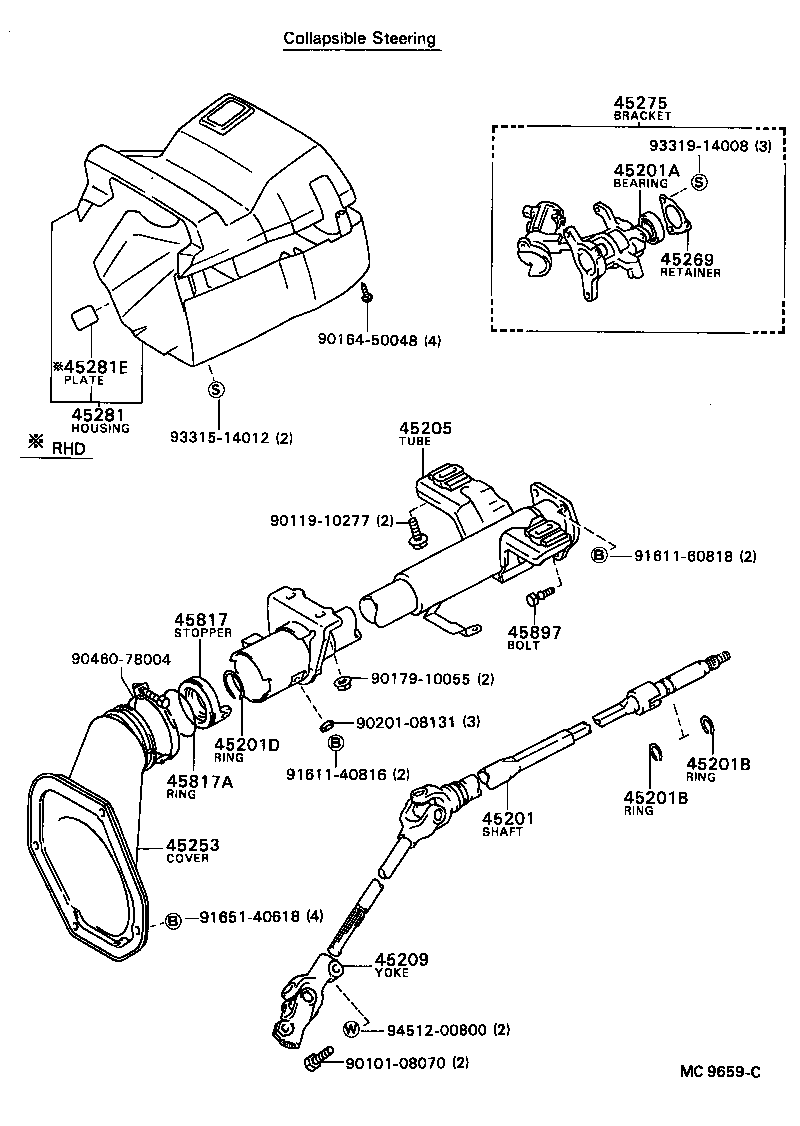

| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-12240 |
AE8#,CE80,EE80..RHD..(DX,GL,STD,XL)..GEN W/RIGID STEERING |
1 | ||
| 45210-12200 |
AE8#,CE80,EE80..RHD..(CSX,DX,GL,GT,SE,STD,XL) W/COLLAPSIBLE STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
AE8#,CE80,EE80 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE8#,CE80,EE80 T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
AE8#,CE80,EE80 T=1.35-1.45,T=1.4 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE8#,CE80,EE80 T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
AE8#,CE80,EE80 T=1.35-1.45,T=1.4 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
AE8#,CE80,EE80 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-12180 |
AE82..5D..GL..SA;AE82..RHD..GL..GEN;AE82..RHD..(DX,XL);AE80,CE80,EE80..RHD..(EUR,GEN,SA) W/COLLAPSIBLE STEERING |
1 | ||
| 45205-12210 |
AE8#,CE80,EE80..RHD..(DX,GL,STD,XL)..GEN W/RIGID STEERING |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32010 |
AE8#,CE80,EE80 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-12120 |
AE8#,CE80,EE80..RHD |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-10010 |
AE8#,CE80,EE80 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-12090 |
AE8#,CE80,EE80..RHD |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1293303 |
AE82..5D..GL..SA;AE82..RHD..GL..GEN;AE80,CE80,EE80..RHD;AE82..RHD..(CS,DX,S,XL) GRAY,GRAY,TRIM1# |
1 | ||
| 45286-1293302 |
AE82..DX..SA;AE82..5D..SA;AE80,CE80..RHD;AE82..RHD..GEN MAROON,RED/MAROON,TRIM3# |
1 | ||
| 45286-1293304 |
AE82..5D..GL..SA;AE82..4DS..DX..SA;AE80,CE80,EE80..(4DS,5D)..RHD;AE82..(4DS,5D)..RHD..(CS,GL,S,XL)..(ARL,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
AE8#,CE80,EE80..RHD |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45808-20020 |
AE8#,CE80,EE80 |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 96711-24056 |
AE8#,CE80,EE80 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AE8#,CE80,EE80 |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90119-10277 | ||||
| 90164-50048 | ||||
| 90179-10055 | ||||
| 90201-08131 | ||||
| 90460-78004 | ||||
| 91611-40816 | ||||
| 91611-60818 | ||||
| 91651-40618 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 94512-00800 | ||||
(8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-8605)GL,STD..SA ; (8411-8605)GT..SA ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

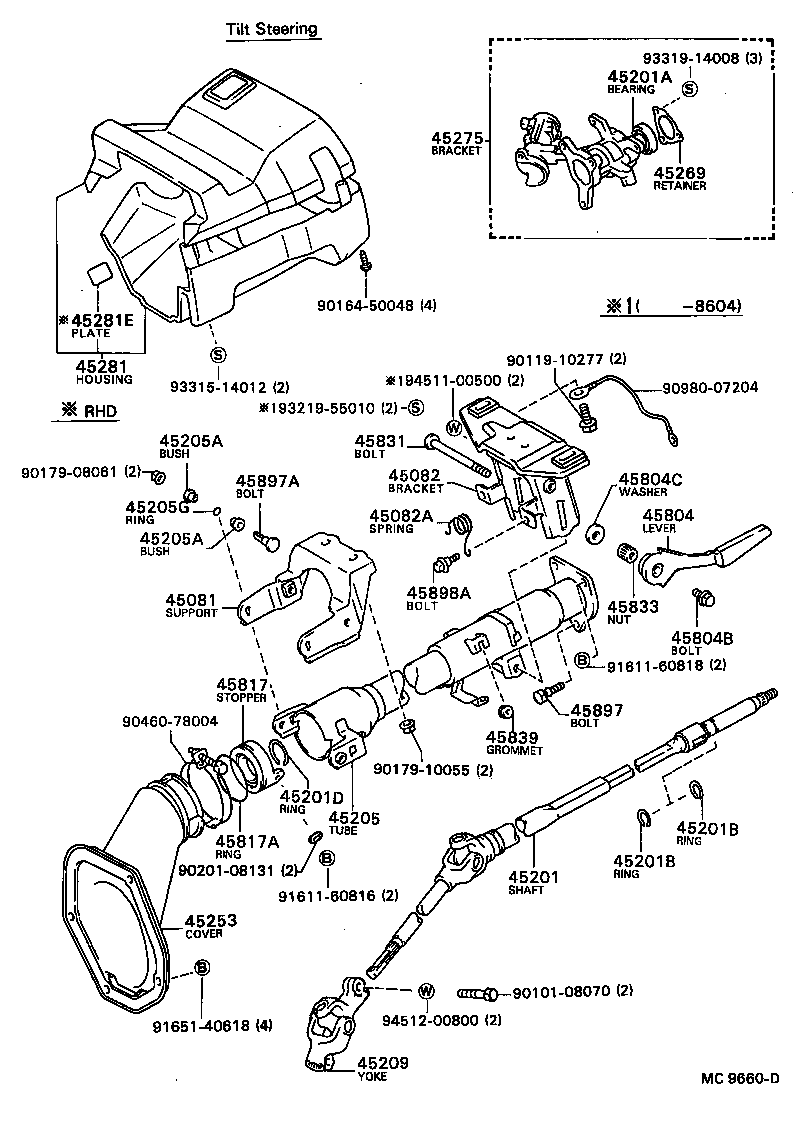

| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-12240 |
AE8#,CE80,EE80..RHD..(DX,GL,STD,XL)..GEN W/RIGID STEERING |
1 | ||
| 45210-12200 |
AE8#,CE80,EE80..RHD..(CSX,DX,GL,GT,SE,STD,XL) W/COLLAPSIBLE STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
AE8#,CE80,EE80 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE8#,CE80,EE80 T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
AE8#,CE80,EE80 T=1.35-1.45,T=1.4 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE8#,CE80,EE80 T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
AE8#,CE80,EE80 T=1.35-1.45,T=1.4 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
AE8#,CE80,EE80 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-12180 |
AE82..5D..GL..SA;AE82..RHD..GL..GEN;AE82..RHD..(DX,XL);AE80,CE80,EE80..RHD..(EUR,GEN,SA) W/COLLAPSIBLE STEERING |
1 | ||
| 45205-12210 |
AE8#,CE80,EE80..RHD..(DX,GL,STD,XL)..GEN W/RIGID STEERING |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32010 |
AE8#,CE80,EE80 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-12120 |
AE8#,CE80,EE80..RHD |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-10010 |
AE8#,CE80,EE80 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-12090 |
AE8#,CE80,EE80..RHD |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1293303 |
AE82..5D..GL..SA;AE82..RHD..GL..GEN;AE80,CE80,EE80..RHD;AE82..RHD..(CS,DX,S,XL) GRAY,GRAY,TRIM1# |
1 | ||
| 45286-1293302 |
AE82..DX..SA;AE82..5D..SA;AE80,CE80..RHD;AE82..RHD..GEN MAROON,RED/MAROON,TRIM3# |
1 | ||
| 45286-1293304 |
AE82..5D..GL..SA;AE82..4DS..DX..SA;AE80,CE80,EE80..(4DS,5D)..RHD;AE82..(4DS,5D)..RHD..(CS,GL,S,XL)..(ARL,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
AE8#,CE80,EE80..RHD |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45808-20020 |
AE8#,CE80,EE80 |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 96711-24056 |
AE8#,CE80,EE80 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AE8#,CE80,EE80 |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90119-10277 | ||||
| 90164-50048 | ||||
| 90179-08061 | ||||
| 90179-10055 | ||||
| 90201-08131 | ||||
| 90460-78004 | ||||
| 90980-07204 | ||||
| 91611-60816 | ||||
| 91611-60818 | ||||
| 91651-40618 | ||||
| 93219-55010 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 94511-00500 | ||||
| 94512-00800 | ||||
