AE80R-ELMDS (1983)
Toyota Corolla Sed/Lb
(8305- )2AL#,4AL#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

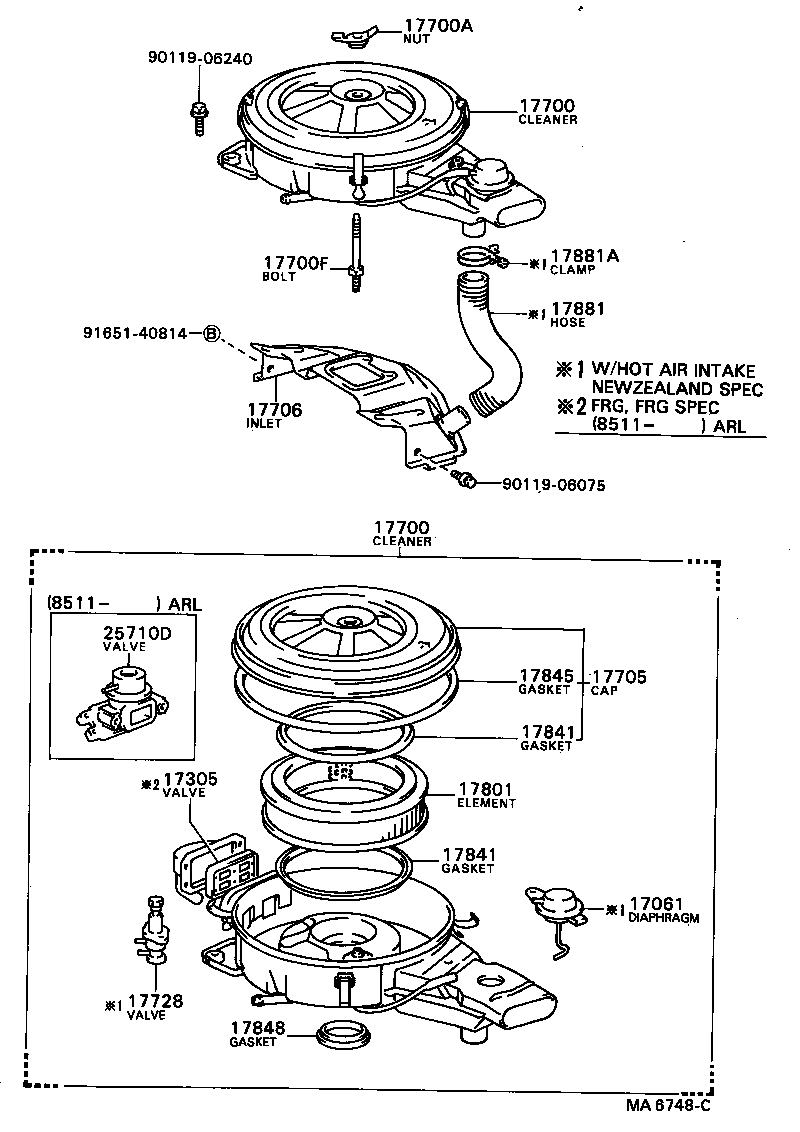

| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-15030 |
2AL#,4AL#..AE8#..ARL,EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-16070 |
2AL,4AL..AE8#..GEN W/HOT AIR INTAKE |
1 | ||
| 17700-16050 |
2AL,4AL..AE8#..GEN,SA,SAA |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-16070 |
2AL,4AL..AE8#..GEN W/HOT AIR INTAKE |
1 | ||
| 17700-16050 |
2AL,4AL..AE8#..GEN,SA,SAA |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
2AL#,4AL#..AE8# |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06039 |
2AL#,4AL#..AE8# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-16050 |
2AL#,4AL#..AE8# |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17902-16020 |
2AL,4AL..AE8# |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-24010 |
2AL,4AL..AE8#..GEN W/HOT AIR INTAKE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-15010 |
2AL#,4AL#..AE8# |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-15010 |
2AL#,4AL#..AE8# |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-15010 |
2AL#,4AL#..AE8# |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-61011 |
2AL#,4AL#..AE8# *G,L=1060 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-63001 |
2AL#,4AL#..AE8# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-63010 |
2AL#,4AL#..AE8#..ARL,EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
2AL#,4AL#..AE8#..ARL,EUR,GEN W/HOT AIR INTAKE |
1 | ||
| Common parts | ||||
| 90119-06075 | ||||
| 90119-06240 | ||||
| 91651-40814 | ||||
(8305- )2AL#,4AL#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

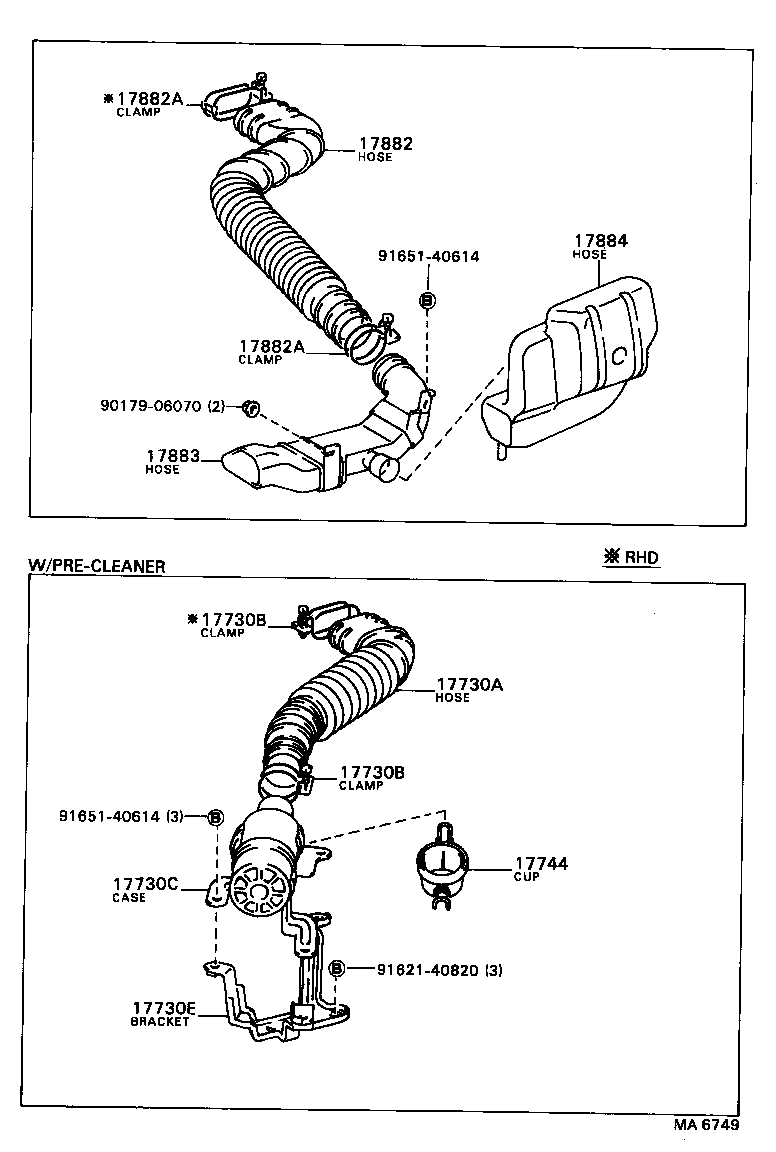

| 17730A - HOSE, PRECLEANER | ||||
| 17881-16050 |
2AL,4AL..AE8#..GEN,SAA W/PRE-CLEANER |
1 | ||
| 17730B - CLAMP, HOSE(FOR PRECLEANER HOSE) | ||||
| 96111-10600 |
2AL,4AL..AE8#..GEN,SAA PRE-CLEANER SIDE |
1 | ||
| 90460-01005 |
2AL,4AL..AE8#..RHD..GEN AIR CLEANER SIDE |
1 | ||
| 17730B - CLAMP, HOSE(FOR PRECLEANER HOSE) | ||||
| 96111-10600 |
2AL,4AL..AE8#..GEN,SAA PRE-CLEANER SIDE |
1 | ||
| 90460-01005 |
2AL,4AL..AE8#..RHD..GEN AIR CLEANER SIDE |
1 | ||
| 17730C - CASE, PRECLEANER | ||||
| 17736-16020 |
2AL,4AL..AE8#..GEN,SAA W/PRE-CLEANER |
1 | ||
| 17730E - BRACKET, PRECLEANER, NO.1 | ||||
| 17741-16010 |
2AL,4AL..AE8#..GEN,SAA W/PRE-CLEANER |
1 | ||
| 17744 - CUP, PRECLEANER | ||||
| 17744-16010 |
2AL,4AL..AE8#..GEN,SAA W/PRE-CLEANER |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17881-12060 |
2AL#,4AL#..AE8# |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01005 |
2AL#,4AL#..AE8#..RHD AIR CLEANER SIDE |
1 | ||
| 96111-10650 |
2AL#,4AL#..AE8# BODY SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01005 |
2AL#,4AL#..AE8#..RHD AIR CLEANER SIDE |
1 | ||
| 96111-10650 |
2AL#,4AL#..AE8# BODY SIDE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17882-12020 |
2AL#,4AL#..AE8# |
1 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17883-12020 |
2AL#,4AL#..AE8# |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 91621-40820 | ||||
| 91651-40614 | ||||
