AE80R-ELHNSW (1983)
Toyota Corolla Sed/Lb
Production
May 1983
-
Oct 1984
Engine
2AL
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )2AL,4AL..EUG ; (8509- )4AL

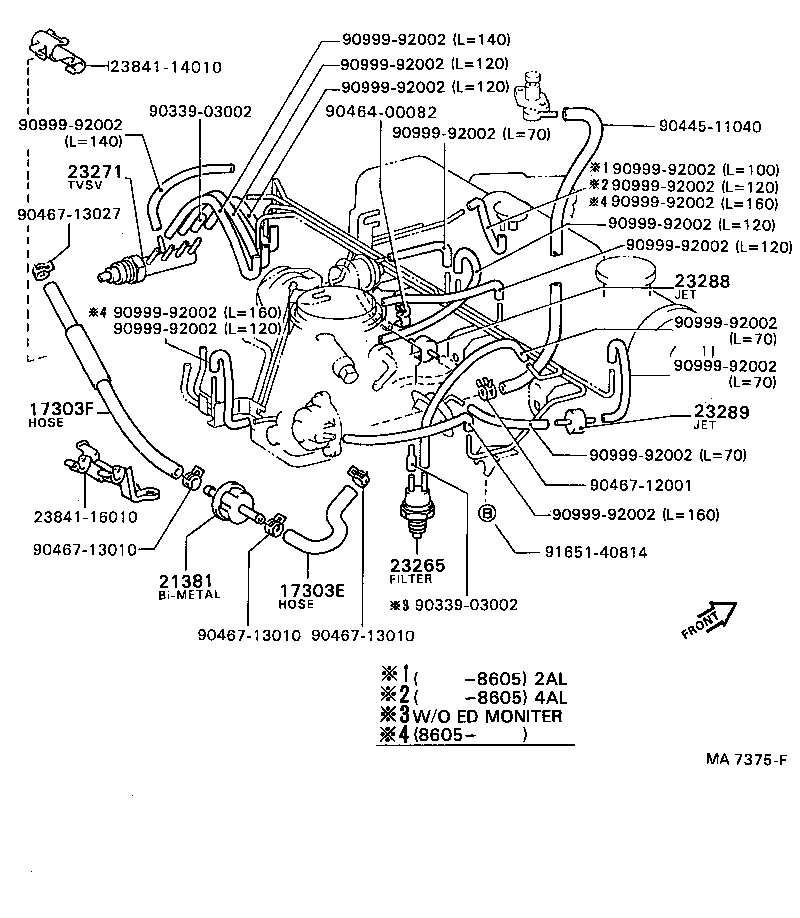

Click highlighted areas on diagram
(8509- )NEW ZEALAND SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 77791-12040 |
2AL,4AL..AE8# |
1 | ||
| 17303F - HOSE, NO.2(FOR AIR PIPE) | ||||
| 90447-14010 |
2AL,4AL..AE8# |
1 | ||
| 21381 - BIMETAL, THERMOSTATIC | ||||
| 21381-71010 |
2AL#,4AL..AE8#;4ALC..AE82..ARL;4ALC..AE82..SDZ |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02076 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04003 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
1 | ||
| 23289 - JET, NO.2 | ||||
| 90925-04005 |
2AL,4AL..AE8#..EUG |
1 | ||
| Common parts | ||||
| 23841-14010 | ||||
| 23841-16010 | ||||
| 90339-03002 | ||||
| 90445-11040 | ||||
| 90464-00082 | ||||
| 90467-12001 | ||||
| 90467-13010 | ||||
| 90467-13027 | ||||
| 90999-92002 | ||||
| 91651-40814 | ||||
(8305- )2AL#,4AG#,4AL#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
