AE80R-EEMDS (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Oct 1984
Engine 2AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

Click highlighted areas on diagram

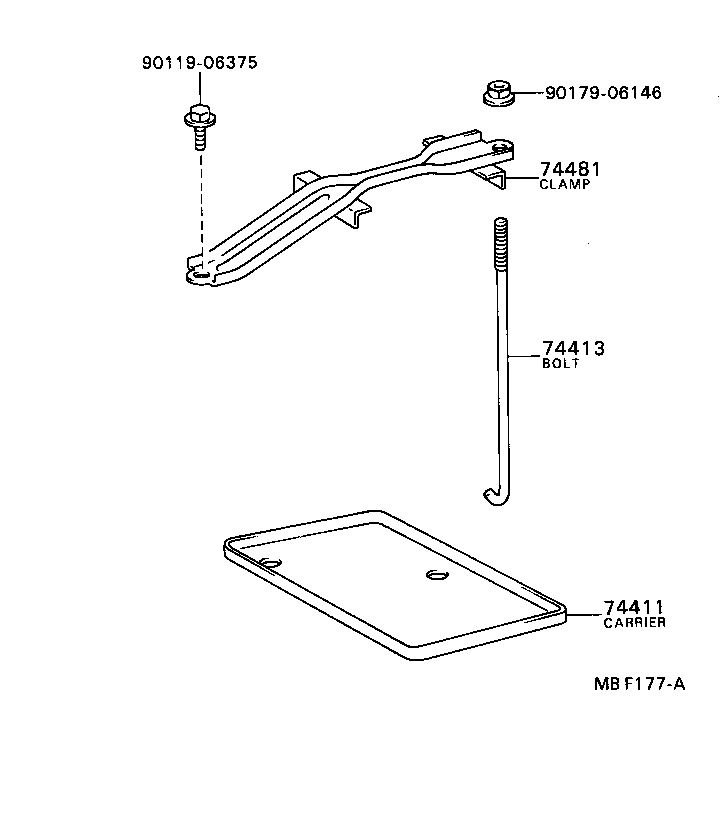

diagram 74411 74413 74481 9011906375 9017906146
Part # Description Qty Price
74411 - CARRIER, BATTERY
74431-14010

AE8#,EE80..ARL,GEN,SAA

NS40SL,NS40ZAL,28B19L,34B19L

 1
74431-14020

EE80..4DS,5D;AE80..DX,GL,STD;AE82..(DX,GL)..(GEN,SA);AE82..(DX,GL)..(EUG,FRG);EE80..(3DS,5DS)..(GEN,SA);EE80..(3DS,5DS)..(EUG,FRG);AE82..(GT,SE,STD,XL)..(EUR,GEN,SA)

N40L,32C24L

 1
74413 - BOLT, BATTERY CLAMP
74451-16010

AE8#,CE80,EE80

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-12220

AE8#,EE80..ARL,GEN,SAA

NS40SL,NS40ZAL,28B19L,34B19L

 1
74404-12240

EE80..4DS,5D;AE80..DX,GL,STD;AE82..(DX,GL)..(GEN,SA);AE82..(DX,GL)..(EUG,FRG);EE80..(3DS,5DS)..(GEN,SA);EE80..(3DS,5DS)..(EUG,FRG);AE82..(GT,SE,STD,XL)..(EUR,GEN,SA)

N40L,32C24L

 1
Common parts
90119-06375
90179-06146
