AE80R-EEMDS (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Oct 1984
Engine 2AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

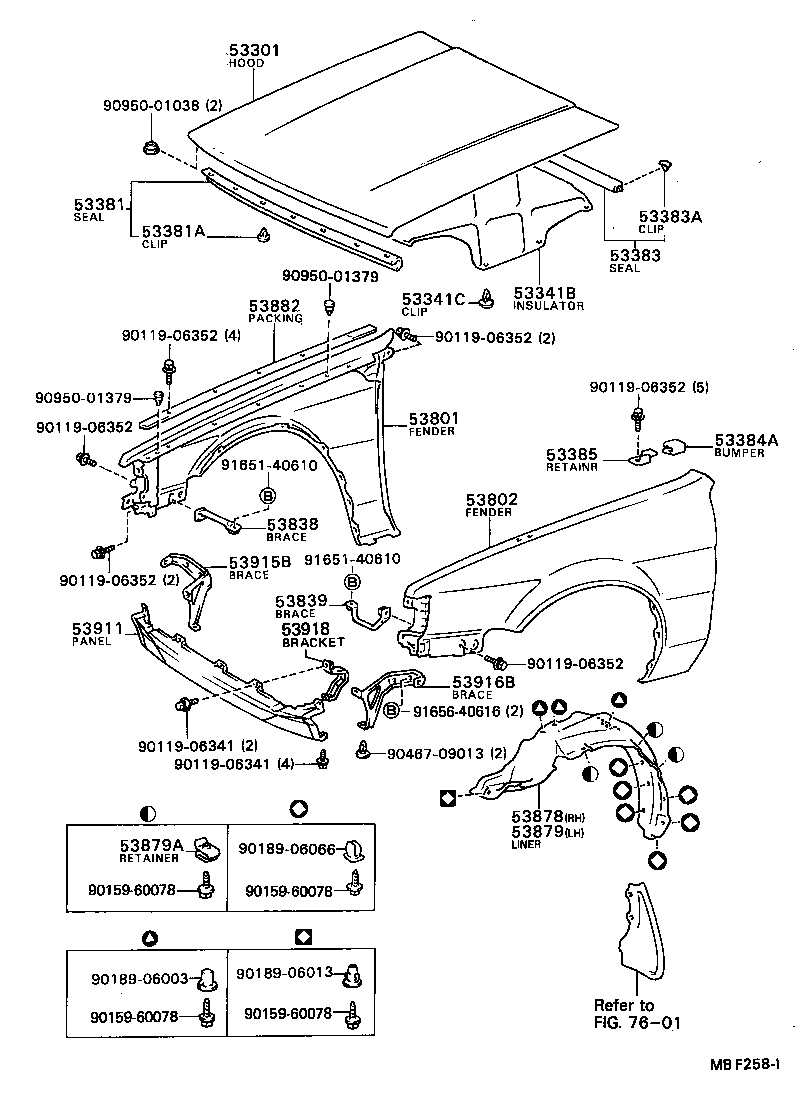

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53381 53381A 53383 53383A 53384A 53385 53801 53802 53838 53839 53878 53879 53879A 53882 53911 53915B 53916B 53918 7601 9011906341 9011906341 9011906352 9011906352 9011906352 9011906352 9011906352 9011906352 9015960078 9015960078 9015960078 9015960078 9018906003 9018906013 9018906066 9046709013 9095001038 9095001379 9095001379 9165140610 9165140610 9165640616
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-12530

AE8#,CE80..EUR,GEN,SA

 1
53301-12420

AE8#,CE80

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-12130

AE8#,CE80,EE80

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

AE8#,CE80,EE80

 7
53383 - SEAL, HOOD TO COWL TOP
53383-12060

AE8#,CE80,EE80

 1
53383A - CLIP(FOR HOOD TO COWL TOP SEAL)
90467-08030

AE8#,CE80,EE80

 8
53384A - BUMPER, FENDER TO HOOD
53384-14030

AE8#,CE80,EE80

 4
53385 - RETAINER, HOOD, BUMPER
53385-14010

AE8#,CE80,EE80

RH

 2
53386-14010

AE8#,CE80,EE80

LH

 2
53801 - FENDER SUB-ASSY, FRONT RH
53801-1A870

AE8#,CE80..GEN,SAA

 1
53801-1A780

AE8#,CE80,EE80..(CS,CSX,DX,GL,S,STD,XL)..(ARL,GEN,SA)

*GIS

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-1A800

AE8#,CE80,EE80..(CS,CSX,DX,GL,S,STD,XL)..(ARL,GEN,SA)

*GIS

 1
53802-1A870

AE8#,CE80..GEN,SAA

 1
53838 - BRACE, FRONT FENDER, RH
53835-12040

AE8#,CE80,EE80

 1
53839 - BRACE, FRONT FENDER, LH
53836-12020

AE8#,CE80,EE80

 1
53878 - LINER, FRONT FENDER, RH
53875-12080

AE8#,CE80

 1
53879 - LINER, FRONT FENDER, LH
53876-12080

AE8#,CE80

 1
53879A - RETAINER, FRONT FENDER LINER
53879-14010

AE8#,CE80,EE80

 6
53882 - PACKING, FRONT FENDER MAIN
53882-12070

AE8#,CE80,EE80

 2
Common parts
90119-06341
90119-06352
90159-60078
90189-06003
90189-06013
90189-06066
90467-09013
90950-01038
90950-01379
91651-40610
91656-40616
Linked diagrams
7601
