Toyota Corolla sed/lb AE80 SWITCH & RELAY & COMPUTER

Manufacturers Home
Toyota
GR
COROLLA SED/LB
AE80R-EEKRS (1983)
8401 - SWITCH & RELAY & COMPUTER

AE80R-EEKRS (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Oct 1984

Engine 2AL

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8305- )AE8#

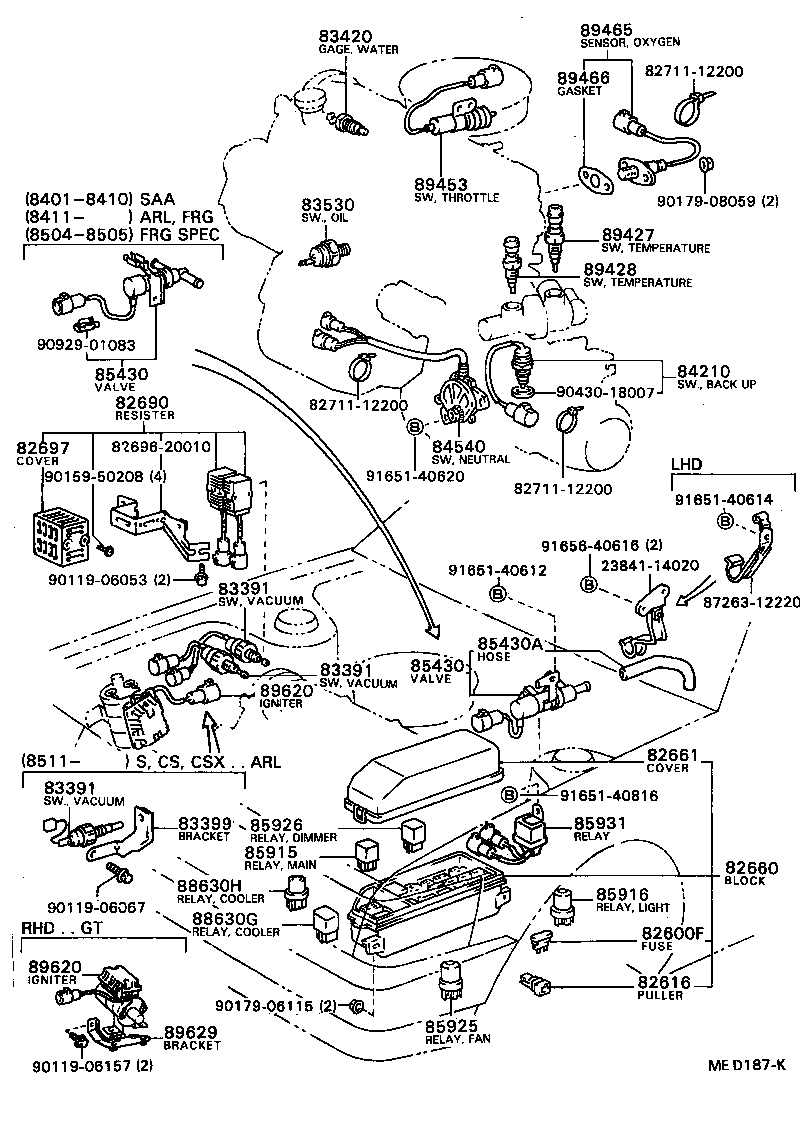

Click highlighted areas on diagram

Part #	Description	Period	Qty
82600F - FUSE, FUSE BLOCK
90982-09002	AE8#,CE80,EE80 10A,10A	05/1983 - 07/1988	12
90982-07011	AE8#,CE80,EE80 30A,GREEN,30A	05/1983 - 07/1988	1
90982-09004	AE8#,CE80,EE80 20A,YELLOW,20A	05/1983 - 07/1988	2
90982-09003	AE8#,CE80,EE80 15A,15A	05/1983 - 07/1988	11
90982-09005	AE8#,CE80,EE80 7.5A,7.5A	05/1983 - 07/1988	7
82616 - PULLER, FUSE
82616-12020	AE8#,CE80,EE80	05/1983 - 07/1988	1
82660 - BLOCK ASSY, RELAY, ENGINE ROOM
82660-12150	AE8#,CE80	05/1983 - 08/1984	1
82660-12160	AE8#,CE80..GEN,SAA	08/1984 - 09/1984	1
82661 - COVER, RELAY BLOCK, NO.1
82661-12090	AE8#,CE80,EE80..RHD COWL SIDE	05/1983 - 07/1988	1
82661-12040	AE8#,CE80..GEN,SAA ENGINE ROOM	08/1984 - 09/1984	1
82661-12070	AE8#,CE80 ENGINE ROOM	05/1983 - 08/1984	1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020	AE8#,CE80	05/1983 - 01/1988	1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-12040	AE8#,EE80	05/1983 - 02/1985	1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-60021	AE8#,CE80,EE80..MTM	05/1983 - 07/1988	1
85430 - VALVE, OUTER VENT CONTROL
85430-12081	AE8#	05/1983 - 01/1984	1
85430 - VALVE, OUTER VENT CONTROL
85430-12081	AE8#	05/1983 - 01/1984	1
85430A - HOSE
23829-14010	AE8#	05/1983 - 01/1984	1
85915 - RELAY, MAIN
85913-30020	AE8#,CE80,EE80	05/1983 - 07/1988	1
85916 - RELAY, LIGHT CONTROL
90987-01003	AE8#,CE80,EE80 TAIL & HEAD	05/1983 - 07/1988	2
85925 - RELAY, RADIATOR FAN
90987-03001	AE8#,CE80,EE80	05/1983 - 07/1988	1
88630G - RELAY ASSY, COOLER
88630-32010	AE8#,CE80,EE80..ARL,GEN,SA,SAA	05/1983 - 07/1988	1
88630H - RELAY ASSY, COOLER
90987-02004	AE8#,CE80,EE80..ARL,GEN,SA,SAA	05/1983 - 07/1988	1
89428 - SWITCH, TEMPERATURE DETECT, NO.2
89428-15011	AE8#	05/1983 - 07/1988	1
Common parts
23841-14020
82696-20010
82711-12200
87263-12220
90119-06053
90119-06067
90119-06157
90159-50208
90179-06115
90179-08059
90430-18007
90929-01083
91651-40612
91651-40614
91651-40620
91651-40816
91656-40616

(8305-8505) ; (8505-8605)ARL,SA

Click highlighted areas on diagram

Part #	Description	Period	Qty
81944 - CORD, OPTICAL FIBER
81944-12010	AE8#,CE80,EE80	05/1983 - 07/1988	1
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-19485	AE8#,CE80,EE80..RHD..(DX,S,STD,XL)	05/1983 - 03/1986	1
84118 - KNOB, LIGHT CONTROL RHEOSTAT
84118-20011	AE8#,CE80,EE80..EUR,GEN,SAA	05/1983 - 07/1987	1
84119 - RHEOSTAT, LIGHT CONTROL
84119-12070	AE8#,CE80,EE80..EUR,GEN,SAA	05/1983 - 07/1987	1
84119 - RHEOSTAT, LIGHT CONTROL
84119-12070	AE8#,CE80,EE80..EUR,GEN,SAA	05/1983 - 07/1987	1
84119A - BOLT OR NUT, RHEOSTAT CONTROL SET
90984-01007	AE8#,CE80,EE80..EUR,GEN,SAA	05/1983 - 07/1987	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-19225	AE8#,CE80,EE80..RHD..(DX,S,STD,XL)	05/1983 - 03/1986	1
84310 - SWITCH ASSY, TURN SIGNAL
84310-12560	AE8#,CE80,EE80..RHD..(DX,S,STD,XL)	05/1983 - 03/1986	1
84312 - PLATE, HORN CONTACT
84312-32010	AE8#,CE80,EE80..RHD..(DX,S,STD,XL)	05/1983 - 03/1986	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-19195	AE8#,CE80,EE80..RHD..(DX,S,STD,XL)	05/1983 - 03/1986	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-12120	AE8#,CE80,EE80	05/1983 - 10/1986	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-80001	AE8#,CE80,EE80..RHD..(DX,S,STD,XL)	05/1983 - 03/1986	1
84660C - SWITCH, COOLER
84660-12050	AE8#,CE80,EE80..RHD..(ARL,GEN,SA)	05/1983 - 07/1988	1
84730 - SWITCH ASSY, HEATER BLOWER
84732-12110	AE8#,CE80,EE80..EUR,GEN,SA,SAA	05/1983 - 04/1988	1
84730B - BULB, HEATER BLOWER SWITCH
90981-11014	AE8#,CE80,EE80..EUR,GEN,SA,SAA 14V 1.4W,12V 1.4W	05/1983 - 04/1988	1
84763 - PLATE, SWITCH
84763-12030	AE8#,CE80,EE80..GEN,SAA	05/1983 - 05/1985	2
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-12140	AE8#,CE80,EE80..EUR,GEN,SAA	05/1983 - 05/1985	1
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-12140	AE8#,CE80,EE80..EUR,GEN,SAA	05/1983 - 05/1985	1
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84999-10170	AE8#,CE80,EE80..EUR,GEN,SAA 12V 1.12W,12V 1.12W	05/1983 - 07/1987	1
85500 - LIGHTER ASSY, CIGARETTE
85500-12180	AE8#,CE80	05/1983 - 11/1983	1
85500B - BULB, CIGARETTE LIGHTER
90981-11014	AE8#,CE80,EE80 14V 1.4W,12V 1.4W	05/1983 - 07/1988	1
85533 - LENS, CIGARETTE LIGHTER INDICATOR
85533-20011	AE8#,CE80,EE80..EUR,GEN,SA,SAA	05/1983 - 04/1988	1
88607C - LAMP SUB-ASSY, INDICATOR
88607-12010	AE8#,CE80,EE80..ARL,GEN,SA,SAA	05/1983 - 07/1988	2
Common parts
82711-20300
90149-40013
90463-15402
93315-14012
93319-15012
93568-14512

(8305- )

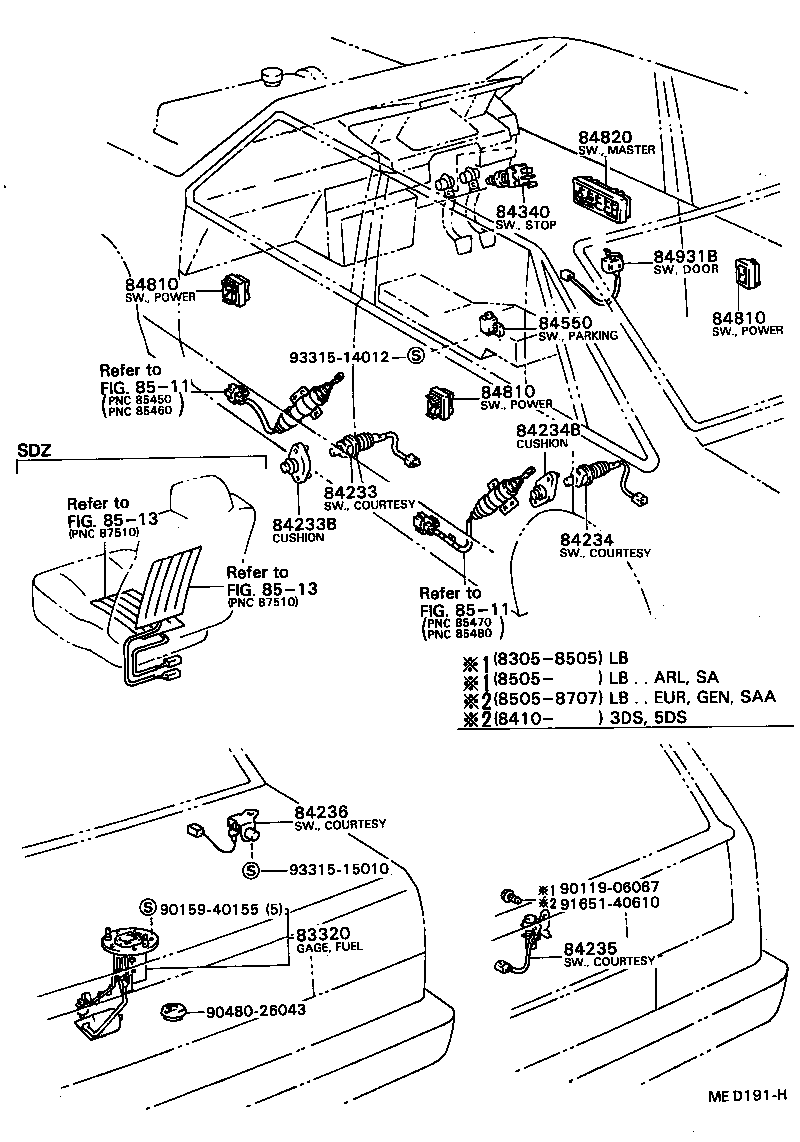

Click highlighted areas on diagram

Part #	Description	Period	Qty
83320 - GAGE ASSY, FUEL SENDER
83320-19695	AE8#,EE80..STD..(EUR,GEN,SAA)	05/1983 - 07/1987	1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84230-12120	AE8#,CE80,EE80	05/1983 - 07/1988	2
84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR)
84234-22010	AE8#,CE80,EE80	05/1983 - 07/1988	2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84230-12120	AE8#,CE80,EE80..4DS,5D,5DS	05/1983 - 07/1988	2
84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR)
84234-22010	AE8#,CE80,EE80..4DS,5D,5DS	05/1983 - 07/1988	2
84340 - SWITCH ASSY, STOP LAMP
84340-32010	AE8#,CE80,EE80..EUR,GEN,SA,SAA	05/1983 - 04/1988	1
84550 - SWITCH ASSY, PARKING BRAKE
84550-12060	AE8#,CE80,EE80	05/1983 - 07/1988	1
Common parts
90119-06067
90159-40155
90480-26043
91651-40610
93315-14012
93315-15010
Linked diagrams
8511
8513

(8305- )

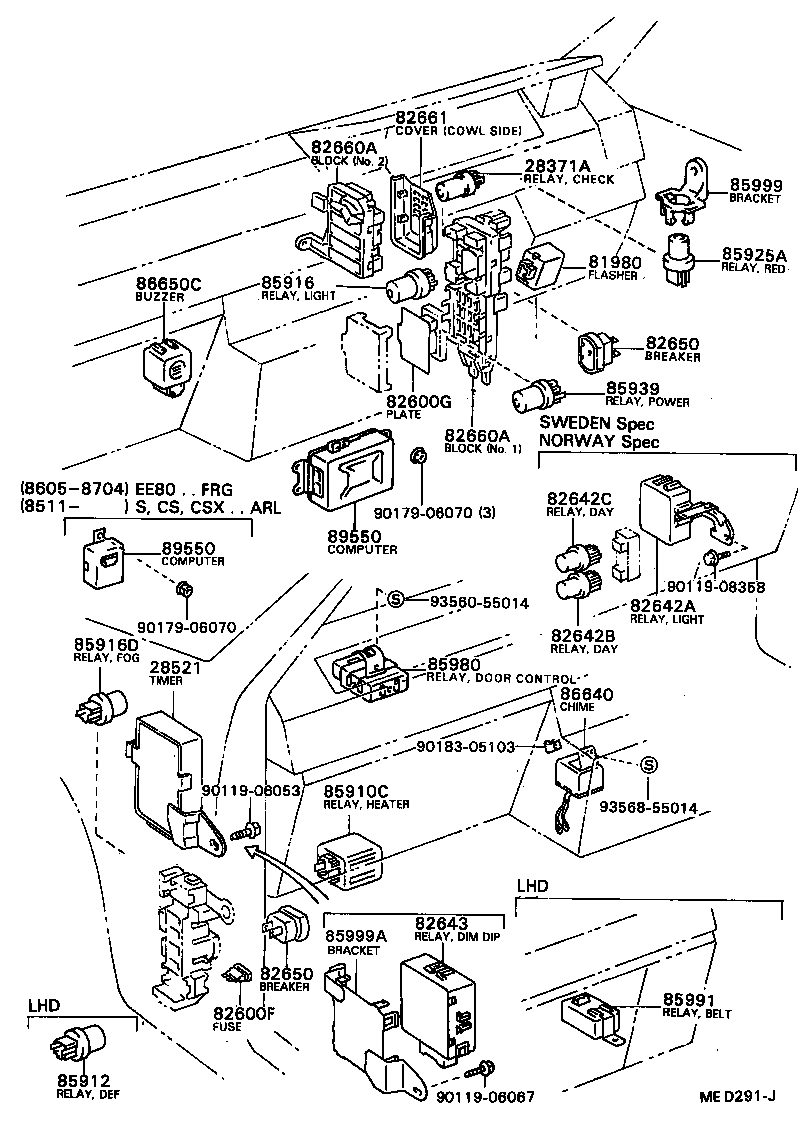

Click highlighted areas on diagram

Part #	Description	Period	Qty
81980 - FLASHER ASSY, TURN SIGNAL
81980-22070	AE8#,CE80,EE80	05/1983 - 01/1986	1
82600F - FUSE, FUSE BLOCK
90982-09002	AE8#,CE80,EE80 10A,10A	05/1983 - 07/1988	12
90982-07011	AE8#,CE80,EE80 30A,GREEN,30A	05/1983 - 07/1988	1
90982-09004	AE8#,CE80,EE80 20A,YELLOW,20A	05/1983 - 07/1988	2
90982-09003	AE8#,CE80,EE80 15A,15A	05/1983 - 07/1988	11
90982-09005	AE8#,CE80,EE80 7.5A,7.5A	05/1983 - 07/1988	7
82600G - PLATE, CAUTION(FOR FUSE)
82683-12040	AE8#,CE80,EE80..RHD..(EUR,GEN,SA)	05/1983 - 04/1988	1
82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1
82650-12010	AE8#,CE80,EE80..RHD 20A,TOKAIRIKA	05/1983 - 07/1988	1
82650-35010	AE8#,CE80,EE80..RHD 20A,20A,MATSUSHITA	05/1983 - 07/1988	1
82650-20011	AE8#,CE80,EE80 30A,30A	05/1983 - 07/1988	3
82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1
82650-12010	AE8#,CE80,EE80..RHD 20A,TOKAIRIKA	05/1983 - 07/1988	1
82650-35010	AE8#,CE80,EE80..RHD 20A,20A,MATSUSHITA	05/1983 - 07/1988	1
82650-20011	AE8#,CE80,EE80 30A,30A	05/1983 - 07/1988	3
82660A - BLOCK ASSY, RELAY, COWL SIDE
82660-12200	AE8#,CE80,EE80..RHD NO.2	05/1983 - 07/1988	1
82660-12130	AE8#,CE80 NO.1	05/1983 - 02/1984	1
82660A - BLOCK ASSY, RELAY, COWL SIDE
82660-12200	AE8#,CE80,EE80..RHD NO.2	05/1983 - 07/1988	1
82660-12130	AE8#,CE80 NO.1	05/1983 - 02/1984	1
82661 - COVER, RELAY BLOCK, NO.1
82661-12090	AE8#,CE80,EE80..RHD COWL SIDE	05/1983 - 07/1988	1
82661-12040	AE8#,CE80..GEN,SAA ENGINE ROOM	08/1984 - 09/1984	1
82661-12070	AE8#,CE80 ENGINE ROOM	05/1983 - 08/1984	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
85913-30020	AE8#,CE80,EE80	05/1983 - 07/1988	1
85916 - RELAY, LIGHT CONTROL
90987-01003	AE8#,CE80,EE80 TAIL & HEAD	05/1983 - 07/1988	2
Common parts
90119-06053
90119-06067
90119-08358
90179-06070
90183-05103
93560-55014
93568-55014

AE80R-EEKRS (1983)

(8305- )AE8#

(8305-8505) ; (8505-8605)ARL,SA

(8305- )

(8305- )
