AE80R-EEHNSW (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Oct 1984
Engine 2AL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )4DS

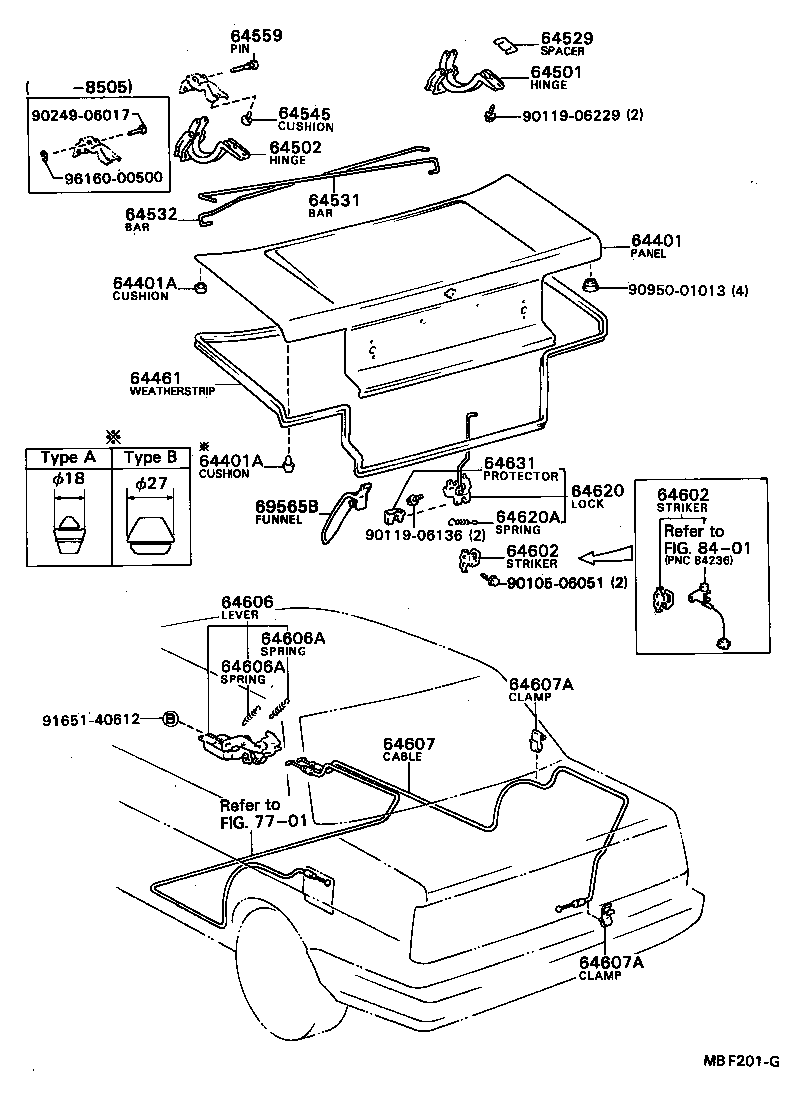

Click highlighted areas on diagram

diagram 64401 64401A 64401A 64461 64501 64502 64529 64531 64532 64545 64559 64602 64602 64606 64606A 64606A 64607 64607A 64607A 64620 64620A 64631 69565B 7701 8401 9010506051 9011906136 9011906229 9024906017 9095001013 9165140612 9616000500
Part # Description Qty Price
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-12640

AE8#,CE80..4DS..(EUR,GEN,SAA)

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-09041

AE8#,CE80,EE80..4DS

RR,OD=18,TYPE A

 2
90541-07003

AE8#,CE80,EE80..4DS

FR

 2
90541-19001

AE8#,CE80,EE80..4DS

RR,OD=27,TYPE B

 2
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-09041

AE8#,CE80,EE80..4DS

RR,OD=18,TYPE A

 2
90541-07003

AE8#,CE80,EE80..4DS

FR

 2
90541-19001

AE8#,CE80,EE80..4DS

RR,OD=27,TYPE B

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-12250

AE8#,CE80,EE80..4DS

 1
64501 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-12170

AE8#,CE80,EE80..4DS

 1
64502 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH
64520-12160

AE8#,CE80,EE80..4DS

 1
64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64529-20010

AE8#,CE80,EE80..4DS

 4
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-12160

AE8#,CE80,EE80..4DS..(EUR,GEN,SA,SAA)

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-12150

AE8#,CE80,EE80..4DS..(EUR,GEN,SA,SAA)

 1
64545 - CUSHION, LUGGAGE DOOR HINGE
90541-07007

AE8#,CE80,EE80..4DS

 2
64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK
64620-12070

AE8#,CE80,EE80..4DS..GL..(EUR,GEN)

 1
64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK
64620-12070

AE8#,CE80,EE80..4DS..GL..(EUR,GEN)

 1
64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-12070

AE8#,CE80..4DS..(EUR,GEN,SAA)

 1
64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
90506-08001

AE8#,CE80,EE80..4DS

 1
64631 - PROTECTOR, LUGGAGE DOOR LOCK
64631-12010

AE8#,CE80..4DS..EUR

 1
69565B - FUNNEL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER
69565-12010

AE8#,CE80,EE80..4DS

 1
Common parts
90105-06051
90119-06136
90119-06229
90249-06017
90950-01013
91651-40612
96160-00500
