Toyota Corolla sed/lb AE80 ACCELERATOR LINK

AE80R-EEHNS (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Oct 1984

Engine 2AL

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

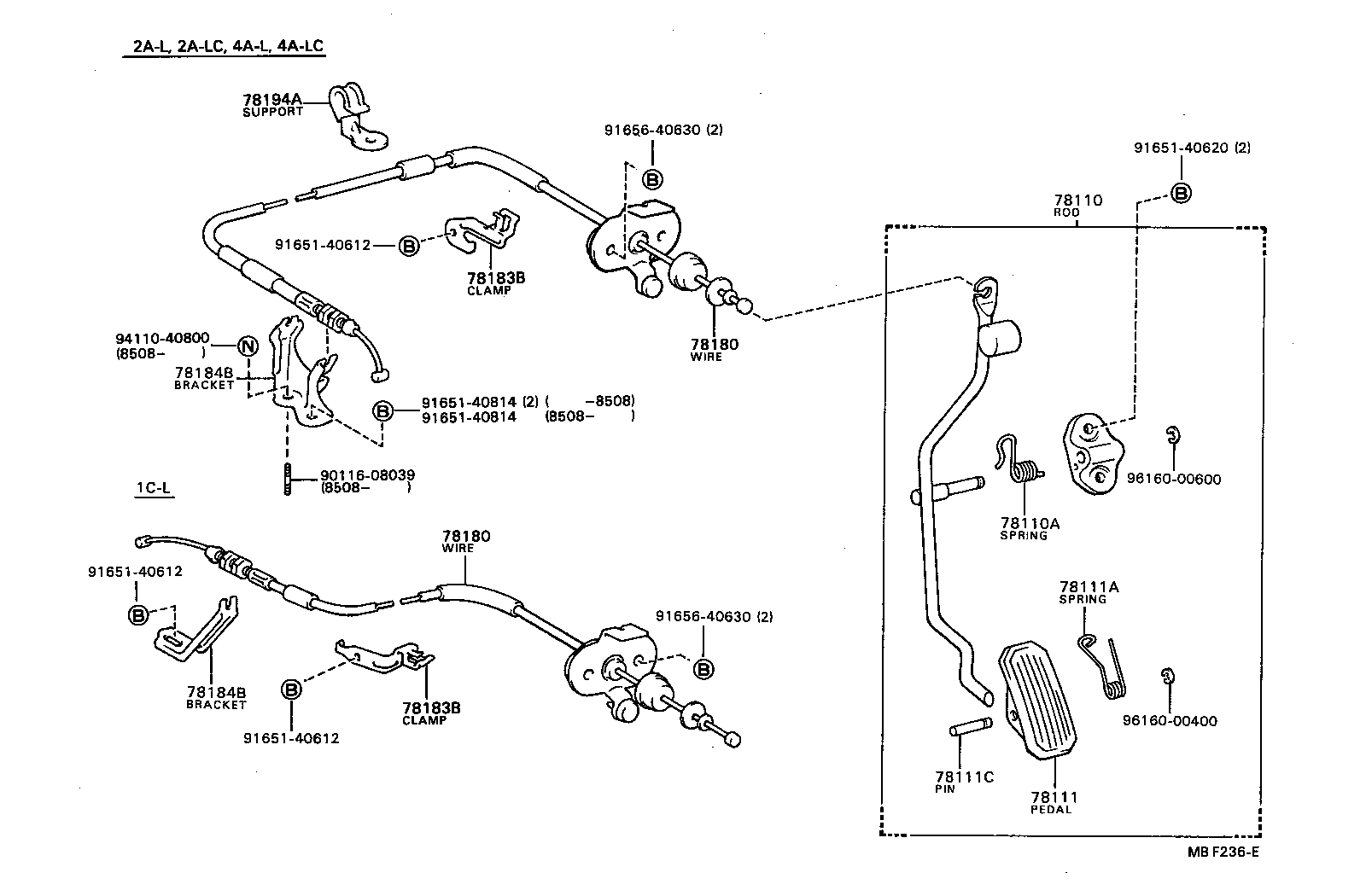

Click highlighted areas on diagram

Part #	Description	Period	Qty
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-12020	AE8#,EE80..RHD..(CS,CSX,DX,GL,S,SE,STD,XL)	05/1983 - 07/1988	1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18025	EE80..RHD;EE80..LHD..GEN;AE80..ARL,EUR,GEN,SA;AE82,EE80..LHD..(DX,GL,STD)..(EUG,SDZ);AE82..(CS,CSX,DX,GL,S,SE,STD,XL)..(ARL,GEN,SA)	05/1983 - 07/1988	1
78111 - PEDAL, ACCELERATOR
78111-32010	AE8#,CE80,EE80	05/1983 - 07/1988	1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-20056	AE8#,CE80,EE80	05/1983 - 07/1988	1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001	AE8#,CE80,EE80	05/1983 - 07/1988	1
78180 - WIRE ASSY, ACCELERATOR
78180-12570	AE8#..RHD..(CS,CSX,DX,GL,S,SE,STD,XL)	05/1983 - 07/1988	1
78180 - WIRE ASSY, ACCELERATOR
78180-12570	AE8#..RHD..(CS,CSX,DX,GL,S,SE,STD,XL)	05/1983 - 07/1988	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-12050	AE8#..RHD..(CS,CSX,DX,GL,S,SE,STD,XL)	05/1983 - 07/1988	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-12050	AE8#..RHD..(CS,CSX,DX,GL,S,SE,STD,XL)	05/1983 - 07/1988	1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-12160	AE8#..CS,CSX,DX,GL,S,SE,STD,XL	05/1983 - 07/1988	1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-12160	AE8#..CS,CSX,DX,GL,S,SE,STD,XL	05/1983 - 07/1988	1
78194A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.4
78194-12020	AE8#..RHD..(CS,CSX,DX,GL,S,SE,STD,XL)	05/1983 - 07/1988	1
Common parts
90116-08039
91651-40612
91651-40620
91651-40814
91656-40630
94110-40800
96160-00400
96160-00600

Click highlighted areas on diagram

Part #	Description	Period	Qty
78310 - CABLE ASSY, CHOKE
84506-12020	AE80..RHD..(GEN,SA)	05/1983 - 05/1985	1
78310 - CABLE ASSY, CHOKE
84506-12020	AE80..RHD..(GEN,SA)	05/1983 - 05/1985	1
78310A - GROMMET, CHOKE CABLE
90480-13055	AE80..GEN,SAA	05/1983 - 01/1984	1
90480-13055	AE80..GEN,SA	01/1984 - 10/1984	1
78310A - GROMMET, CHOKE CABLE
90480-13055	AE80..GEN,SAA	05/1983 - 01/1984	1
90480-13055	AE80..GEN,SA	01/1984 - 10/1984	1
78310B - CLAMP, CHOKE CABLE
90464-00117	AE80..GEN,SAA	05/1983 - 01/1984	1
90464-00117	AE80..GEN,SA	01/1984 - 10/1984	1
78310B - CLAMP, CHOKE CABLE
90464-00117	AE80..GEN,SAA	05/1983 - 01/1984	1
90464-00117	AE80..GEN,SA	01/1984 - 10/1984	1
78311 - KNOB, CHOKE CONTROL CABLE
78311-12021	AE80..GEN,SAA	05/1983 - 01/1984	1
78311-12021	AE80..GEN,SA	01/1984 - 10/1984	1
78311 - KNOB, CHOKE CONTROL CABLE
78311-12021	AE80..GEN,SAA	05/1983 - 01/1984	1
78311-12021	AE80..GEN,SA	01/1984 - 10/1984	1
Common parts
90179-13003
