AE80R-EEHNS (1983)
Toyota Corolla Sed/Lb

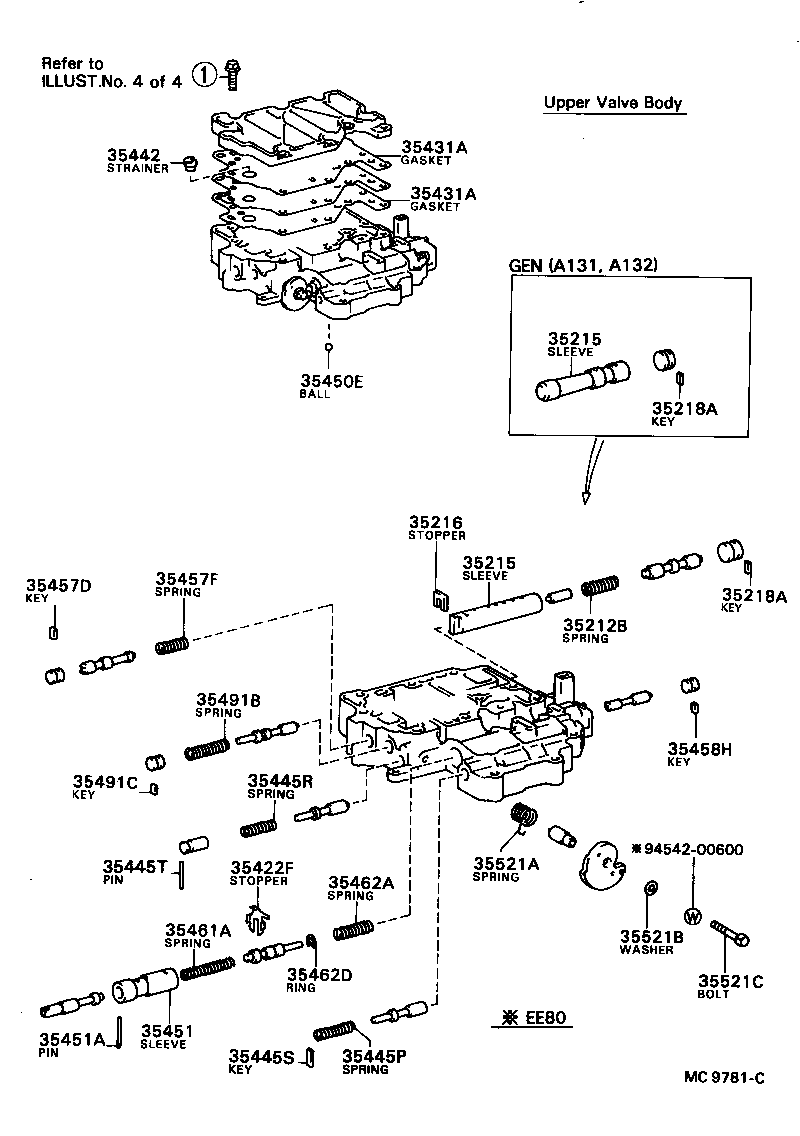

(8305- )3FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35215 - SLEEVE, LOCK UP RELAY VALVE | ||||
| 35215-12010 |
AE80,EE80..3FC..GEN |
1 | ||
| 35215 - SLEEVE, LOCK UP RELAY VALVE | ||||
| 35215-12010 |
AE80,EE80..3FC..GEN |
1 | ||
| 35218A - KEY, STRAIGHT (FOR LOCK UP RELAY VALVE PLUG) | ||||
| 90282-03003 |
AE8#,EE80..3FC |
1 | ||
| 35218A - KEY, STRAIGHT (FOR LOCK UP RELAY VALVE PLUG) | ||||
| 90282-03003 |
AE8#,EE80..3FC |
1 | ||
| 35422F - STOPPER, VALVE VIBRATING | ||||
| 35422-32010 |
AE8#,EE80..3FC |
1 | ||
| 35431A - GASKET, UPPER VALVE BODY COVER | ||||
| 35431-32010 |
AE8#,EE80..3FC |
2 | ||
| 35431A - GASKET, UPPER VALVE BODY COVER | ||||
| 35431-32010 |
AE8#,EE80..3FC |
2 | ||
| 35442 - STRAINER, THROTTLE MODULATOR OIL | ||||
| 35442-32010 |
AE8#,EE80..ATM |
1 | ||
| 35445P - SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90501-11013 |
AE8#,EE80..3FC |
1 | ||
| 35445R - SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE) | ||||
| 90501-09035 |
AE8#,EE80..3FC |
1 | ||
| 35445S - KEY, STRAIGHT (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90282-03003 |
AE8#,EE80..3FC |
1 | ||
| 35445T - PIN, STRAIGHT (FOR LOW COAST MODULATOR VALVE) | ||||
| 90250-03046 |
AE8#..3FC |
1 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 90360-06023 |
AE8#,EE80..3FC 0D=5.56 |
6 | ||
| 35451 - SLEEVE, THROTTLE VALVE | ||||
| 35451-32010 |
AE8#,EE80..ATM |
1 | ||
| 35451A - PIN, STRAIGHT (FOR THROTTLE VALVE SLEEVE) | ||||
| 90250-03045 |
AE8#..ATM |
1 | ||
| 35457D - KEY, STRAIGHT (FOR THROTTLE MODULATOR VALVE) | ||||
| 90282-03001 |
AE8#,EE80..3FC |
1 | ||
| 35457F - SPRING, COMPRESSION (FOR THROTTLE MODULATOR VALVE) | ||||
| 90501-09037 |
AE8#,EE80..3FC |
1 | ||
| 35458H - KEY, STRAIGHT (FOR CUT BACK VALVE) | ||||
| 90282-03001 |
AE8#,EE80..3FC |
1 | ||
| 35461A - SPRING, COMPRESSION (FOR DOWN SHIFT PLUG) | ||||
| 90501-10054 |
AE8#,EE80..ATM |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-07022 |
AE8#,EE80..3FC |
1 | ||
| 35462D - RING, E (FOR THROTTLE VALVE) | ||||
| 90523-06023 |
AE8#,EE80..ATM |
6 | ||
| 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1 | ||||
| 90501-10055 |
AE8#,EE80..3FC |
1 | ||
| 35491C - KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90282-03002 |
AE8#,EE80..3FC |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90508-11003 |
AE8#,EE80..ATM |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
AE8#,EE80..ATM |
1 | ||
| 35521C - BOLT (FOR THROTTLE VALVE CAM SET) | ||||
| 90105-06018 |
AE8#,EE80..ATM |
1 | ||
| Common parts | ||||
| 94542-00600 | ||||

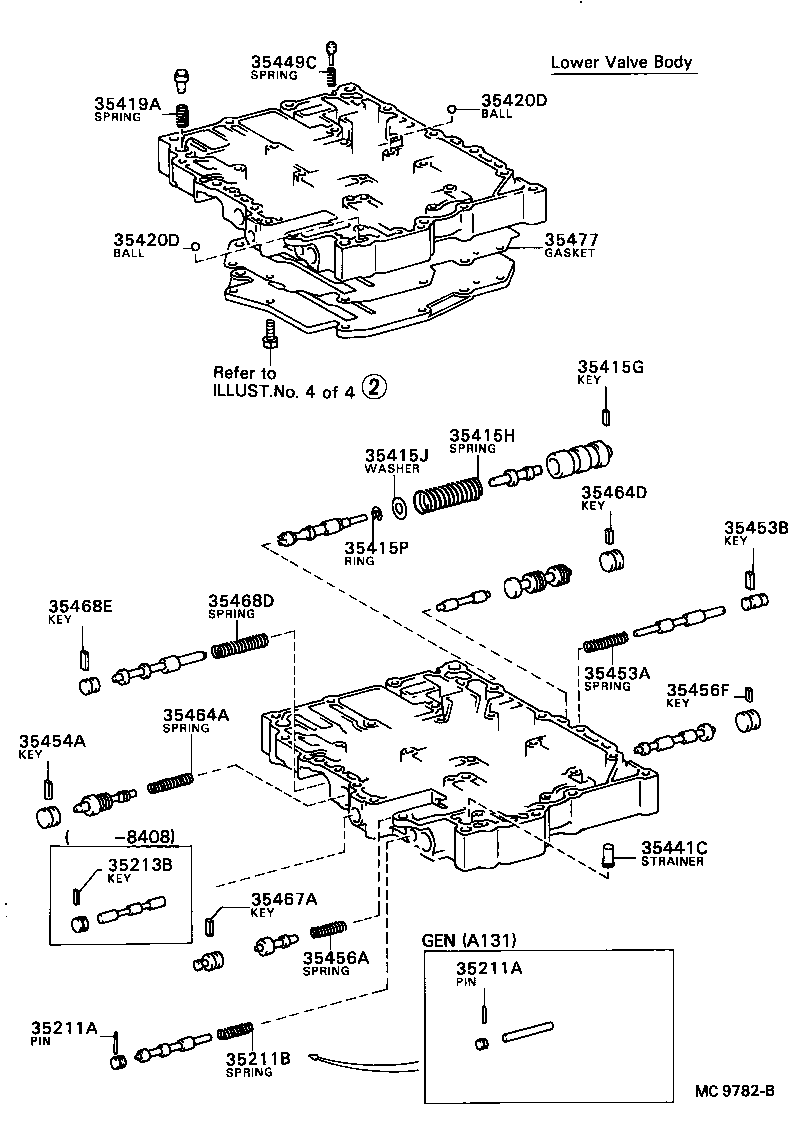

(8305- )AE8#..3FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35211A - PIN, STRAIGHT (FOR LOCK UP SIGNAL VALVE) | ||||
| 90250-02013 |
AE8#,EE80..3FC |
1 | ||
| 35211A - PIN, STRAIGHT (FOR LOCK UP SIGNAL VALVE) | ||||
| 90250-02013 |
AE8#,EE80..3FC |
1 | ||
| 35213B - KEY, STRAIGHT (FOR LOCK UP CONTROL VALVE) | ||||
| 90282-03002 |
AE8#..3FC |
1 | ||
| 35415G - KEY, STRAIGHT (FOR PRIMARY REGULATOR VALVE) | ||||
| 90282-03001 |
AE8#,EE80..3FC |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-16065 |
AE8#,EE80..3FC |
1 | ||
| 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) | ||||
| 94614-10600 |
AE8#,EE80..3FC |
1 | ||
| 35415P - RING, E (FOR PRIMARY REGULATOR VALVE) | ||||
| 90523-06004 |
AE8#,EE80..3FC |
4 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-10056 |
AE8#,EE80..3FC |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 35495-22010 |
AE8#,EE80..3FC OD=5.535,RUBBER |
3 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 35495-22010 |
AE8#,EE80..3FC OD=5.535,RUBBER |
3 | ||
| 35449C - SPRING, COMPRESSION (FOR VALVE PRESSURE RELIEF) | ||||
| 90501-09032 |
AE8#,EE80..ATM |
1 | ||
| 35453A - SPRING, COMPRESSION (FOR DETENT REGULATOR VALVE) | ||||
| 90501-09036 |
AE8#..3FC |
1 | ||
| 35453B - KEY, STRAIGHT (FOR DETENT REGULATOR VALVE) | ||||
| 90282-03002 |
AE8#,EE80..ATM |
1 | ||
| 35454A - KEY, STRAIGHT (FOR LOW COAST SHIFT VALVE) | ||||
| 90282-03001 |
AE8#,EE80..3FC |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-06027 |
AE8#,EE80..ATM |
1 | ||
| 35456F - KEY, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 90282-03004 |
AE8#,EE80..3FC |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-06025 |
AE8#,EE80..ATM |
1 | ||
| 35464D - KEY, STRAIGHT (FOR 1-2 SHIFT VALVE) | ||||
| 90282-03001 |
AE8#,EE80..3FC |
1 | ||
| 35467A - KEY, STRAIGHT (FOR INTERMEDIATE SHIFT VALVE) | ||||
| 90282-03002 |
AE8#,EE80..3FC |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-14059 |
AE8#,EE80..3FC |
1 | ||
| 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) | ||||
| 90282-03002 |
AE8#,EE80..3FC |
1 | ||
| 35477 - GASKET, VALVE BODY COVER | ||||
| 35477-12020 |
AE8#..3FC |
1 | ||

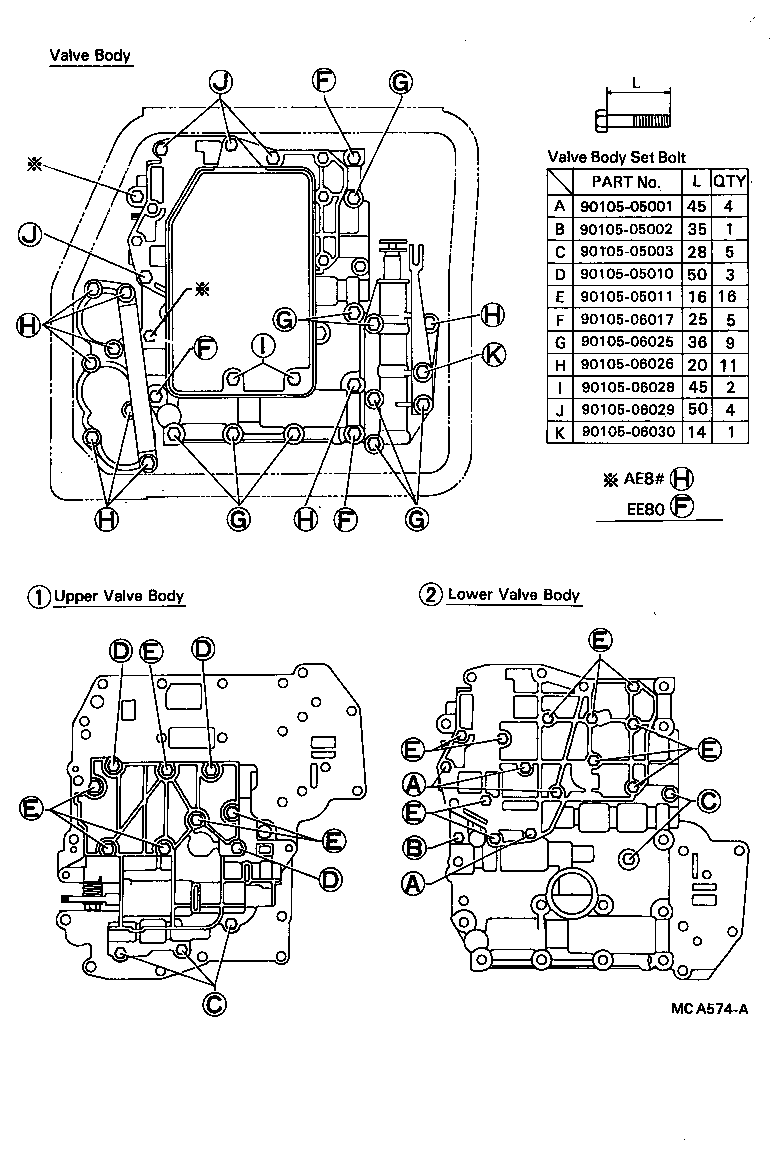

(8305- )3FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05001 | ||||
| 90105-05002 | ||||
| 90105-05003 | ||||
| 90105-05010 | ||||
| 90105-05011 | ||||
| 90105-06017 | ||||
| 90105-06025 | ||||
| 90105-06026 | ||||
| 90105-06028 | ||||
| 90105-06029 | ||||
| 90105-06030 | ||||

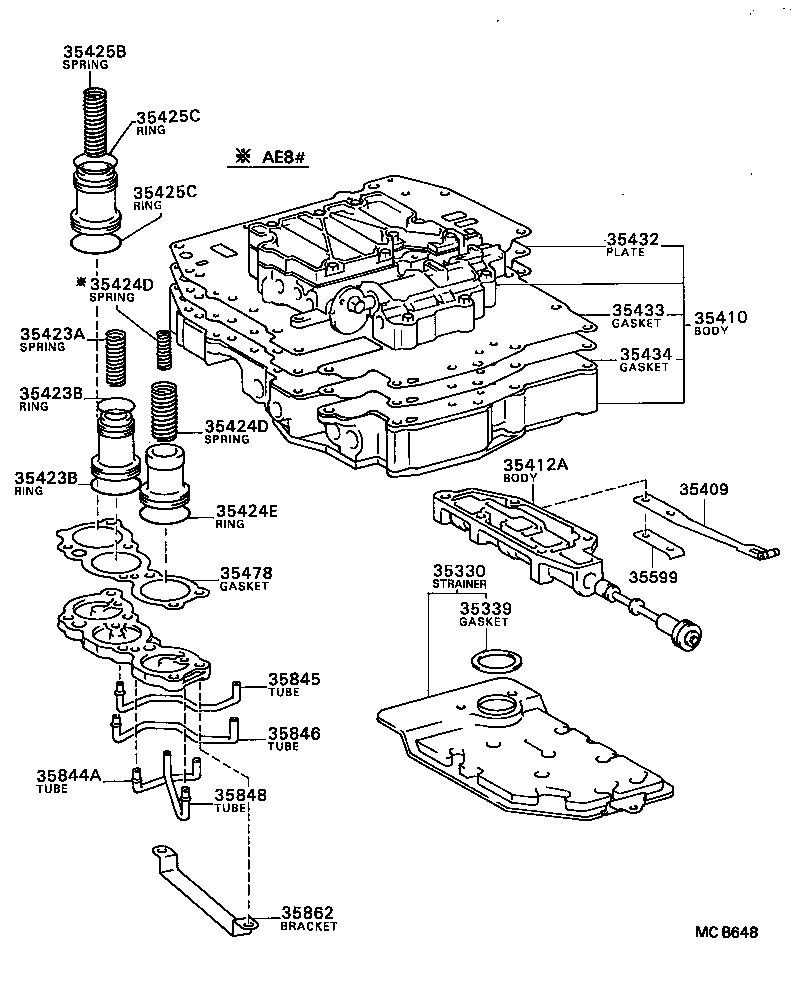

(8305- )3FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-32010 |
AE8#,EE80..3FC |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-32010 |
AE8#,EE80..3FC |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-32020 |
AE8#,EE80..3FC |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-12090 |
AE80..3FC..GEN |
1 | ||
| 35412A - BODY, MANUAL VALVE | ||||
| 35412-32010 |
AE8#,EE80..3FC |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-27006 |
AE8#..3FC |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-29187 |
AE8#,EE80..ATM LWR |
1 | ||
| 90301-22185 |
AE8#,EE80..ATM UPR |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-29187 |
AE8#,EE80..ATM LWR |
1 | ||
| 90301-22185 |
AE8#,EE80..ATM UPR |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-23044 |
AE8#..3FC INNER |
1 | ||
| 90501-23045 |
AE8#..3FC OUTER |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-23044 |
AE8#..3FC INNER |
1 | ||
| 90501-23045 |
AE8#..3FC OUTER |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-29187 |
AE8#,EE80..ATM |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-24004 |
AE8#..3FC |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-23194 |
AE8#..ATM UPR |
1 | ||
| 90301-29187 |
AE8#,EE80..ATM LWR |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-23194 |
AE8#..ATM UPR |
1 | ||
| 90301-29187 |
AE8#,EE80..ATM LWR |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-12091 |
AE8#..3FC |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-12030 |
AE8#..3FC |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-32020 |
AE8#,EE80..3FC |
1 | ||
| 35478 - GASKET, ACCUMULATOR COVER | ||||
| 35478-32010 |
AE8#,EE80..ATM |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-32010 |
AE8#,EE80..3FC |
1 | ||
| 35844A - TUBE, ACCUMULATOR BACK PRESSURE, NO.1 | ||||
| 35844-32020 |
AE8#,EE80..3FC |
1 | ||
| 35845 - TUBE, RR CLUTCH ACCUMULATOR | ||||
| 35845-32010 |
AE8#,EE80..3FC |
1 | ||
| 35846 - TUBE, BRAKE ACCUMULATOR | ||||
| 35846-32020 |
AE8#,EE80..3FC |
1 | ||
| 35848 - TUBE, FORWARD CLUTCH ACCUMULATOR | ||||
| 35848-32010 |
AE8#,EE80..3FC |
1 | ||
| 35862 - BRACKET, ACCUMULATOR APPLY TUBE | ||||
| 35862-32010 |
AE8#..3FC |
1 | ||
