AE80R-EEHNS (1983)
Toyota Corolla Sed/Lb
Production
May 1983
-
Oct 1984
Engine
2AL
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )ATM

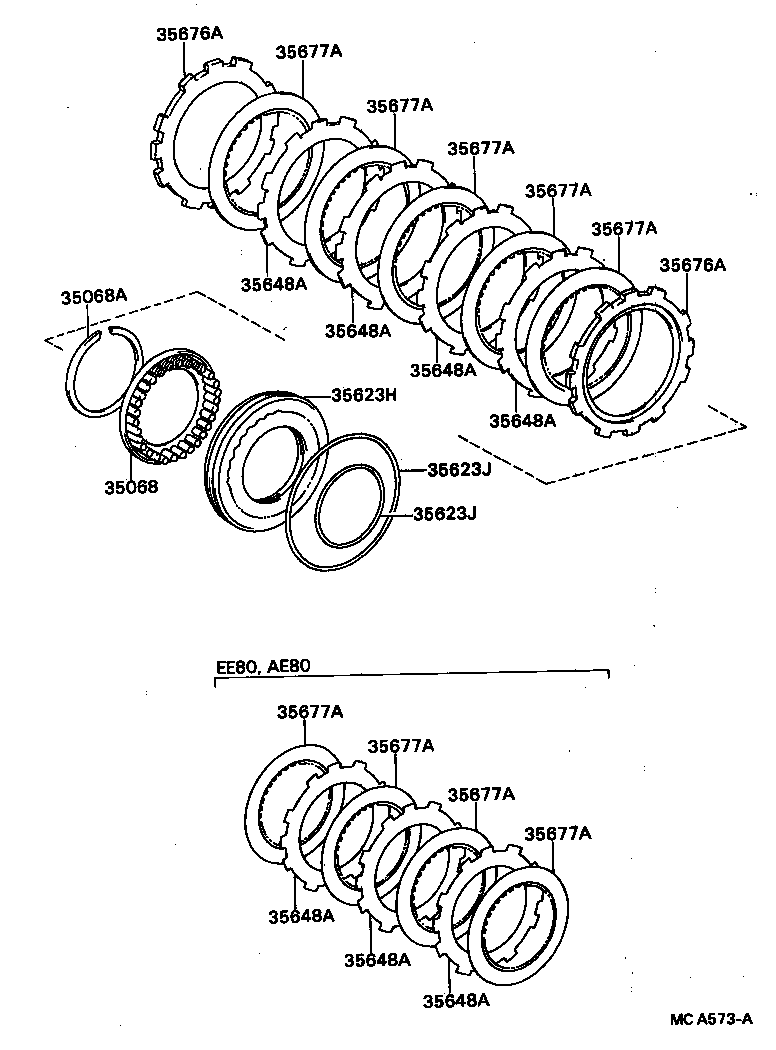

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-32010 |
AE8#,EE80..ATM |
1 | ||
| 35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING | ||||
| 90520-90001 |
AE8#,EE80..ATM |
1 | ||
| 35623H - PISTON, 1ST & REVERSE BRAKE | ||||
| 35623-12020 |
AE80..3FC |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-99022 |
AE8#,EE80..ATM OUTER |
1 | ||
| 90301-94001 |
AE8#,EE80..ATM INNER |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-99022 |
AE8#,EE80..ATM OUTER |
1 | ||
| 90301-94001 |
AE8#,EE80..ATM INNER |
1 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-32020 |
AE8#,EE80..ATM |
4 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-32020 |
AE8#,EE80..ATM |
4 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-32020 |
AE8#,EE80..ATM |
4 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-32020 |
AE8#,EE80..ATM |
4 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-32020 |
AE8#,EE80..ATM |
4 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-32020 |
AE8#,EE80..ATM |
4 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-32020 |
AE8#,EE80..ATM |
4 | ||
| 35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35676-32010 |
AE8#,EE80..ATM T=3.5 |
2 | ||
| 35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35676-32010 |
AE8#,EE80..ATM T=3.5 |
2 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-12020 |
AE8#..ATM |
5 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-12020 |
AE8#..ATM |
5 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-12020 |
AE8#..ATM |
5 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-12020 |
AE8#..ATM |
5 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-12020 |
AE8#..ATM |
5 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-12020 |
AE8#..ATM |
5 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-12020 |
AE8#..ATM |
5 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-12020 |
AE8#..ATM |
5 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-12020 |
AE8#..ATM |
5 | ||
