AE80L-ELMDS (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Oct 1984
Engine 2AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

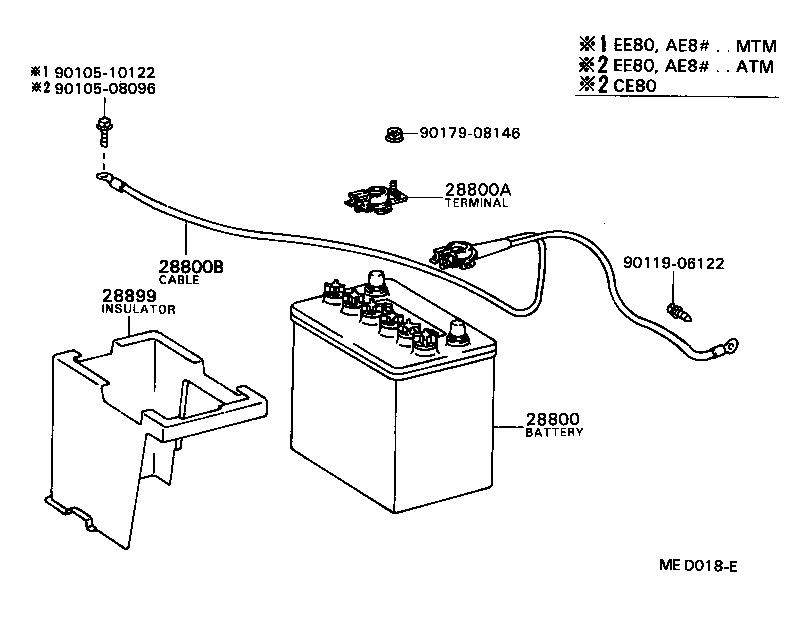

Click highlighted areas on diagram

diagram 28800 28800A 28800B 28899 9010508096 9010510122 9011906122 9017908146
Part # Description Qty Price
28800 - BATTERY
28800-13010

2AL,2EL..AE80,EE80..GEN,SAA

28B19L(NS40SL)

 1
28800-31031

4ALC,2ELC..AE82,EE80..FRG;2AL,4AGEL,4AL,2EL..AE8#,EE80

32C24L,32C24L(N40L)

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05018

2AL,4AGEL,4AL..AE8#..GEN,SAA

28B19L(NS40SL),34B19L(NS40ZAL)

 1
90982-05022

2AL,4AGEL,4AL#..AE8#

32C24L(N40L),55D23L

 1
28800B - CABLE, BATTERY TO GROUND
82123-12060

2AL,4AGEL,4AL#,2EL#..AE8#,EE80..EUR,GEN,SA,SAA

32C24L(N40L),50D20L,55D23L

 1
82123-12050

2AL,4AGEL,4AL,2EL..AE8#,EE80..GEN,SAA

28B19L(NS40SL),34B19L(NS40ZAL)

 1
Common parts
90105-08096
90105-10122
90119-06122
90179-08146
