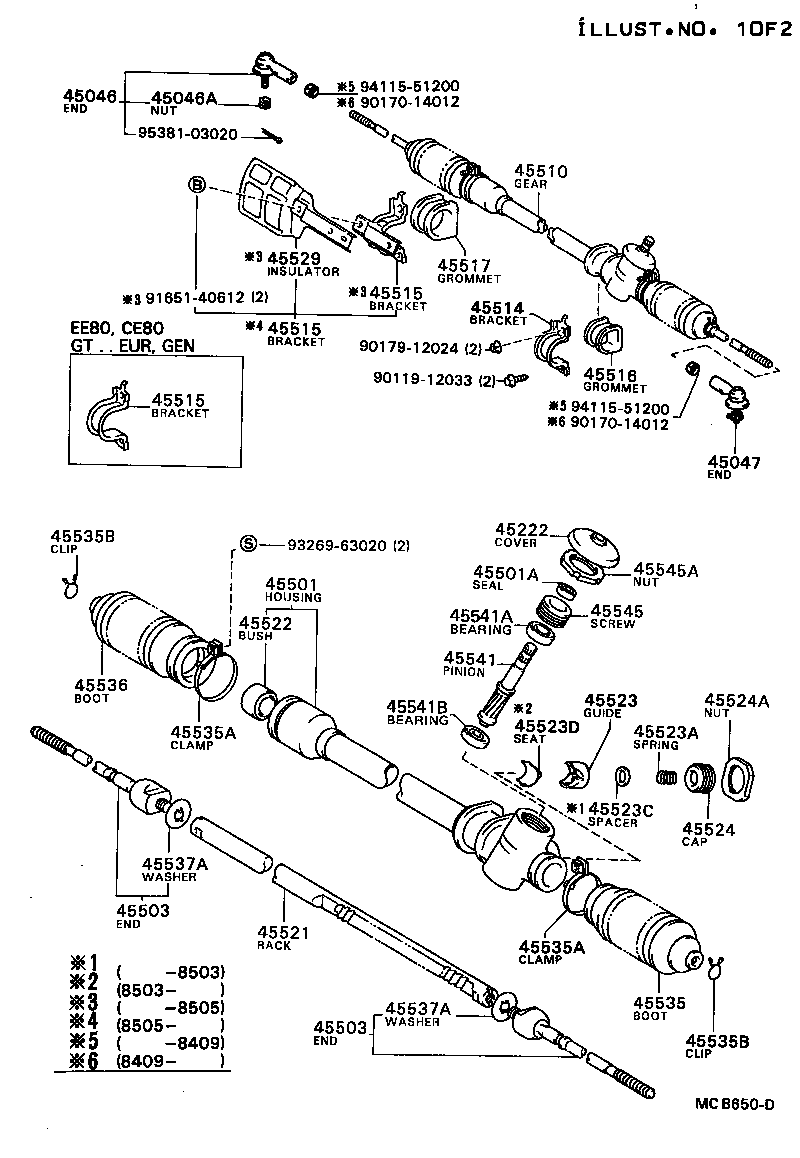

Toyota Corolla sed/lb AE80 FRONT STEERING GEAR & LINK

Part #	Description	Period	Qty
45046 - END SUB-ASSY, TIE ROD, RH
45046-29135	AE8#,CE80	05/1983 - 09/1984	1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	AE8#,CE80,EE80	05/1983 - 07/1988	2
45047 - END SUB-ASSY, TIE ROD, LH
45046-29135	AE8#,CE80	05/1983 - 09/1984	1
45222 - COVER, STEERING GEAR DUST
45222-10030	AE8#,CE80,EE80..EUR,GEN,SA,SAA	05/1983 - 04/1988	1
45501 - HOUSING SUB-ASSY, STEERING RACK
45501-12100	AE8#,CE80,EE80..LHD	05/1983 - 07/1987	1
45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING)
90311-15001	AE8#,CE80,EE80..EUR,GEN,SA,SAA	05/1983 - 04/1988	1
45503 - END SUB-ASSY, STEERING RACK
45503-19035	AE8#,CE80	05/1983 - 09/1984	2
45503 - END SUB-ASSY, STEERING RACK
45503-19035	AE8#,CE80	05/1983 - 09/1984	2
45510 - GEAR ASSY, STEERING
45510-12050	AE8#..LHD VARIABLE GEAR RATIO	05/1983 - 09/1984	1
45510-12090	AE8#..LHD CONSTANT GEAR RATIO	05/1983 - 09/1984	1
45514 - BRACKET, STEERING RACK HOUSING, NO.1
45514-12040	CE80,EE80;AE8#..LHD..(DX,GL,STD,XL)	05/1983 - 04/1988	1
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-12110	AE8#..LHD..(DX,GL,STD,XL)	05/1983 - 05/1985	1
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-12110	AE8#..LHD..(DX,GL,STD,XL)	05/1983 - 05/1985	1
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-12110	AE8#..LHD..(DX,GL,STD,XL)	05/1983 - 05/1985	1
45516 - GROMMET, STEERING RACK HOUSING, NO.1
45516-20010	AE8#,CE80,EE80	05/1983 - 07/1988	1
45517 - GROMMET, STEERING RACK HOUSING, NO.2
45517-12050	AE8#,CE80,EE80	05/1983 - 07/1988	1
45521 - RACK, STEERING
45521-12120	AE8#,EE80..LHD..(DX,GL,STD,XL) CONSTANT GEAR RATIO	05/1983 - 05/1985	1
45522 - BUSH, STEERING RACK
45522-10030	AE8#,CE80	05/1983 - 11/1983	1
45523 - GUIDE, RACK(FOR STEERING GEAR)
45523-16011	AE8#,CE80,EE80..EUR,GEN,SA,SAA	05/1983 - 03/1985	1
45523A - SPRING(FOR STEERING GEAR RACK GUIDE)
90501-23007	AE8#,CE80,EE80..EUR,GEN,SA,SAA	05/1983 - 03/1985	1
45523C - SPACER(FOR RACK GUIDE)
90560-23003	AE8#,CE80,EE80..EUR,GEN,SA,SAA	05/1983 - 03/1985	1
45524 - CAP, STEERING RACK GUIDE SPRING
45524-16010	AE8#,CE80,EE80..EUR,GEN,SA,SAA	05/1983 - 03/1985	1
45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP)
90179-36002	AE8#,CE80,EE80..EUR,GEN,SA,SAA	05/1983 - 04/1988	1
45529 - INSULATOR, STEERING RACK BOOT HEAT
45529-12010	AE8#..CS,CSX,DX,GL,S,STD,XL	05/1983 - 05/1985	1
45535 - BOOT, STEERING RACK, NO.1
45535-12011	AE8#,CE80,EE80..EUR,GEN,SA,SAA	05/1983 - 04/1988	1
45535A - CLAMP(FOR STEERING RACK BOOT)
90461-10273	AE8#,CE80,EE80..EUR,GEN,SA,SAA NO.1	05/1983 - 04/1988	1
90949-01082	AE8#,CE80,EE80..EUR,GEN,SA,SAA NO.2	05/1983 - 04/1988	1
45535A - CLAMP(FOR STEERING RACK BOOT)
90461-10273	AE8#,CE80,EE80..EUR,GEN,SA,SAA NO.1	05/1983 - 04/1988	1
90949-01082	AE8#,CE80,EE80..EUR,GEN,SA,SAA NO.2	05/1983 - 04/1988	1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-18003	AE8#,CE80,EE80..EUR,GEN,SA,SAA	05/1983 - 04/1988	2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-18003	AE8#,CE80,EE80..EUR,GEN,SA,SAA	05/1983 - 04/1988	2
45536 - BOOT, STEERING RACK, NO.2
45536-12030	AE8#,CE80,EE80..EUR,GEN,SA,SAA	05/1983 - 04/1988	1
45537A - WASHER, CLAW(FOR STEERING RACK END LOCK)
90214-14002	AE8#,CE80,EE80..EUR,GEN,SA,SAA	05/1983 - 04/1988	2
45537A - WASHER, CLAW(FOR STEERING RACK END LOCK)
90214-14002	AE8#,CE80,EE80..EUR,GEN,SA,SAA	05/1983 - 04/1988	2
45541 - PINION, STEERING
45541-12060	AE8#,EE80..LHD..(DX,GL,STD,XL) CONSTANT GEAR RATIO	05/1983 - 05/1985	1
45541A - BEARING, RADIAL BALL(FOR STEERING PINION UPPER)
90363-15003	AE8#,CE80,EE80..EUR,GEN,SA,SAA	05/1983 - 04/1988	1
45541B - BEARING, RADIAL BALL(FOR STEERING PINION LOWER)
90363-13001	AE8#,CE80,EE80..EUR,GEN,SA,SAA	05/1983 - 04/1988	1
45545 - SCREW, PINION BEARING ADJUSTING
45545-10010	AE8#,CE80,EE80..EUR,GEN,SA,SAA	05/1983 - 04/1988	1
45545A - NUT(FOR PINION BEARING ADJUSTING SCREW)
90179-38001	AE8#,CE80,EE80..EUR,GEN,SA,SAA	05/1983 - 04/1988	1
Common parts
90119-12033
90170-14012
90179-12024
91651-40612
93269-63020
94115-51200
95381-03020

AE80L-ELMDS (1983)

(8305- )LHD
