AE80L-ELKDSV (1983)

Toyota Corolla Sed/Lb

Production Aug 1983 - Oct 1984
Engine 2AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305-8707)LHD

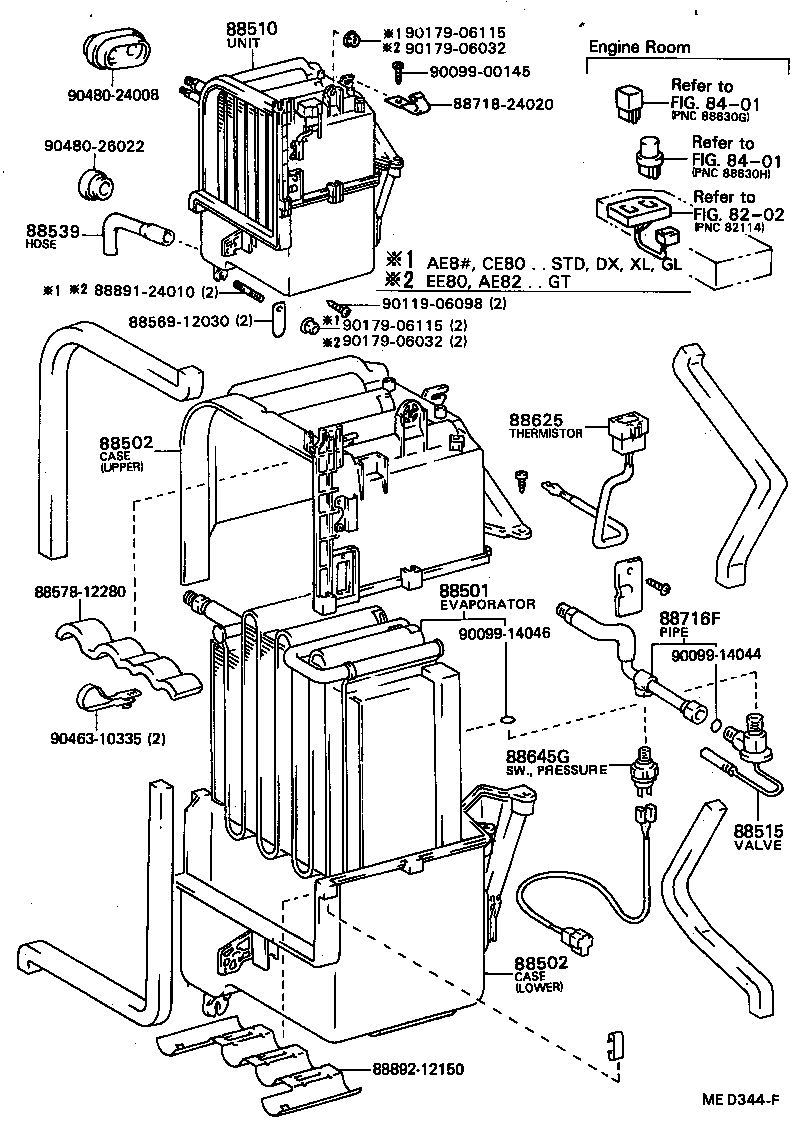

Click highlighted areas on diagram

diagram 8202 8401 8401 88501 88502 88502 88510 88515 88539 8856912030 8857812280 88625 88645G 88716F 8871824020 8889124010 8889212150 9009900145 9009914044 9009914046 9011906098 9017906032 9017906032 9017906115 9017906115 9046310335 9048024008 9048026022
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-16050

AE8#,CE80,EE80..LHD..(GEN,SAA)

 1
88510 - UNIT ASSY, COOLER
88510-16090

AE8#,CE80,EE80..LHD..(GEN,SAA)

 1
88515 - VALVE, COOLER EXPANSION
88515-16030

AE8#,CE80..GEN,SA,SAA

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12080

AE8#,CE80,EE80..ARL,GEN,SA,SAA

 1
88625 - THERMISTOR, COOLER, NO.1
88625-16060

AE8#,CE80,EE80..ARL,GEN,SA,SAA

 1
88645G - SWITCH, PRESSURE
88645-12020

AE8#,CE80,EE80..ARL,GEN,SA,SAA

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-16170

AE8#,CE80,EE80..LHD..(GEN,SAA)

 1
Common parts
88569-12030
88578-12280
88718-24020
88891-24010
88892-12150
90099-00145
90099-14044
90099-14046
90119-06098
90179-06032
90179-06115
90463-10335
90480-24008
90480-26022
