AE80L-ELKDSV (1983)

Toyota Corolla Sed/Lb

Production Aug 1983 - Oct 1984
Engine 2AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305-8505) ; (8505-8605)ARL,SA

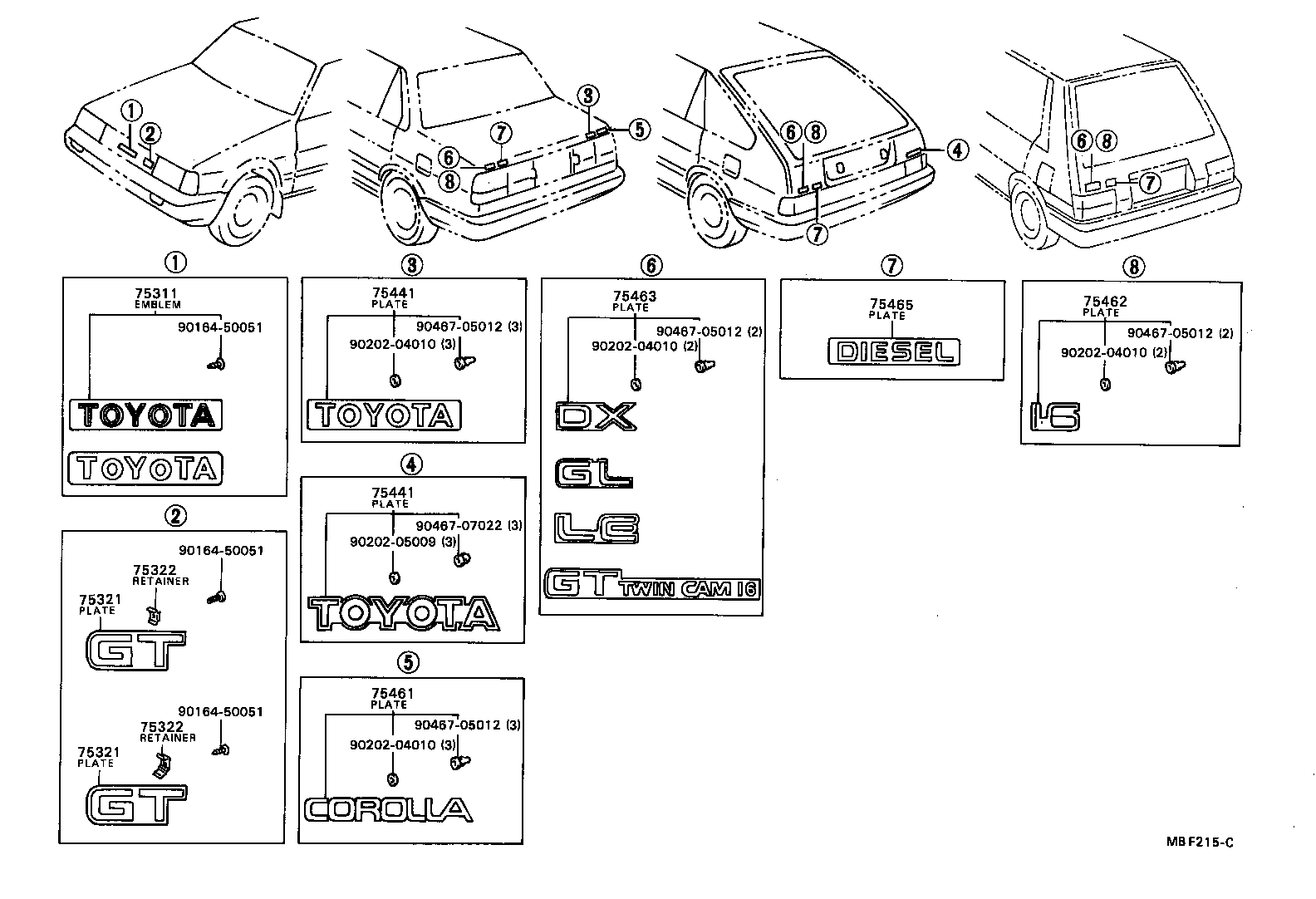

Click highlighted areas on diagram

diagram 75311 75321 75321 75322 75322 75441 75441 75461 75462 75463 75465 9016450051 9016450051 9016450051 9020204010 9020204010 9020204010 9020204010 9020205009 9046705012 9046705012 9046705012 9046705012 9046707022
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-80030

AE8#,CE80

 1
75441 - PLATE, REAR NAME, NO.1
75441-12300

AE8#,CE80..5D

TOYOTA

 1
75441 - PLATE, REAR NAME, NO.1
75441-12300

AE8#,CE80..5D

TOYOTA

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-12410

AE8#,CE80..DX,XL

DX

 1
Common parts
90164-50051
90202-04010
90202-05009
90467-05012
90467-07022
