AE80L-ELHDSW (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Oct 1984
Engine 2AL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )5D

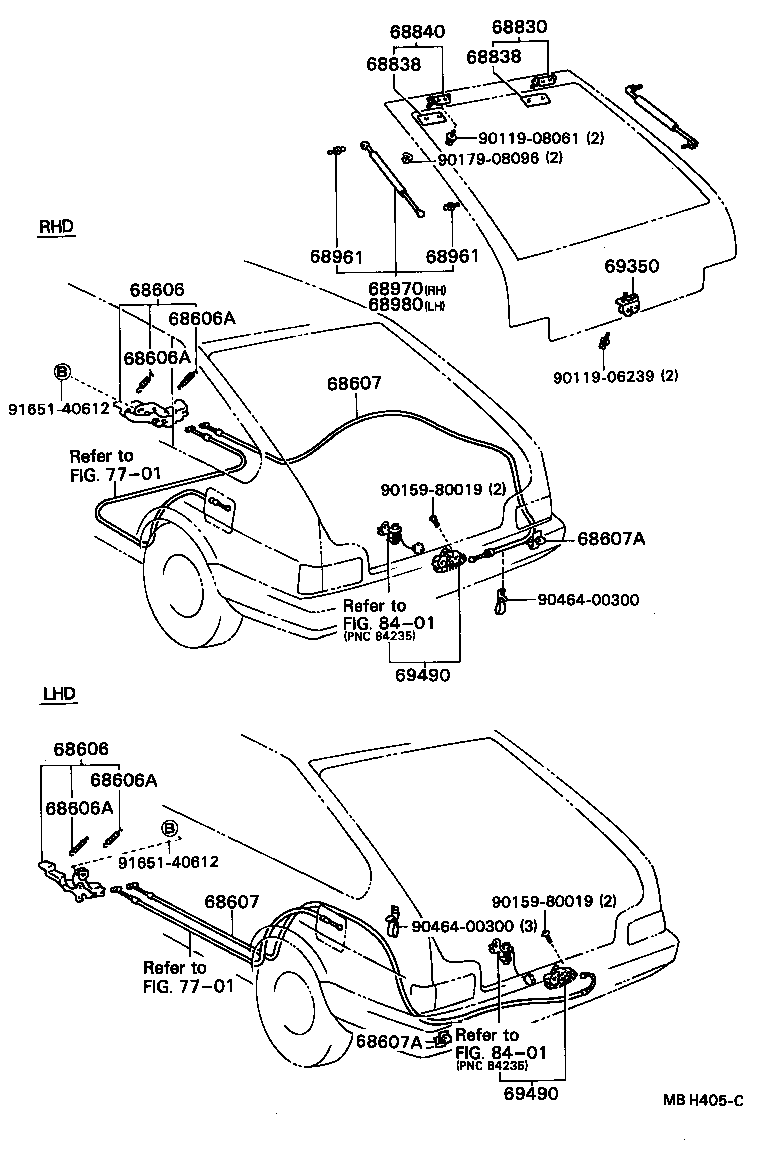

Click highlighted areas on diagram

diagram 68606 68606 68606A 68606A 68606A 68606A 68607 68607 68607A 68607A 68830 68838 68838 68840 68961 68961 68970 68980 69350 69490 69490 7701 7701 8401 8401 9011906239 9011908061 9015980019 9015980019 9017908096 9046400300 9046400300 9165140612 9165140612
Part # Description Qty Price
68830 - HINGE ASSY, BACK DOOR, RH
68801-20020

AE8#,CE80,EE80..5D

 1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-14021

AE8#,CE80,EE80..3DS,5D,5DS

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-14021

AE8#,CE80,EE80..3DS,5D,5DS

 2
68840 - HINGE ASSY, BACK DOOR, LH
68801-20020

AE8#,CE80,EE80..5D

 1
68961 - BOLT, BACK DOOR STAY
68961-32010

AE8#,CE80,EE80..5D

 4
68961 - BOLT, BACK DOOR STAY
68961-32010

AE8#,CE80,EE80..5D

 4
68970 - STAY ASSY, BACK DOOR, RH
68950-19415

AE8#,CE80,EE80..5D..(DX,GL,XL)..(EUR,GEN,SAA)

W/O RR WIPER

 1
68950-19425

AE8#,CE80,EE80..5D

W/RR WIPER

 1
68980 - STAY ASSY, BACK DOOR
68950-19425

AE8#,CE80,EE80..5D

W/RR WIPER

 1
68950-19415

AE8#,CE80,EE80..5D..(DX,GL,XL)..(EUR,GEN,SAA)

W/O RR WIPER

 1
69350 - LOCK ASSY, BACK DOOR
69350-12040

AE8#,CE80,EE80..5D

 1
69490 - STRIKER ASSY, BACK DOOR LOCK
69430-12100

AE8#,CE80..5D..DX..EUG

W/O LAMP SWITCH

 1
69430-12110

AE8#,CE80..5D..EUR

W/LAMP SWITCH

 1
69490 - STRIKER ASSY, BACK DOOR LOCK
69430-12100

AE8#,CE80..5D..DX..EUG

W/O LAMP SWITCH

 1
69430-12110

AE8#,CE80..5D..EUR

W/LAMP SWITCH

 1
Common parts
90119-06239
90119-08061
90159-80019
90179-08096
90464-00300
91651-40612
Linked diagrams
7701
8401
