AE80L-ELHDSW (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Oct 1984
Engine 2AL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )AE8#..3FC

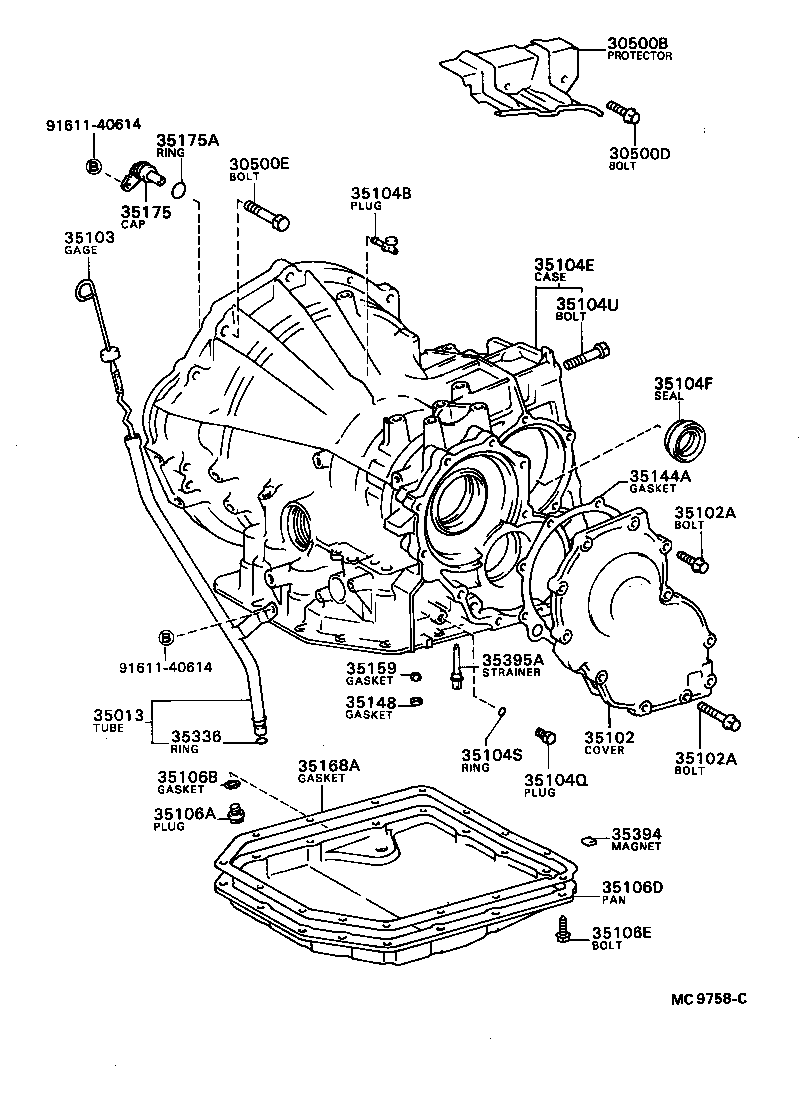

Click highlighted areas on diagram

diagram 30500B 30500D 30500E 35013 35102 35102A 35102A 35103 35104B 35104E 35104F 35104Q 35104S 35104U 35106A 35106B 35106D 35106E 35144A 35148 35159 35168A 35175 35175A 35336 35394 35395A 9161140614 9161140614
Part # Description Qty Price
30500B - PROTECTOR, TRANSAXLE CASE
33117-12020

AE8#..3FC

 1
30500D - BOLT(FOR TRANSAXLE CASE PROTECTOR)
90105-08040

AE8#,EE80..ATM

 2
30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING)
91611-60820

AE8#..ATM

*8-1.25PX20-20,*8-1.25PX20-20

 1
91619-61245

AE8#,EE80..ATM

*12-1.25PX45-30,*12-1.25PX45-30

 2
91619-61255

AE8#,EE80..ATM

*12-1.25PX55-30,*12-1.25PX55-30

 1
91611-61020

AE8#..ATM

*10-1.25PX20-20,*10-1.25PX20-20

 1
90105-10077

AE8#..ATM

*10-1.25PX43-26,*10-1.25PX43-26

 1
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-12140

AE8#..3FC

 1
35102 - COVER SUB-ASSY, TRANSAXLE REAR
35102-20020

AE8#..3FC

 1
35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING)
90105-08050

AE8#,EE80..3FC

*8-1.25PX28-28,*8-1.25PX28-28

 9
90105-08056

AE8#,EE80..3FC

*8-1.25PX40-40,*8-1.25PX38-38

 2
35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING)
90105-08050

AE8#,EE80..3FC

*8-1.25PX28-28,*8-1.25PX28-28

 9
90105-08056

AE8#,EE80..3FC

*8-1.25PX40-40,*8-1.25PX38-38

 2
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-12060

AE8#..3FC

 1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03089

AE8#,EE80..3FC

 1
35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE
35104-12060

AE8#..3FC

 1
35104F - SEAL, OIL (FOR TRANSAXLE CASE)
90311-34005

AE8#,EE80..3FC

 1
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001

AE8#,EE80..ATM

 3
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196

AE8#,EE80..ATM

 3
35104U - BOLT (FOR TRANSAXLE CASE)
90105-10008

AE8#,EE80..3FC

*10-1.25PX53-26

 2
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-18016

AE8#,EE80..3FC

 1
35106B - GASKET, DRAIN PLUG (ATM)
90430-18007

AE8#..3FC

 1
35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106-32020

AE8#..3FC

 1
35106E - BOLT (FOR TRANSAXLE OIL PAN)
90119-06173

AE8#,EE80..ATM

 18
35144A - GASKET, TRANSAXLE REAR COVER
34112-32010

AE8#..3FC

 1
35148 - GASKET, GOVERNOR APPLY, NO.1
35148-16010

AE8#,EE80..ATM

 1
35159 - GASKET, BRAKE DRUM
35159-32010

AE8#,EE80..ATM

 1
35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN
35168-32010

AE8#,EE80..3FC

 1
35175 - CAP, TRANSAXLE CASE, NO.2
35175-32010

AE8#,EE80..3FC

 1
35175A - RING, O (FOR TRANSAXLE CASE CAP)
90301-21002

AE8#,EE80..3FC

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

AE8#,EE80..ATM

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

AE8#,EE80..ATM

 3
35395A - STRAINER, GOVERNOR OIL
35395-32010

AE8#,EE80..3FC

 1
Common parts
91611-40614
