AE80L-ELHDS (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Oct 1984
Engine 2AL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

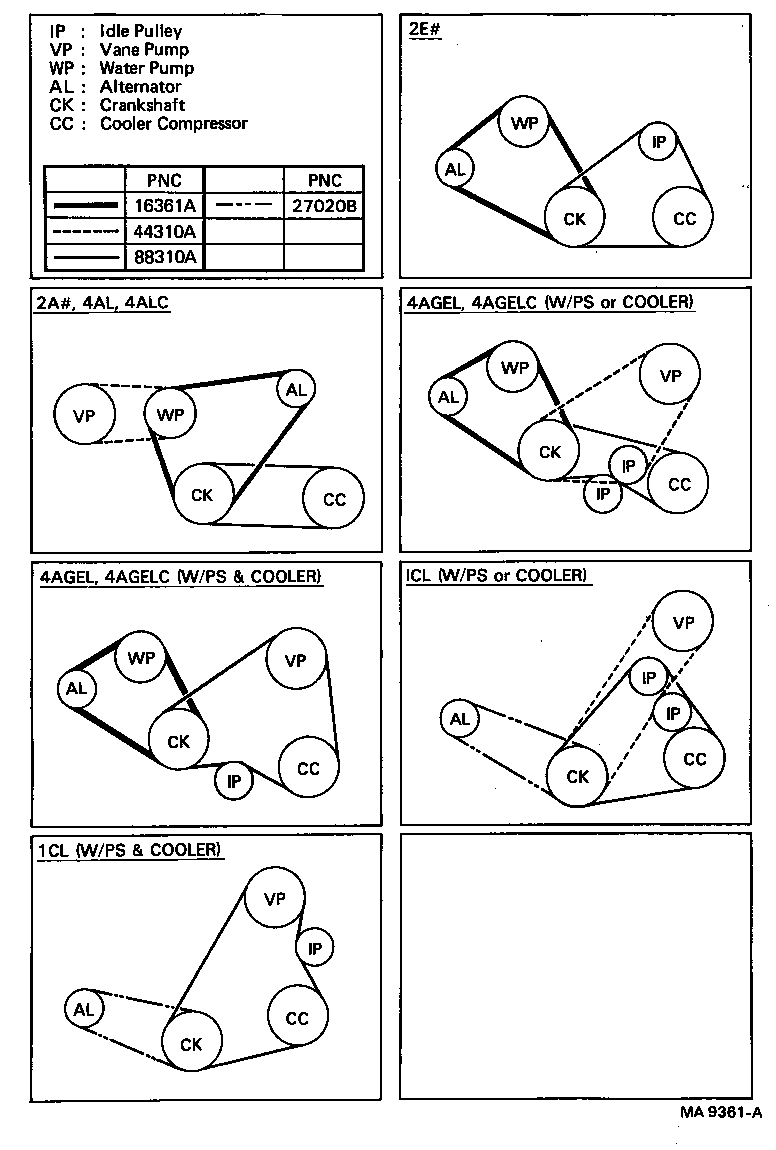

Click highlighted areas on diagram

diagram 16361A 27020B 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99365-00970

2AL#,4AL#..AE8#

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99332-10870

AE8#..(4DS,5D,5DS)..LHD..(GEN,SAA)

L=870,A TYPE, MITSUBOSHI

 1
99332-60870

AE8#..(4DS,5D,5DS)..LHD..(GEN,SAA)

A TYPE,BANDOH

 1
