AE80L-EHKRS (1984)
Toyota Corolla Sed/Lb
Production
Oct 1984
-
May 1985
Engine
2AL
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8410- )3DS,5DS

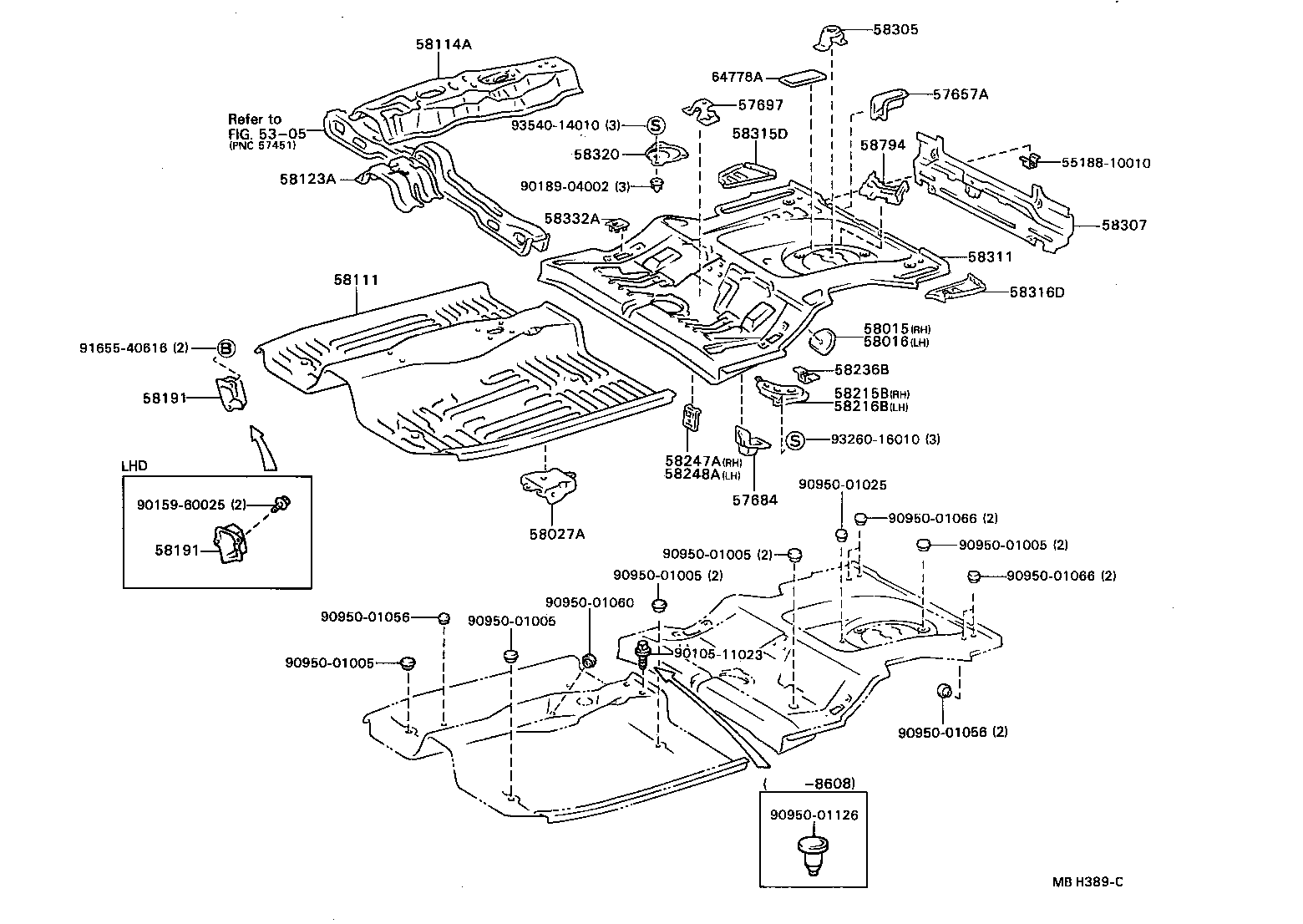

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57684 - BRACKET, FUEL TANK, REAR | ||||
| 57686-16011 |
AE8#,CE80,EE80 RH |
1 | ||
| 57687-16011 |
AE8#,CE80,EE80 LH |
1 | ||
| 57697 - RETAINER, REAR SEAT CUSHION | ||||
| 57697-16010 |
AE8#,CE80,EE80 |
1 | ||
| 58015 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH | ||||
| 58015-16010 |
AE8#,CE80 |
1 | ||
| 58016 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH | ||||
| 58015-16010 |
AE8#,CE80 |
1 | ||
| 58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR | ||||
| 58027-12020 |
AE8#,CE80,EE80..ARL,GEN,SA,SAA |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-12170 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-12020 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58013-12010 |
AE8#,CE80,EE80 |
1 | ||
| 58215B - BRACKET, REAR SEAT MOUNTING, RH | ||||
| 58215-16010 |
AE8#,CE80,EE80 |
1 | ||
| 58216B - BRACKET, REAR SEAT MOUNTING, LH | ||||
| 58216-16010 |
AE8#,CE80,EE80 |
1 | ||
| 58236B - BRACKET, CENTER FLOOR HEAT INSULATOR | ||||
| 58236-14010 |
AE8#,CE80,EE80 |
2 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-10011 |
AE8#,CE80,EE80 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-12840 |
AE8#,CE80,EE80..5D..(EUR,GEN,SA,SAA) |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-12110 |
AE8#,CE80,EE80..5D |
1 | ||
| 58315D - EXTENSION, REAR FLOOR PAN, RH | ||||
| 58315-12010 |
AE8#,CE80,EE80..4DS,5D |
1 | ||
| 58316D - EXTENSION, REAR FLOOR PAN, LH | ||||
| 58316-12010 |
AE8#,CE80,EE80..4DS,5D |
1 | ||
| 58320 - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-16020 |
AE8#,CE80,EE80 |
1 | ||
| 58332A - COVER, REAR FLOOR SIDE SERVICE HOLE | ||||
| 58331-16010 |
AE8#,CE80,EE80 RH |
1 | ||
| 58332-16010 |
AE8#,CE80,EE80 LH |
1 | ||
| 58794 - CARRIER, JACK | ||||
| 58791-16031 |
AE8#,CE80 |
1 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64778-12010 |
AE8#,CE80,EE80 |
2 | ||
| Common parts | ||||
| 55188-10010 | ||||
| 90105-11023 | ||||
| 90159-60025 | ||||
| 90189-04002 | ||||
| 90950-01005 | ||||
| 90950-01025 | ||||
| 90950-01056 | ||||
| 90950-01060 | ||||
| 90950-01066 | ||||
| 90950-01126 | ||||
| 91655-40616 | ||||
| 93260-16010 | ||||
| 93540-14010 | ||||
| Linked diagrams | ||||
| 5305 | ||||
