AE80L-EHKRS (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - May 1985
Engine 2AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305-8605)4DS,5D..ARL,EUR,GEN,SA ; (8605-8704)4DS,5D..EUR,GEN

Click highlighted areas on diagram

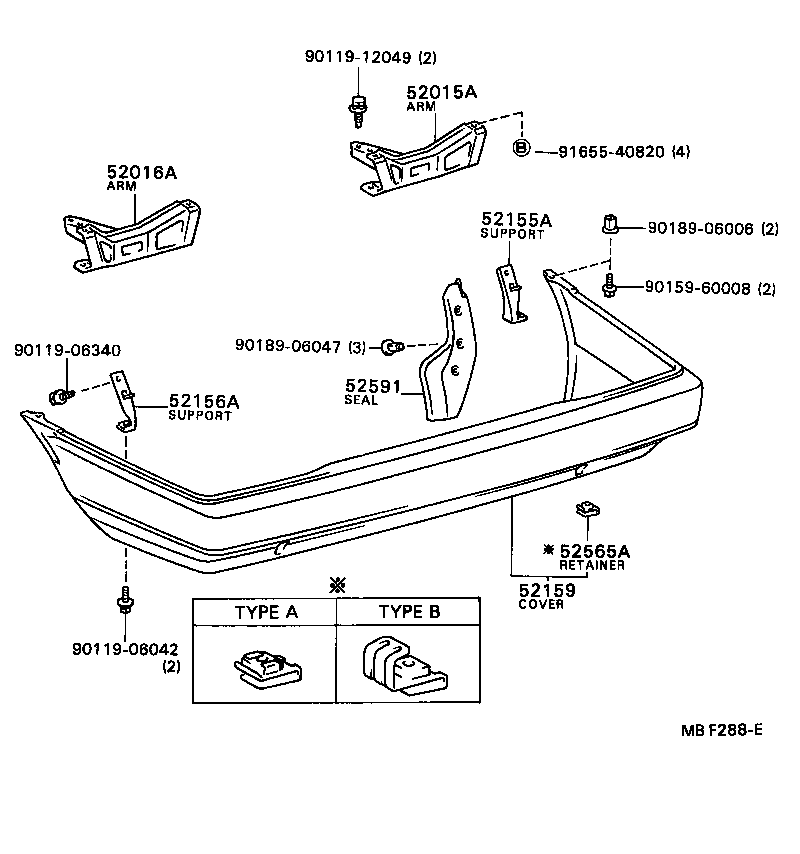

diagram 52015A 52016A 52155A 52156A 52159 52565A 52591 9011906042 9011906340 9011912049 9015960008 9018906006 9018906047 9165540820
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-12140

AE8#,CE80,EE80..EUR,GEN,SA

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-12140

AE8#,CE80,EE80..EUR,GEN,SA

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-12120

AE8#,CE80,EE80..4DS,5D

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-12100

AE8#,CE80,EE80..4DS,5D

 1
52159 - COVER, REAR BUMPER
52159-12140

AE8#,CE80..5D..(EUR,GEN)

DEEP GRAY

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-12040

AE8#,CE80,EE80..ARL,EUR,GEN,SA

 8
52591 - SEAL, REAR BUMPER SIDE, RH
52591-12020

AE8#,CE80,EE80..4DS,5D

 1
Common parts
90119-06042
90119-06340
90119-12049
90159-60008
90189-06006
90189-06047
91655-40820

(8410- )3DS,5DS

Click highlighted areas on diagram

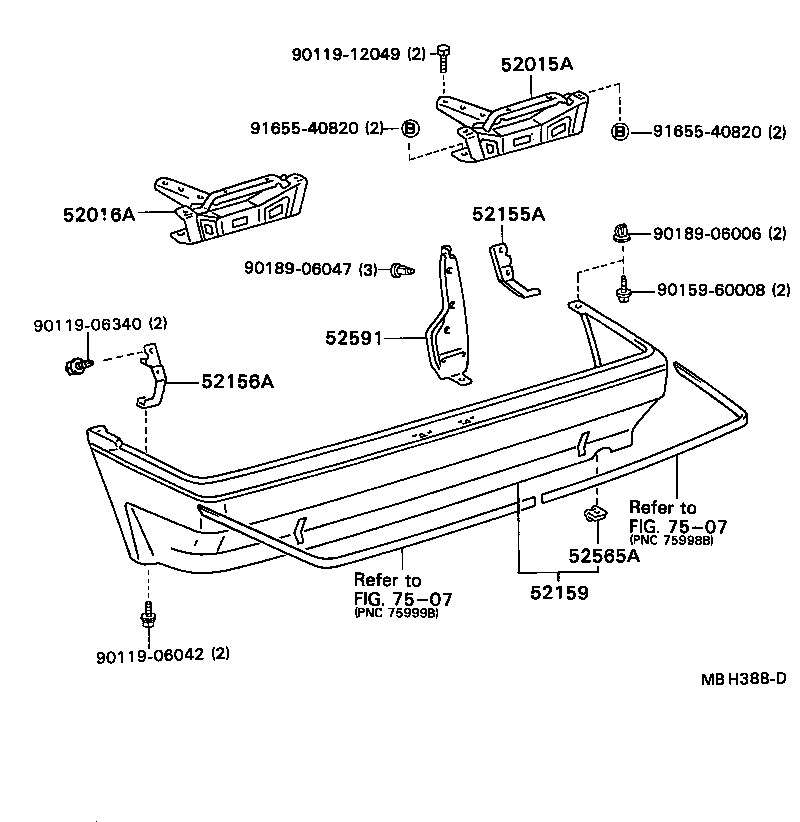

diagram 52015A 52016A 52155A 52156A 52159 52565A 52591 7507 7507 9011906042 9011906340 9011912049 9015960008 9018906006 9018906047 9165540820 9165540820
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-12140

AE8#,CE80,EE80..EUR,GEN,SA

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-12140

AE8#,CE80,EE80..EUR,GEN,SA

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-12120

AE8#,CE80,EE80..4DS,5D

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-12100

AE8#,CE80,EE80..4DS,5D

 1
52159 - COVER, REAR BUMPER
52159-12140

AE8#,CE80..5D..(EUR,GEN)

DEEP GRAY

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-12040

AE8#,CE80,EE80..ARL,EUR,GEN,SA

 8
52591 - SEAL, REAR BUMPER SIDE, RH
52591-12020

AE8#,CE80,EE80..4DS,5D

 1
Common parts
90119-06042
90119-06340
90119-12049
90159-60008
90189-06006
90189-06047
91655-40820
Linked diagrams
7507
