AE80L-EEMNSW (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Oct 1984
Engine 2AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

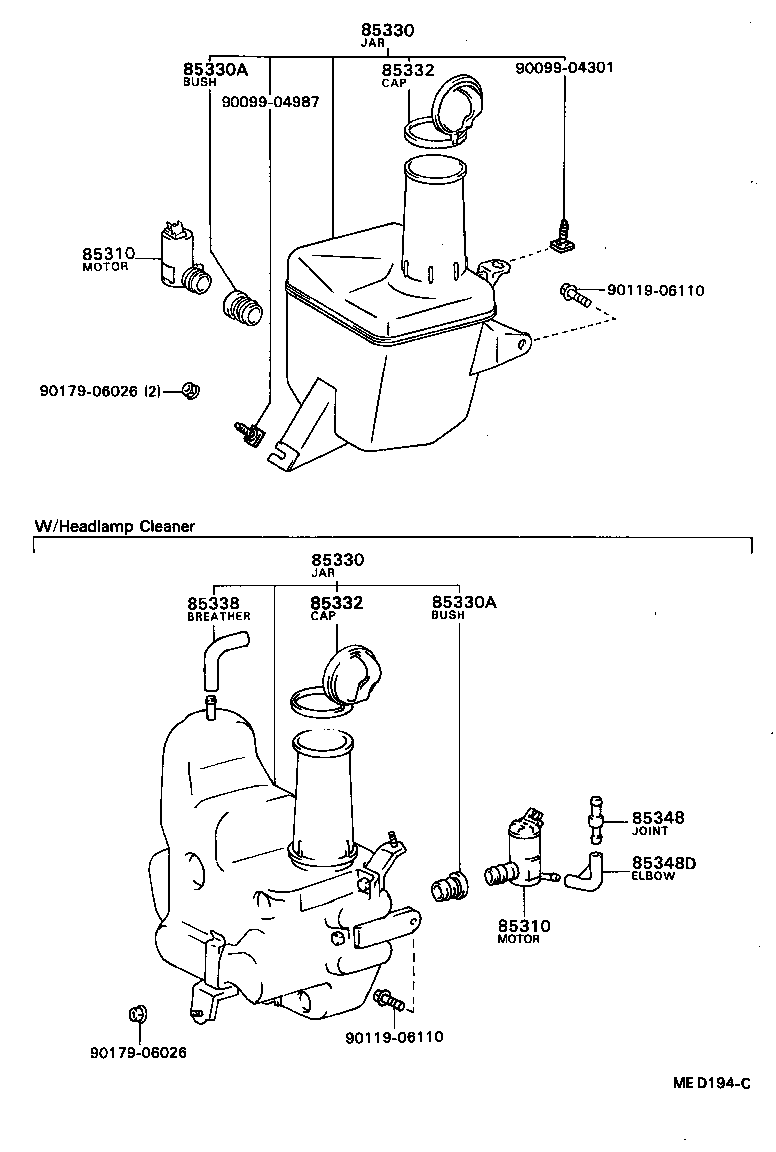

Click highlighted areas on diagram

diagram 85310 85310 85330 85330 85330A 85330A 85332 85332 85338 85348 85348D 9009904301 9009904987 9011906110 9011906110 9017906026 9017906026
Part # Description Qty Price
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080

AE8#,CE80,EE80

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080

AE8#,CE80,EE80

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85331-20440

AE8#,CE80,EE80..EUR

2.5 LITTER

 1
85331-12240

AE8#,CE80,EE80..LHD..EUR

W/HEADLAMP CLEANER

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85331-20440

AE8#,CE80,EE80..EUR

2.5 LITTER

 1
85331-12240

AE8#,CE80,EE80..LHD..EUR

W/HEADLAMP CLEANER

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AE8#,CE80,EE80..EUR,GEN,SA,SAA

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AE8#,CE80,EE80..EUR,GEN,SA,SAA

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-20440

AE8#,CE80..LHD..EUR

W/HEADLAMP CLEANER

 1
85332-20440

AE8#,CE80..EUR

2.5 LITTER

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-20440

AE8#,CE80..LHD..EUR

W/HEADLAMP CLEANER

 1
85332-20440

AE8#,CE80..EUR

2.5 LITTER

 1
85338 - HOSE, BREATHER
85338-12240

AE8#,CE80,EE80..LHD..EUR

W/HEADLAMP CLEANER

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

AE8#,CE80,EE80..EUR,GEN,SA,SAA

3WAY

 1
85355-87201

AE8#,CE80,EE80..EUR,GEN,SA,SAA

2WAY

 2
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481

AE8#,CE80,EE80..EUR,GEN,SA,SAA

 3
Common parts
90099-04301
90099-04987
90119-06110
90179-06026

(8305- )

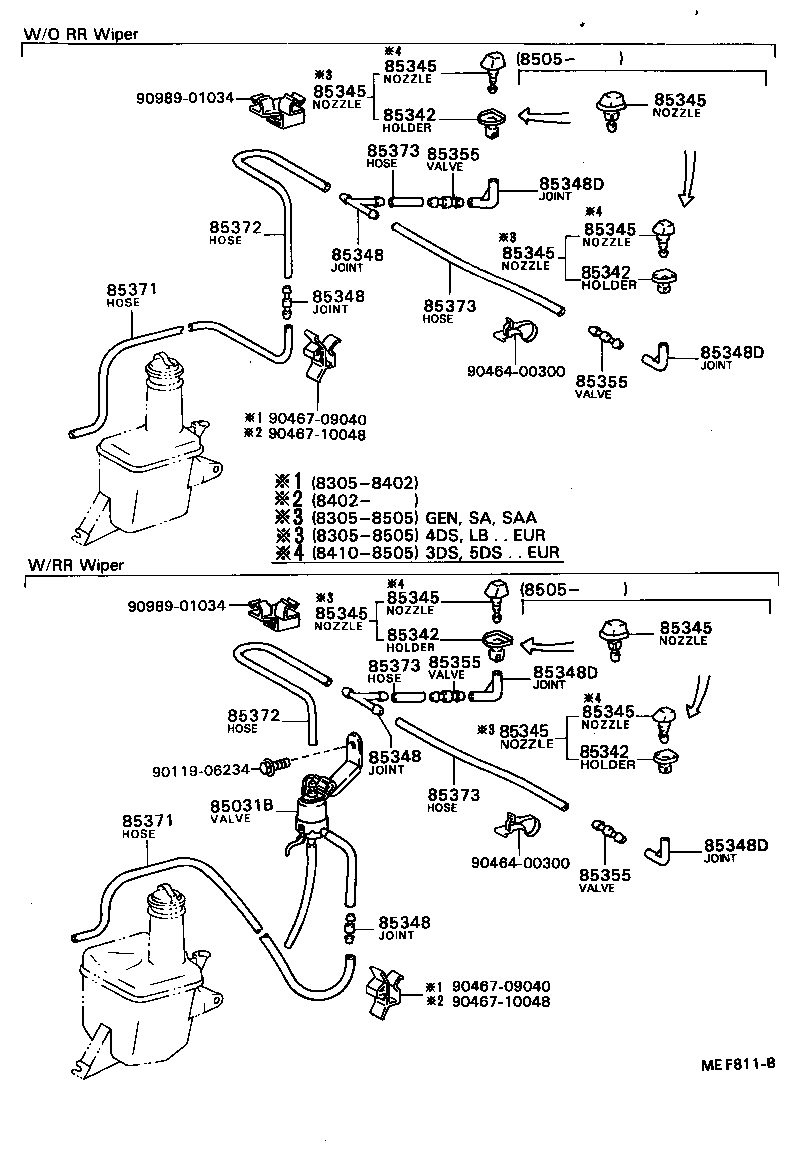

Click highlighted areas on diagram

diagram 85031B 85342 85342 85342 85342 85345 85345 85345 85345 85345 85345 85345 85345 85345 85345 85348 85348 85348 85348 85348D 85348D 85348D 85348D 85355 85355 85355 85355 85371 85371 85372 85372 85373 85373 85373 85373 9011906234 9046400300 9046400300 9046709040 9046709040 9046710048 9046710048 9098901034 9098901034
Part # Description Qty Price
85342 - HOLDER, WASHER NOZZLE
85342-14010

AE8#,CE80,EE80..EUR,GEN,SA,SAA

 2
85342 - HOLDER, WASHER NOZZLE
85342-14010

AE8#,CE80,EE80..EUR,GEN,SA,SAA

 2
85342 - HOLDER, WASHER NOZZLE
85342-14010

AE8#,CE80,EE80..EUR,GEN,SA,SAA

 2
85342 - HOLDER, WASHER NOZZLE
85342-14010

AE8#,CE80,EE80..EUR,GEN,SA,SAA

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-19015

AE8#,CE80,EE80..(4DS,5D)..EUR

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-19015

AE8#,CE80,EE80..(4DS,5D)..EUR

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-19015

AE8#,CE80,EE80..(4DS,5D)..EUR

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-19015

AE8#,CE80,EE80..(4DS,5D)..EUR

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-19015

AE8#,CE80,EE80..(4DS,5D)..EUR

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-19015

AE8#,CE80,EE80..(4DS,5D)..EUR

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-19015

AE8#,CE80,EE80..(4DS,5D)..EUR

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-19015

AE8#,CE80,EE80..(4DS,5D)..EUR

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-19015

AE8#,CE80,EE80..(4DS,5D)..EUR

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-19015

AE8#,CE80,EE80..(4DS,5D)..EUR

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

AE8#,CE80,EE80..EUR,GEN,SA,SAA

3WAY

 1
85355-87201

AE8#,CE80,EE80..EUR,GEN,SA,SAA

2WAY

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

AE8#,CE80,EE80..EUR,GEN,SA,SAA

3WAY

 1
85355-87201

AE8#,CE80,EE80..EUR,GEN,SA,SAA

2WAY

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

AE8#,CE80,EE80..EUR,GEN,SA,SAA

3WAY

 1
85355-87201

AE8#,CE80,EE80..EUR,GEN,SA,SAA

2WAY

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

AE8#,CE80,EE80..EUR,GEN,SA,SAA

3WAY

 1
85355-87201

AE8#,CE80,EE80..EUR,GEN,SA,SAA

2WAY

 2
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481

AE8#,CE80,EE80..EUR,GEN,SA,SAA

 3
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481

AE8#,CE80,EE80..EUR,GEN,SA,SAA

 3
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481

AE8#,CE80,EE80..EUR,GEN,SA,SAA

 3
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481

AE8#,CE80,EE80..EUR,GEN,SA,SAA

 3
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-14080

AE8#,CE80,EE80..EUR,GEN,SA,SAA

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-14080

AE8#,CE80,EE80..EUR,GEN,SA,SAA

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-14080

AE8#,CE80,EE80..EUR,GEN,SA,SAA

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-14080

AE8#,CE80,EE80..EUR,GEN,SA,SAA

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-07001

AE8#,CE80,EE80..EUR,GEN,SA,SAA

*H,L=1100

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-07001

AE8#,CE80,EE80..EUR,GEN,SA,SAA

*H,L=1100

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33299

AE8#,CE80,EE80..EUR,GEN,SA,SAA

*H,L=570

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33299

AE8#,CE80,EE80..EUR,GEN,SA,SAA

*H,L=570

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

AE8#,CE80,EE80..EUR,GEN,SA,SAA

*H,L=500

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

AE8#,CE80,EE80..EUR,GEN,SA,SAA

*H,L=500

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

AE8#,CE80,EE80..EUR,GEN,SA,SAA

*H,L=500

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

AE8#,CE80,EE80..EUR,GEN,SA,SAA

*H,L=500

 1
Common parts
90119-06234
90464-00300
90467-09040
90467-10048
90989-01034
