AE80L-EEMNSW (1983)
Toyota Corolla Sed/Lb
(8305- )4DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-12440 |
AE8#,CE80,EE80..SED..LHD..(EUR,GEN) |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-12510 |
AE8#,CE80,EE80..SED..LHD..(EUR,GEN) W/ANTENNA |
1 | ||
| 61167 - BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH | ||||
| 61035-12030 |
AE8#,CE80,EE80..LHD |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-12190 |
AE8#,CE80,EE80..4DS,5DS |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-12190 |
AE8#,CE80,EE80..4DS,5DS |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-12330 |
AE8#,CE80,EE80..(4DS,5DS)..(EUR,GEN,SA) W/O SUN ROOF |
1 | ||
| 61231-12340 |
AE8#,CE80,EE80..(4DS,5DS)..(DX,GL,XL)..(EUR,GEN) W/SUN ROOF |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-12240 |
AE8#,CE80,EE80..(4DS,5DS)..(DX,GL,XL)..(EUR,GEN) W/SUN ROOF |
1 | ||
| 61232-12230 |
AE8#,CE80,EE80..(4DS,5DS)..(EUR,GEN,SA) W/O SUN ROOF |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61265-12060 |
AE8#,CE80,EE80..4DS |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61266-12060 |
AE8#,CE80,EE80..4DS |
1 | ||
| 61281 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1 | ||||
| 61281-12020 |
AE8#,CE80..(DX,GL,XL)..(EUR,GEN,SAA) |
2 | ||
| 61283 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH | ||||
| 61283-12020 |
AE8#,CE80..(DX,GL,XL)..(EUR,GEN,SAA) |
1 | ||
| 61284 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH | ||||
| 61284-12020 |
AE8#,CE80..(DX,GL,XL)..(EUR,GEN,SAA) |
1 | ||
| 61301 - PILLAR SUB-ASSY, CENTER BODY, RH | ||||
| 61301-12150 |
AE8#,CE80,EE80..(4DS,5D,5DS)..(EUR,GEN,SA,SAA) |
1 | ||
| 61302 - PILLAR SUB-ASSY, CENTER BODY, LH | ||||
| 61302-12180 |
AE8#,CE80,EE80..(4DS,5D,5DS)..(EUR,GEN,SA) |
1 | ||
| 61343 - PILLAR, CENTER BODY, INNER UPPER RH | ||||
| 61341-12060 |
AE8#,CE80,EE80..(4DS,5D,5DS)..(EUR,GEN,SA,SAA) |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-12900 |
AE8#,CE80,EE80..(4DS,5D,5DS)..(EUR,GEN,SA) |
1 | ||
| 61344 - PILLAR, CENTER BODY, INNER UPPER LH | ||||
| 61342-12060 |
AE8#,CE80,EE80..(4DS,5D,5DS)..(EUR,GEN,SA,SAA) |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-12900 |
AE8#,CE80,EE80..(4DS,5D,5DS)..(EUR,GEN,SA) |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-12290 |
AE8#,CE80,EE80..4DS,5D,5DS |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-12290 |
AE8#,CE80,EE80..4DS,5D,5DS |
1 | ||
| 61418A - REINFORCEMENT, ROCKER PANEL, RH | ||||
| 61418-12070 |
AE8#,CE80,EE80..(4DS,5D,5DS)..(ARL,EUR,GEN,SA) |
1 | ||
| 61419A - REINFORCEMENT, ROCKER PANEL, LH | ||||
| 61419-12070 |
AE8#,CE80,EE80..(4DS,5D,5DS)..(ARL,EUR,GEN,SA) |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-1E120 |
AE8#,CE80..4DS..EUR |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-1A520 |
AE8#,CE80..4DS..EUR |
1 | ||
| 61602-1A420 |
AE8#,CE80..4DS..EUR |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-12160 |
AE8#,CE80,EE80..4DS,5D,5DS *GIS |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-12160 |
AE8#,CE80,EE80..4DS,5D,5DS *GIS |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-12901 |
AE82..4DS..4FC..ARL;AE8#,CE80,EE80..4DS..(GL,GT,SE) |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-12901 |
AE82..4DS..4FC..ARL;AE8#,CE80,EE80..4DS..(GL,GT,SE) |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-12939 |
AE8#,CE80,EE80..4DS..(EUR,GEN,SA,SAA) |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-12941 |
AE8#,CE80,EE80..4DS..(EUR,GEN,SA,SAA) |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-12190 |
AE8#,CE80,EE80..4DS..(EUR,GEN,SA,SAA) |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-12160 |
AE8#,CE80,EE80..4DS..(EUR,GEN,SA,SAA) |
1 | ||
| 61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH | ||||
| 61768-12090 |
AE8#,CE80,EE80..4DS..(ARL,EUR,SA) |
1 | ||
| 61769B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH | ||||
| 61769-12060 |
AE8#,CE80,EE80..4DS..(ARL,EUR,SA) |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12010 |
AE8#,CE80,EE80 |
4 | ||
| 64211 - STRAINER, PACKAGE TRAY TO FLOOR, RH | ||||
| 64211-12060 |
AE8#,CE80,EE80..4DS |
1 | ||
| 64212 - STRAINER, PACKAGE TRAY TO FLOOR, LH | ||||
| 64212-12060 |
AE8#,CE80,EE80..4DS |
1 | ||
| 64312 - BRACKET, PACKAGE TRAY, RH | ||||
| 64312-12900 |
AE8#,CE80,EE80..4DS |
1 | ||
| 64313 - BRACKET, PACKAGE TRAY, LH | ||||
| 64313-12900 |
AE8#,CE80,EE80..4DS |
1 | ||
| Common parts | ||||
| 90179-08025 | ||||
| 90950-01056 | ||||
| 90950-01126 | ||||
| 90950-01327 | ||||
| 91631-40612 | ||||
| 91656-60818 | ||||

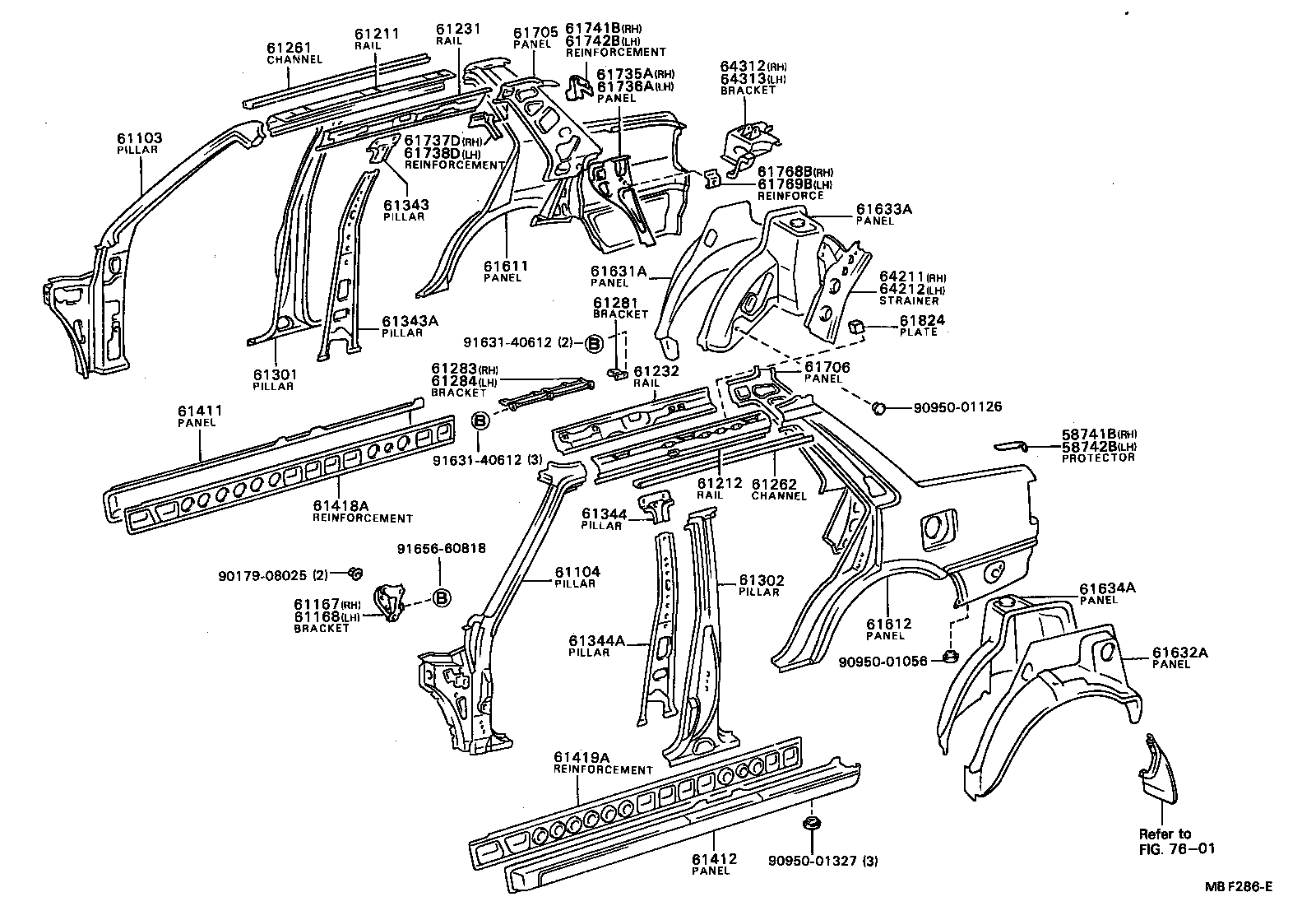

| Linked diagrams | ||||
| 7601 | ||||
