AE80L-EEMNSW (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Oct 1984
Engine 2AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

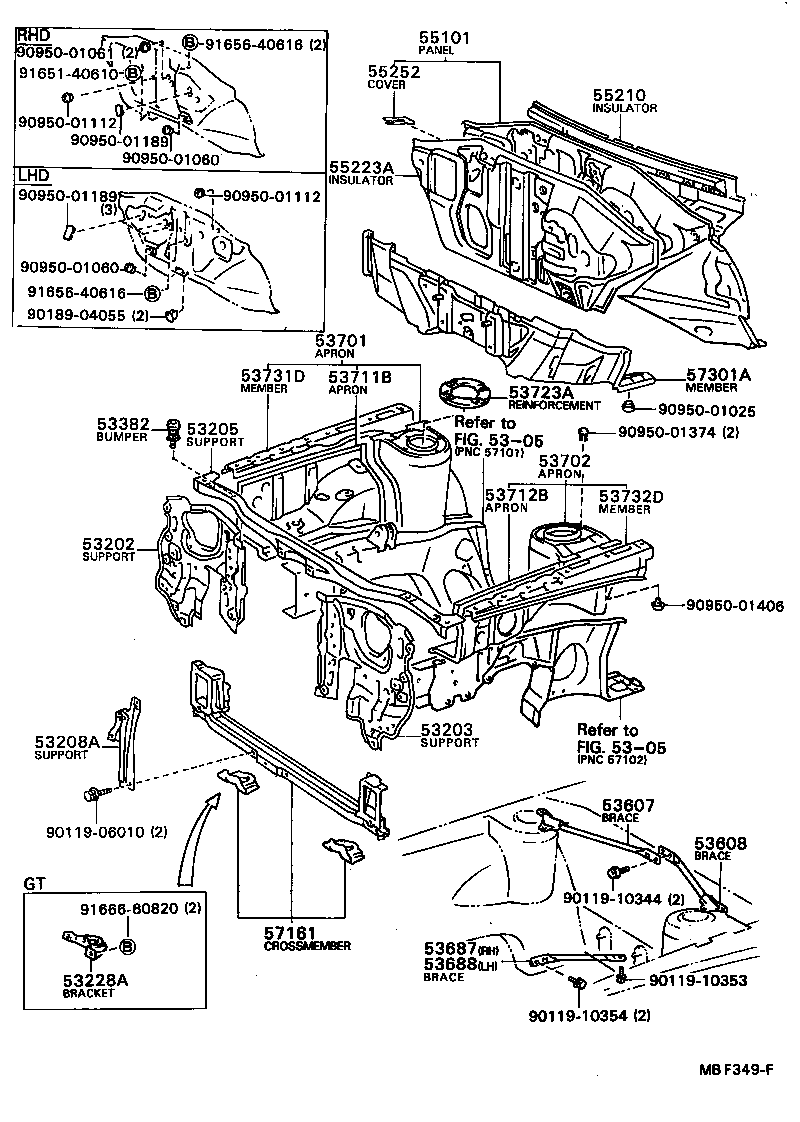

Click highlighted areas on diagram

diagram 5305 5305 53202 53203 53205 53208A 53228A 53382 53607 53608 53687 53688 53701 53702 53711B 53712B 53723A 53731D 53732D 55101 55210 55223A 55252 57161 57301A 9011906010 9011910344 9011910353 9011910354 9018904055 9095001025 9095001060 9095001060 9095001061 9095001112 9095001112 9095001189 9095001189 9095001374 9095001406 9165140610 9165640616 9165640616 9166660820
Part # Description Qty Price
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53211-12230

AE8#..MTM

 1
53211-12231

AE8#..MTM

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-12210

AE8#,CE80

 1
53203-12220

AE8#,CE80..EUR

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53216-12905

AE8#..MTM

 1
53216-12911

AE8#..MTM

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53208-12250

AE8#,CE80

 1
53208-12320

AE8#,CE80

 1
53382 - BUMPER, HOOD, FRONT
53382-12050

AE8#,CE80,EE80

 2
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-12770

AE8#,CE80

 1
53701-12820

AE8#..EUR,SAA

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-12760

AE8#;CE80..GEN

 1
53702-12760

AE8#,CE80

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-12180

AE8#,CE80,EE80

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-12160

AE8#,CE80,EE80

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-12110

AE8#,CE80,EE80

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-12100

AE8#,CE80,EE80

 1
55101 - PANEL SUB-ASSY, DASH
55101-12810

AE8#,CE80,EE80..LHD..(DX,GL,STD)..EUR

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-12320

AE8#,CE80,EE80..LHD..MTM

 1
55252 - COVER, DASH PANEL HOLE
55129-16010

AE8#,CE80,EE80

 2
57161 - CROSSMEMBER, FRONT
57161-12906

AE8#,CE80..EUR,GEN,SA

*GIS

 1
57301A - MEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT
57301-12050

AE8#,CE80..LHD..EUR

 1
57301-12050

AE8#,CE80..LHD..(EUR,GEN)

 1
Common parts
90119-06010
90119-10344
90119-10353
90119-10354
90189-04055
90950-01025
90950-01060
90950-01061
90950-01112
90950-01189
90950-01374
90950-01406
91651-40610
91656-40616
91666-60820
Linked diagrams
5305
