AE80L-EEMNSW (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Oct 1984
Engine 2AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )AE8#,EE80..MTM

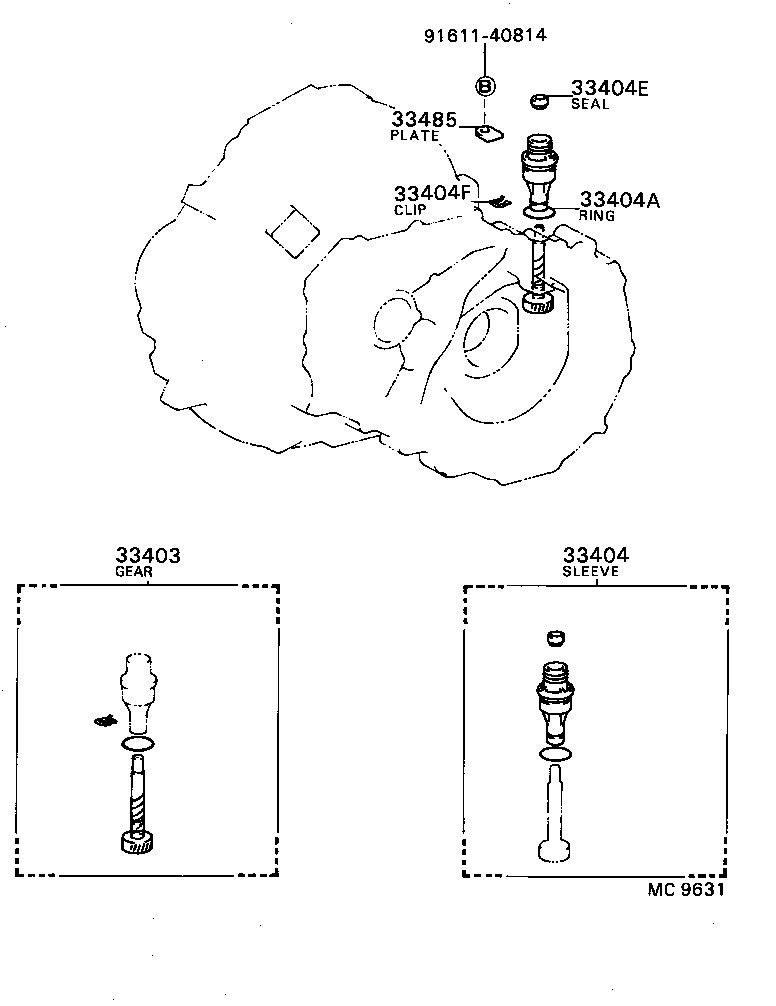

Click highlighted areas on diagram

diagram 33403 33404 33404A 33404E 33404F 33485 9161140814
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-19285

AE8#,EE80..MTM..(ARL,EUR,GEN,SAA)

N=31,MARK 31:35,N=31

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-12030

AE8#,EE80..MTM

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
96711-24030

AE8#,EE80..MTM

 1
33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90310-09001

AE8#,CE80,EE80..MTM

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

AE8#,CE80,EE80..MTM

 1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-30020

AE8#,EE80..MTM

 1
Common parts
91611-40814
