AE80L-EEMNS (1983)
Toyota Corolla Sed/Lb
(8305- )4DS,5D,5DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68750 - HINGE ASSY, REAR DOOR, UPPER RH | ||||
| 68750-32010 |
AE8#,CE80 T=5.0 |
1 | ||
| 68750-20050 |
AE8#,CE80,EE80..4DS,5D,5DS T=4.0 |
1 | ||
| 68760 - HINGE ASSY, REAR DOOR, UPPER LH | ||||
| 68760-20040 |
AE8#,CE80,EE80..4DS,5D,5DS T=4.0 |
1 | ||
| 68770 - HINGE ASSY, REAR DOOR, LOWER RH | ||||
| 68770-12040 |
AE8#,CE80,EE80..4DS,5D,5DS T=4.0 |
1 | ||
| 68770-12030 |
AE8#,CE80 T=5.0 |
1 | ||
| 68780 - HINGE ASSY, REAR DOOR, LOWER LH | ||||
| 68780-12030 |
AE8#,CE80,EE80..4DS,5D,5DS T=4.0 |
1 | ||
| 69270 - HANDLE ASSY, REAR DOOR WINDOW REGULATOR | ||||
| 69260-1402034 |
AE8#,CE80..GEN,SAA BLUE,BLUE,TRIM8# |
2 | ||
| 69260-1402012 |
AE8#,CE80..GEN,SAA MAROON,RED/MAROON,TRIM3# |
2 | ||
| 69260-1206005 |
AE8#,CE80..GEN,SAA BEIGE,BEIGE,TRIM3# |
2 | ||
| 69260-1402023 |
AE8#,CE80..GEN,SAA GRAY,GRAY,TRIM1# |
2 | ||
| 69260-1206004 |
AE8#,CE80..GEN,SAA BLUE,BLUE,TRIM8# |
2 | ||
| 69260-1402025 |
AE8#,CE80..GEN,SAA BEIGE,BEIGE,TRIM3# |
2 | ||
| 69260-1206003 |
AE8#,CE80..GEN,SAA GRAY,GRAY,TRIM1# |
2 | ||
| 69270B - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE) | ||||
| 90520-01002 |
AE8#,CE80,EE80..4DS,5D,5DS |
2 | ||
| 69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE | ||||
| 69268-16010 |
AE8#,CE80,EE80..4DS,5D,5DS |
2 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69830-12090 |
AE8#,CE80,EE80..4DS,5D,5DS |
1 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69830-12090 |
AE8#,CE80,EE80..4DS,5D,5DS |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69840-12090 |
AE8#,CE80,EE80..4DS,5D,5DS |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69840-12090 |
AE8#,CE80,EE80..4DS,5D,5DS |
1 | ||
| 69903 - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH | ||||
| 69905-12080 |
AE8#,CE80..EUR,GEN,SAA W/GLASS,T=3.5 |
1 | ||
| 69905-12090 |
AE8#,CE80,EE80..(4DS,5D,5DS)..(ARL,GEN,SA) W/GLASS,T=4.0 |
1 | ||
| 69904 - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH | ||||
| 69906-12070 |
AE8#,CE80..EUR,GEN,SAA W/GLASS,T=3.5 |
1 | ||
| 69906-12080 |
AE8#,CE80,EE80..(4DS,5D,5DS)..(ARL,GEN,SA) W/GLASS,T=4.0 |
1 | ||
| 69975A - FILLER, REAR DOOR GLASS CHANNEL | ||||
| 69975-22020 |
AE8#,CE80,EE80..4DS,5D,5DS |
2 | ||
| Common parts | ||||
| 90119-08093 | ||||
| 90168-50024 | ||||
| 91511-40608 | ||||
| 91651-40610 | ||||
| Linked diagrams | ||||

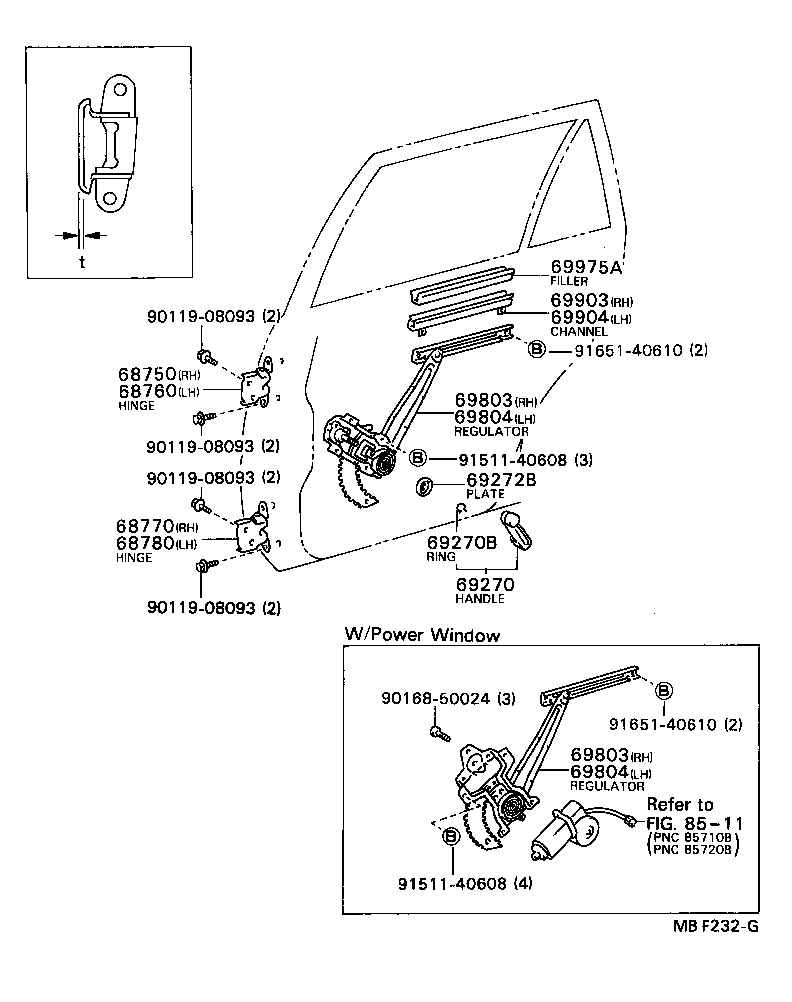

| 8511 | ||||
