AE80L-EEMNS (1983)
Toyota Corolla Sed/Lb
(8305- )4DS,5D,5DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68710 - HINGE ASSY, FRONT DOOR, UPPER RH | ||||
| 68710-12090 |
AE8#,CE80,EE80 T=4.0 |
1 | ||
| 68710-12080 |
AE8#,CE80 T=5.0 |
1 | ||
| 68720 - HINGE ASSY, FRONT DOOR, UPPER LH | ||||
| 68720-12090 |
AE8#,CE80,EE80 T=4.0 |
1 | ||
| 68730 - HINGE ASSY, FRONT DOOR, LOWER RH | ||||
| 68730-32010 |
AE8#,CE80 T=5.0 |
1 | ||
| 68730-24010 |
AE8#,CE80,EE80 T=4.0 |
1 | ||
| 68740 - HINGE ASSY, FRONT DOOR, LOWER LH | ||||
| 68740-24010 |
AE8#,CE80,EE80 T=4.0 |
1 | ||
| 69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR | ||||
| 69260-1206003 |
AE8#,CE80..GEN,SAA GRAY,GRAY,TRIM1# |
2 | ||
| 69260-1206005 |
AE8#,CE80..GEN,SAA BEIGE,BEIGE,TRIM3# |
2 | ||
| 69260-1402025 |
AE8#,CE80..GEN,SAA BEIGE,BEIGE,TRIM3# |
2 | ||
| 69260-1206004 |
AE8#,CE80..GEN,SAA BLUE,BLUE,TRIM8# |
2 | ||
| 69260-1402023 |
AE8#,CE80..GEN,SAA GRAY,GRAY,TRIM1# |
2 | ||
| 69260-1402012 |
AE8#,CE80..GEN,SAA MAROON,RED/MAROON,TRIM3# |
2 | ||
| 69260-1402034 |
AE8#,CE80..GEN,SAA BLUE,BLUE,TRIM8# |
2 | ||
| 69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE | ||||
| 90520-01002 |
AE8#,CE80,EE80 |
2 | ||
| 69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE | ||||
| 69268-16010 |
AE8#,CE80,EE80 |
2 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69810-12180 |
AE8#,CE80,EE80..4DS,5D,5DS |
1 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69810-12180 |
AE8#,CE80,EE80..4DS,5D,5DS |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69820-12170 |
AE8#,CE80,EE80..4DS,5D,5DS |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69820-12170 |
AE8#,CE80,EE80..4DS,5D,5DS |
1 | ||
| 69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH | ||||
| 69901-12160 |
AE8#,CE80,EE80..ARL,GEN,SA W/GLASS,T=4.0 |
1 | ||
| 69901-12150 |
AE8#,CE80..EUR,GEN,SAA W/GLASS,T=3.5 |
1 | ||
| 69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH | ||||
| 69902-12090 |
AE8#,CE80..EUR,GEN,SAA W/GLASS,T=3.5 |
1 | ||
| 69902-12100 |
AE8#,CE80,EE80..ARL,GEN,SA W/GLASS,T=4.0 |
1 | ||
| 69971A - FILLER, FRONT DOOR GLASS CHANNEL | ||||
| 69971-12040 |
AE8#,CE80,EE80 |
2 | ||
| Common parts | ||||
| 90105-08077 | ||||
| 90119-08093 | ||||
| 90168-50024 | ||||
| 91511-60610 | ||||
| 91651-40610 | ||||

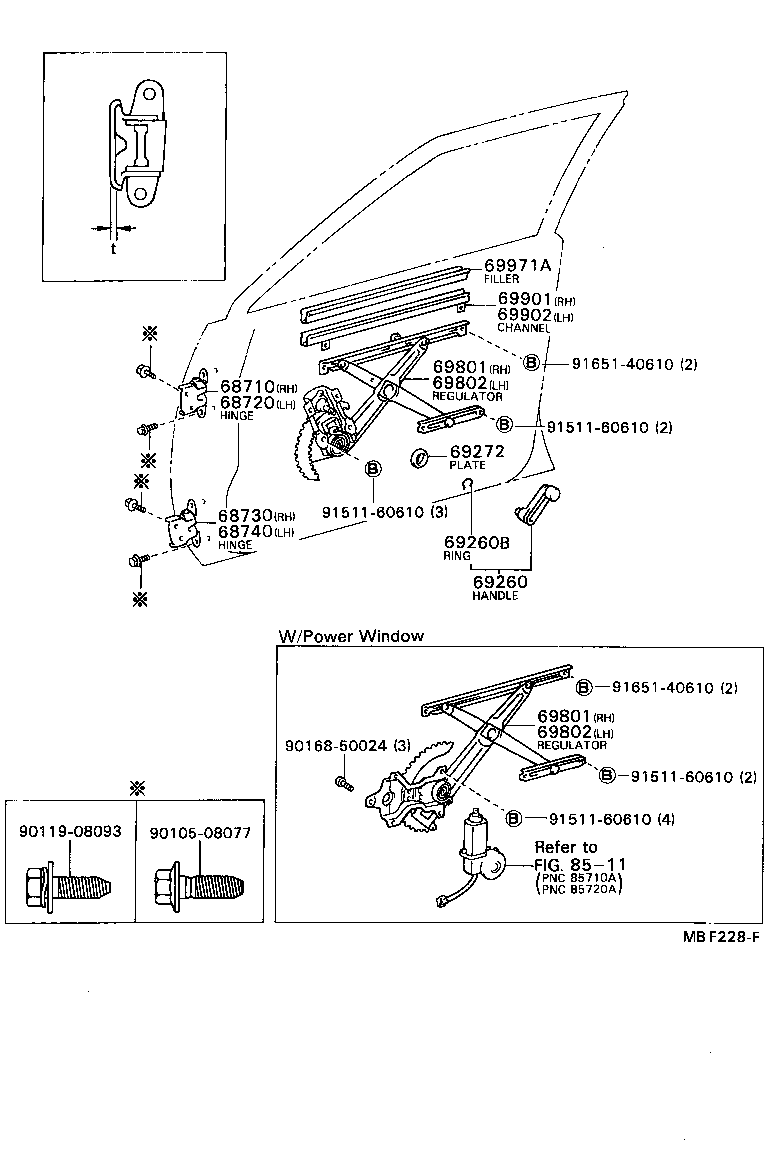

| Linked diagrams | ||||
| 8511 | ||||
