AE80L-EEMNS (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Oct 1984
Engine 2AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

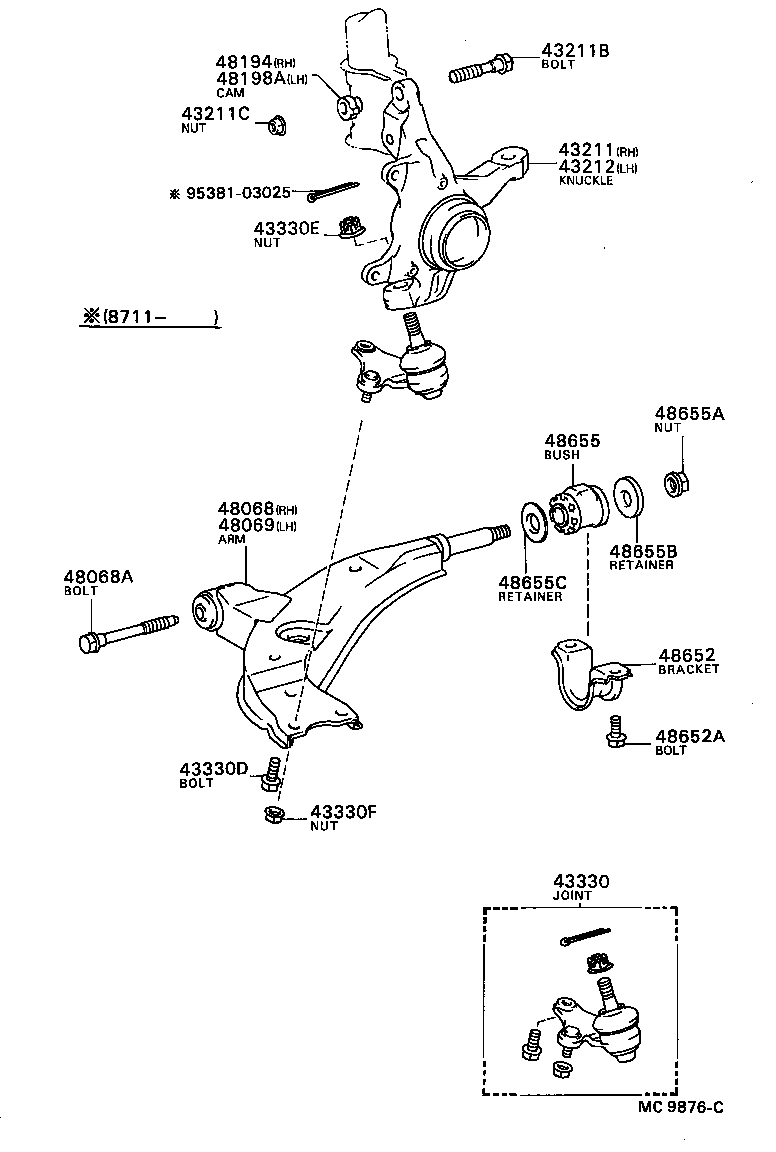

Click highlighted areas on diagram

diagram 43211 43211B 43211C 43212 43330 43330D 43330E 43330F 48068 48068A 48069 48194 48198A 48652 48652A 48655 48655A 48655B 48655C 9538103025
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-12070

AE8#,EE80..CS,CSX,DX,GL,S,SE,STD,XL

 1
43211B - BOLT (FOR ABSORBER SETTING)
90105-12042

AE8#,EE80..CS,CSX,DX,GL,S,SE,STD,XL

 4
43211C - NUT (FOR ABSORBER SETTING)
90179-12025

AE8#,EE80..CS,CSX,DX,GL,S,SE,STD,XL

 4
43212 - KNUCKLE, STEERING, LH
43212-12030

AE8#,EE80..CS,CSX,DX,GL,S,SE,STD,XL

 1
43330 - JOINT ASSY, LOWER BALL, FRONT
43330-29135

AE8#,CE80

 2
43330-29136

AE8#,CE80

 2
43330D - BOLT (FOR FRONT LOWER BALL JOINT)
90105-10069

AE8#,CE80,EE80

 2
43330E - NUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)
90179-14015

AE8#,CE80,EE80

 1
43330F - NUT (FOR FRONT LOWER BALL JOINT SETTING)
90179-10054

AE8#,CE80,EE80

 4
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-20150

AE8#,CE80,EE80

 1
48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM)
90105-12081

AE8#,CE80,EE80

 2
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-20150

AE8#,CE80,EE80

 1
48194 - CAM, CAMBER ADJUST, RH
48194-16010

AE8#,EE80..CS,CSX,DX,GL,S,STD,XL

 1
48198A - CAM, CAMBER ADJUST, LH
48198-16010

AE8#,EE80..CS,CSX,DX,GL,S,STD,XL

 1
48652 - BRACKET, FRONT LOWER ARM
48652-20030

AE8#,CE80,EE80

 2
48652A - BOLT(FOR FRONT LOWER ARM BRACKET)
90105-12061

AE8#,CE80,EE80

 4
48655 - BUSH, LOWER ARM, NO.2
48655-20030

AE8#,CE80,EE80

 2
48655A - NUT(FOR SUSPENSION LOWER ARM BUSH NO.2)
90179-14006

AE8#,CE80,EE80

 2
48655B - RETAINER, CUSHION, NO.1(FOR SUSPENSION LWR ARM BUSH NO.
90948-02060

AE8#,CE80,EE80

 2
48655C - RETAINER, CUSHION, NO.2(FOR SUSPENSION LWR ARM BUSH NO.
90948-02061

AE8#,CE80,EE80

 2
Common parts
95381-03025
