AE80L-EEMNS (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Oct 1984
Engine 2AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )2AL,4AL

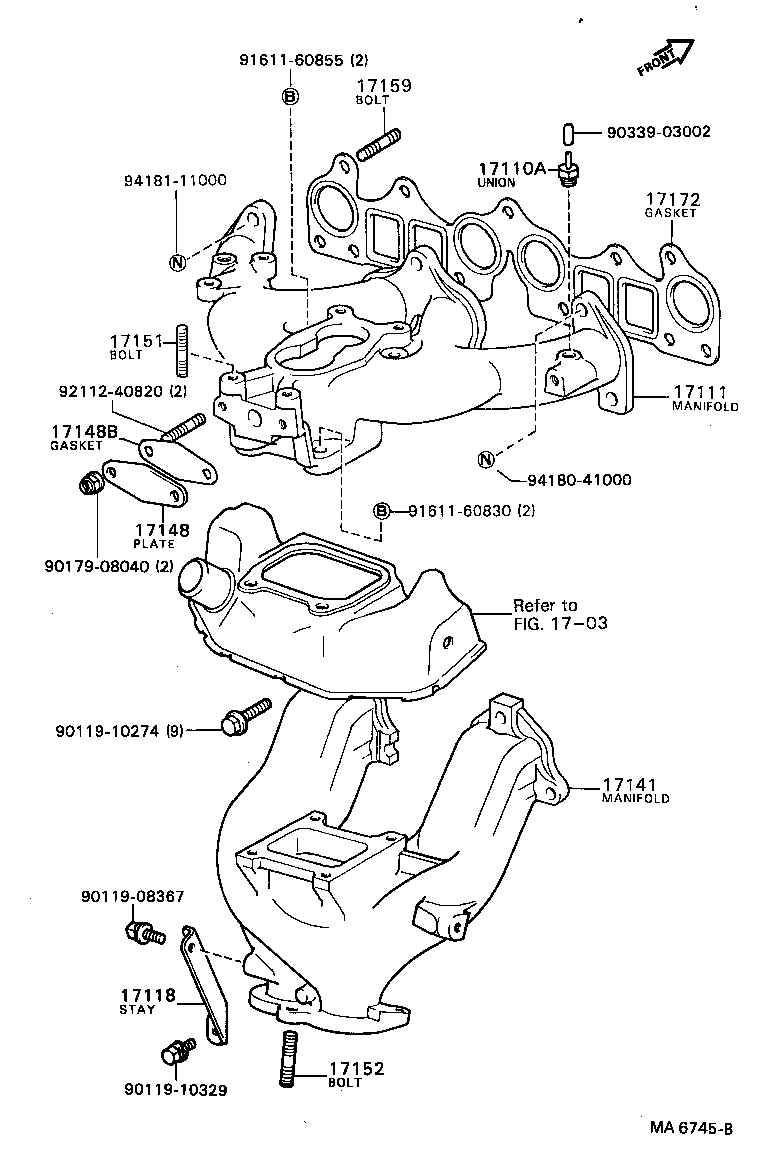

Click highlighted areas on diagram

diagram 1703 17110A 17111 17118 17141 17148 17148B 17151 17152 17159 17172 9011908367 9011910274 9011910329 9017908040 9033903002 9161160830 9161160855 9211240820 9418041000 9418111000
Part # Description Qty Price
17110A - UNION, VACUUM HOSE
90404-51093

2AL..AE80..GEN

 1
90404-51010

2AL..AE80..GEN,SAA

 1
17111 - MANIFOLD, INTAKE
17111-15030

2AL#,4AL#..AE8#

 1
17118 - STAY, MANIFOLD
17118-16030

2AL,4AL..AE8#

 1
17141 - MANIFOLD, EXHAUST
17141-16030

2AL,4AL..AE8#

 1
17148 - PLATE, EXHAUST MANIFOLD(FOR EGR INLET)
25617-14010

2AL,4AL..AE8#

 1
17148B - GASKET, EGR INLET
25629-15011

2AL,4AL..AE8#

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
92112-40832

2AL#,4AL#..AE8#

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

2AL#,4AG#,4AL#..AE8#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-61032

2AL#,4AL#..AE8#

 2
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-14010

2AL#,4AL..AE8#;4ALC..AE82..ARL;4ALC..AE82..SDZ

 1
Common parts
90119-08367
90119-10274
90119-10329
90179-08040
90339-03002
91611-60830
91611-60855
92112-40820
94180-41000
94181-11000
Linked diagrams
1703
