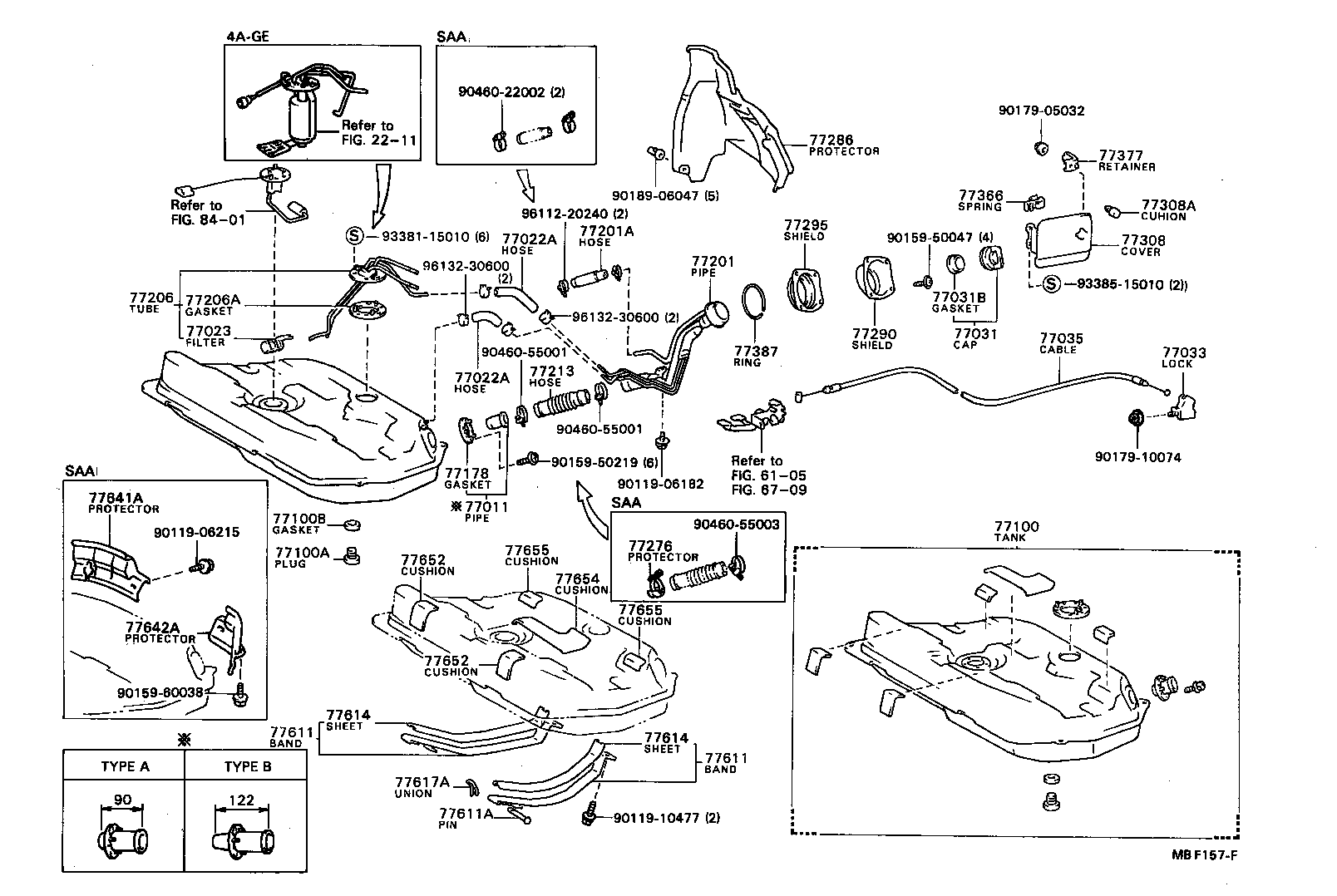

AE80L-EEKRS (1983)
Toyota Corolla Sed/Lb
(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-16030 |
AE8#,CE80,EE80 TYPE A |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06020 |
AE8#,CE80 *H,L=130 |
2 | ||
| 95332-06020 |
AE8#,CE80 *H,L=140 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06020 |
AE8#,CE80 *H,L=130 |
2 | ||
| 95332-06020 |
AE8#,CE80 *H,L=140 |
2 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
AE8#,EE80..CS,CSX,DX,GL,S,SE,STD,XL |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
AE80,EE80;AE82..(DX,GL)..(GEN,SA);AE82..CS,CSX,GT,S,STD,XL;AE82..(DX,GL)..(EUG,SDZ) |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
AE80,CE80,EE80;AE82..(DX,GL)..(GEN,SA);AE82..CS,CSX,GT,S,STD,XL;AE82..(DX,GL)..(EUG,SDZ) |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-19405 |
AE8# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
AE8#,CE80 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
AE8#,CE80 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-13020 |
AE8#,CE80,EE80 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77210-12010 |
AE8#,CE80,EE80 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 77259-16010 |
AE8#,CE80,EE80 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-16030 |
AE8# |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77178-10010 |
AE8#,EE80..CS,CSX,DX,GL,S,SE,STD,XL |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-16031 |
AE8#,CE80,EE80 |
1 | ||
| 77286 - PROTECTOR, FUEL TANK INLET PIPE | ||||
| 77277-12050 |
AE8#,CE80,EE80..4DS,5D |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-12020 |
AE8#,CE80,EE80 |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77293-16010 |
AE8#,CE80,EE80 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-12060 |
AE8#,CE80,EE80..(CS,DX,S,STD,XL)..(ARL,GEN,SA,SAA) W/O OPENER |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08010 |
AE8#,CE80,EE80 |
2 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
AE8#,CE80,EE80 |
1 | ||
| 77387 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
AE8#,CE80,EE80 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77602-16020 |
AE8#,CE80..EUR,GEN,SA LH |
1 | ||
| 77601-16020 |
AE8#,CE80..EUR,GEN,SA RH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77602-16020 |
AE8#,CE80..EUR,GEN,SA LH |
1 | ||
| 77601-16020 |
AE8#,CE80..EUR,GEN,SA RH |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08020 |
AE8#,CE80,EE80 |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77681-16020 |
AE8#,CE80,EE80 |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77681-16020 |
AE8#,CE80,EE80 |
2 | ||
| 77617A - UNION, AUXILIARY FUEL BAND | ||||
| 77617-12010 |
AE8#,CE80,EE80 |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-16050 |
AE8#,CE80,EE80 |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-16050 |
AE8#,CE80,EE80 |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77653-16020 |
AE8#,CE80,EE80 |
1 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77654-16010 |
AE8#,CE80,EE80 |
2 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77654-16010 |
AE8#,CE80,EE80 |
2 | ||
| Common parts | ||||
| 90119-06182 | ||||
| 90119-06215 | ||||
| 90119-10477 | ||||
| 90159-50047 | ||||
| 90159-50219 | ||||
| 90159-60038 | ||||
| 90179-05032 | ||||
| 90179-10074 | ||||
| 90189-06047 | ||||
| 90460-22002 | ||||
| 90460-55001 | ||||
| 90460-55003 | ||||
| 93381-15010 | ||||
| 93385-15010 | ||||
| 96112-20240 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 6105 | ||||
| 6709 | ||||
| 8401 | ||||
(8305-8401)AE8# ; (8401- )AE80..EUR,GEN,SA ;(8401- )AE82..DX,GL..EUG,SDZ ; (
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-22020 |
AE8#,CE80 |
1 | ||
| 77135-22020 |
AE8#,CE80 |
1 | ||
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-22020 |
AE8#,CE80 |
1 | ||
| 77135-22020 |
AE8#,CE80 |
1 | ||
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-22020 |
AE8#,CE80 |
1 | ||
| 77135-22020 |
AE8#,CE80 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-12180 |
AE8# |
1 | ||
| 77205-12180 |
AE8# |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
AE8#,EE80..CS,CSX,DX,GL,S,SE,STD,XL *H,L=150 |
1 | ||
| 95332-06020 |
AE8#,EE80..CS,CSX,DX,GL,S,SE,STD,XL *H,L=150 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
AE8# *H,L=130 |
1 | ||
| 95332-06020 |
AE8# *H,L=130 |
1 | ||
| 95332-06020 |
AE8# *H,L=140 |
1 | ||
| 95332-06020 |
AE8# *H,L=140 |
1 | ||
| 77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3) | ||||
| 95332-06020 |
AE8#,CE80..EUR,GEN *H,L=130 |
1 | ||
| 95332-06020 |
AE8#,CE80..EUR,GEN *H,L=130 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12020 |
AE8#,CE80,EE80 |
1 | ||
| 77266-12020 |
AE8#,CE80,EE80 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-12040 |
AE8#,CE80,EE80 |
1 | ||
| 77267-12040 |
AE8#,CE80,EE80 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77207-12030 |
AE8#..LHD |
1 | ||
| 77207-12030 |
AE8#..LHD |
1 | ||
| 77207-12030 |
AE8#..LHD..(EUR,GEN) |
1 | ||
| 77207-12030 |
AE8#..LHD..(EUR,GEN) |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-15060 |
AE8#..LHD |
1 | ||
| 23271-15060 |
AE8#..LHD |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-04020 |
AE8#..CS,CSX,DX,GL,S,STD,XL *H,L=160 |
1 | ||
| 95332-04020 |
AE8#..CS,CSX,DX,GL,S,STD,XL *H,L=160 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-12010 |
AE8#,CE80,EE80 |
1 | ||
| 77284-12010 |
AE8#,CE80,EE80 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
AE8#,CE80 |
1 | ||
| 90917-10020 |
AE8#,CE80 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
AE8#,CE80 |
1 | ||
| 90917-10020 |
AE8#,CE80 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
AE8#,CE80 |
1 | ||
| 90917-10020 |
AE8#,CE80 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95332-06020 |
AE8#,CE80 *H,L=130 |
1 | ||
| 95332-06020 |
AE8#,CE80 *H,L=130 |
1 | ||
| 95332-06010 |
AE8#,CE80 *H,L=80 |
1 | ||
| 95332-06010 |
AE8#,CE80 *H,L=80 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95332-06020 |
AE8#,CE80 *H,L=130 |
1 | ||
| 95332-06020 |
AE8#,CE80 *H,L=130 |
1 | ||
| 95332-06010 |
AE8#,CE80 *H,L=80 |
1 | ||
| 95332-06010 |
AE8#,CE80 *H,L=80 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95332-06020 |
AE8#,CE80 *H,L=130 |
1 | ||
| 95332-06020 |
AE8#,CE80 *H,L=130 |
1 | ||
| 95332-06010 |
AE8#,CE80 *H,L=80 |
1 | ||
| 95332-06010 |
AE8#,CE80 *H,L=80 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95332-06020 |
AE8#,CE80 *H,L=130 |
1 | ||
| 95332-06020 |
AE8#,CE80 *H,L=130 |
1 | ||
| 95332-06010 |
AE8#,CE80 *H,L=80 |
1 | ||
| 95332-06010 |
AE8#,CE80 *H,L=80 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95332-06020 |
AE8#,CE80 *H,L=130 |
1 | ||
| 95332-06020 |
AE8#,CE80 *H,L=130 |
1 | ||
| 95332-06010 |
AE8#,CE80 *H,L=80 |
1 | ||
| 95332-06010 |
AE8#,CE80 *H,L=80 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95332-06020 |
AE8#,CE80 *H,L=130 |
1 | ||
| 95332-06020 |
AE8#,CE80 *H,L=130 |
1 | ||
| 95332-06010 |
AE8#,CE80 *H,L=80 |
1 | ||
| 95332-06010 |
AE8#,CE80 *H,L=80 |
1 | ||
| Common parts | ||||
| 90480-01217 | ||||
| 90959-01100 | ||||
| 90959-01101 | ||||
| 90959-01102 | ||||
| 90959-01103 | ||||
| 91651-40614 | ||||
| 93312-14010 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
(8411- )CS,CSX,S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-12180 |
AE8# |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
AE8#,EE80..CS,CSX,DX,GL,S,SE,STD,XL *H,L=150 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
AE8# *H,L=130 |
1 | ||
| 95332-06020 |
AE8# *H,L=140 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12020 |
AE8#,CE80,EE80 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-12040 |
AE8#,CE80,EE80 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77207-12030 |
AE8#..LHD |
1 | ||
| 77207-12030 |
AE8#..LHD..(EUR,GEN) |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-15060 |
AE8#..LHD |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-04020 |
AE8#..CS,CSX,DX,GL,S,STD,XL *H,L=160 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-12010 |
AE8#,CE80,EE80 |
1 | ||
| Common parts | ||||
| 90119-06092 | ||||
| 90467-13027 | ||||
| 90480-01217 | ||||
| 90959-01100 | ||||
| 90959-01101 | ||||
| 90959-01102 | ||||
| 90959-01103 | ||||
| 91651-40614 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||
