AE80L-EEKRS (1983)

Toyota Corolla Sed/Lb

Production May 1983 - May 1985
Engine 2AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )AE8#..MTM

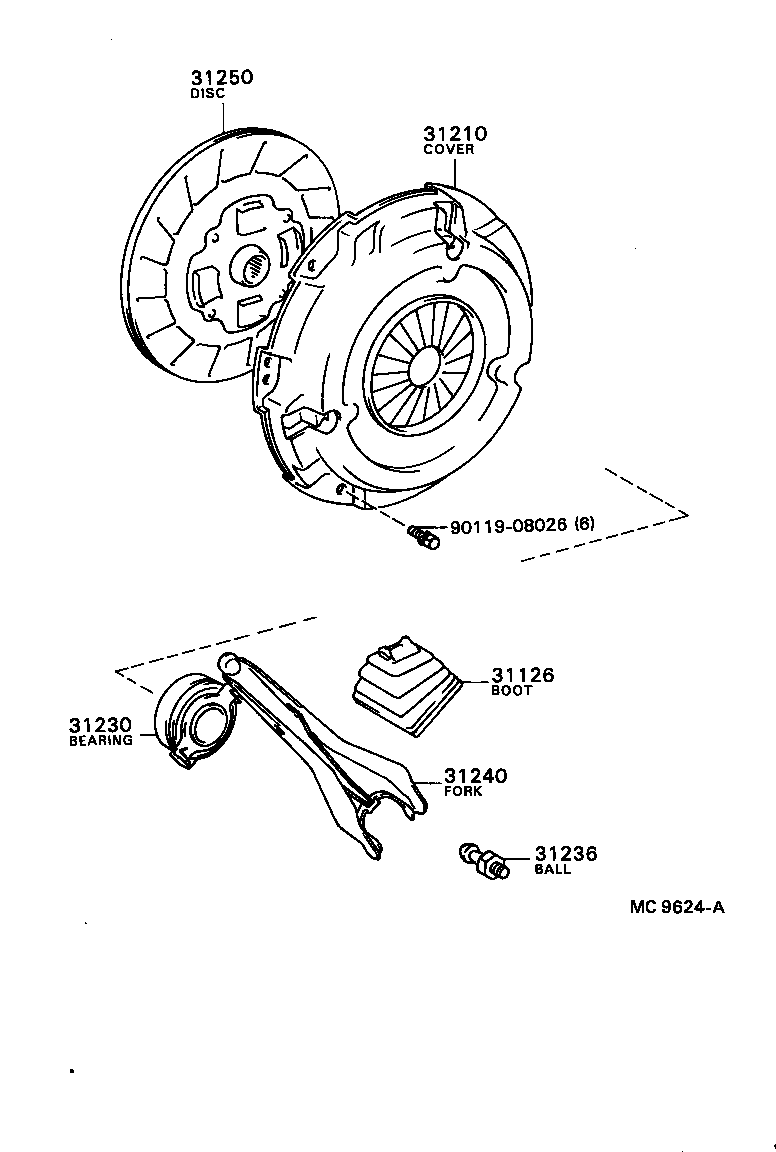

Click highlighted areas on diagram

diagram 31126 31210 31230 31236 31240 31250 9011908026
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-12050

AE8#,EE80..MTM..(EUR,GEN,SA,SAA)

 1
31210 - COVER ASSY, CLUTCH
31210-12090

AE80..MTM..(DX,GL,STD)

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-12130

AE8#,EE80..MTM..(EUR,GEN,SA,SAA)

 1
31236 - BALL, RELEASE FORK
31236-12011

AE8#,EE80..MTM

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-12050

AE8#,EE80..MTM..(EUR,GEN,SA,SAA)

 1
31250 - DISC ASSY, CLUTCH
31250-12131

AE80..MTM

 1
31250-12132

AE80..MTM

 1
Common parts
90119-08026
