AE80L-EEKRS (1983)

Toyota Corolla Sed/Lb

Production May 1983 - May 1985
Engine 2AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )2AL#,4AG#,4AL#..MTM

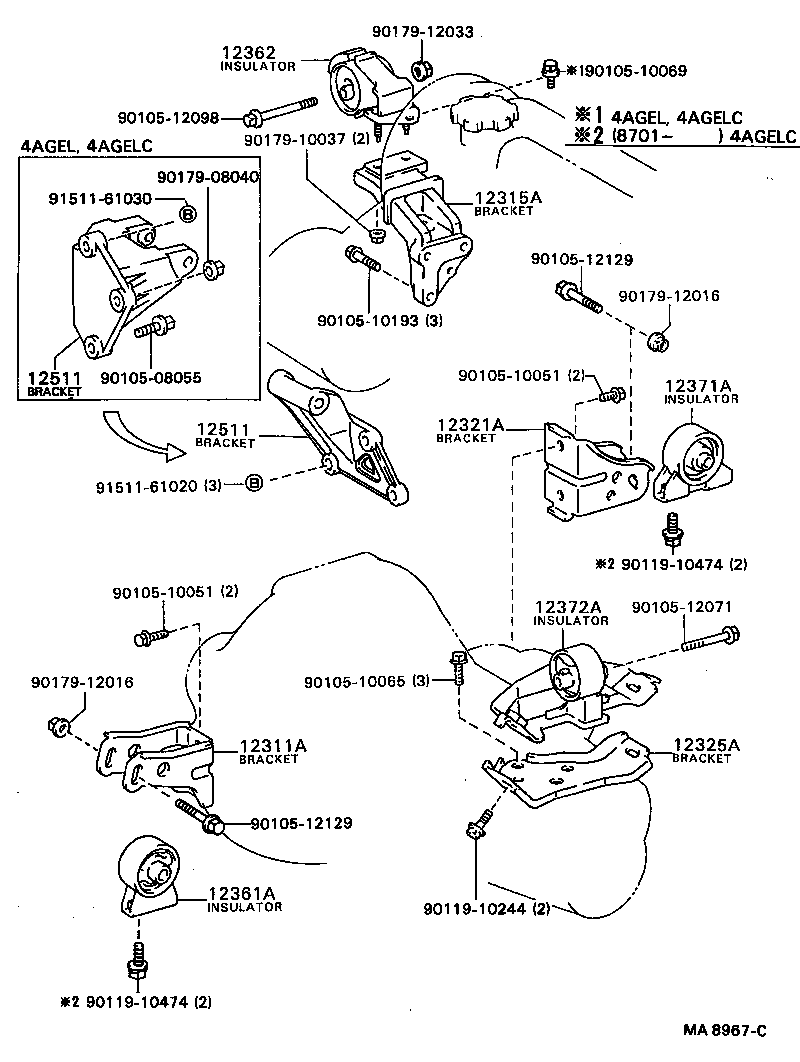

Click highlighted areas on diagram

diagram 12311A 12315A 12321A 12325A 12361A 12362 12371A 12372A 12511 12511 9010508055 9010510051 9010510051 9010510065 9010510069 9010510193 9010512071 9010512098 9010512129 9010512129 9011910244 9011910474 9011910474 9017908040 9017910037 9017912016 9017912016 9017912033 9151161020 9151161030
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-15080

2AL#,4AG#,4AL#..AE8#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-15050

2AL#,4AL#..AE8#

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-15010

2AL#,4AL#..AE8#..MTM

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-15010

2AL#,4AL#..AE8#..MTM

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-15100

2AL,4AL#..AE8#..MTM

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-15010

2AL,4AL..AE8#..GEN

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-15090

2AL,4AL#..AE8#..MTM

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-15060

2AL,4AL#..AE8#..MTM

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-15020

2AL,4AL#..AE8#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-15020

2AL,4AL#..AE8#

 1
Common parts
90105-08055
90105-10051
90105-10065
90105-10069
90105-10193
90105-12071
90105-12098
90105-12129
90119-10244
90119-10474
90179-08040
90179-10037
90179-12016
90179-12033
91511-61020
91511-61030
