AE80L-EEKDSW (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Oct 1984
Engine 2AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )2AL#,4AL ; (8305- )4ALC..ARL ; (8305- )4ALC..SDZ

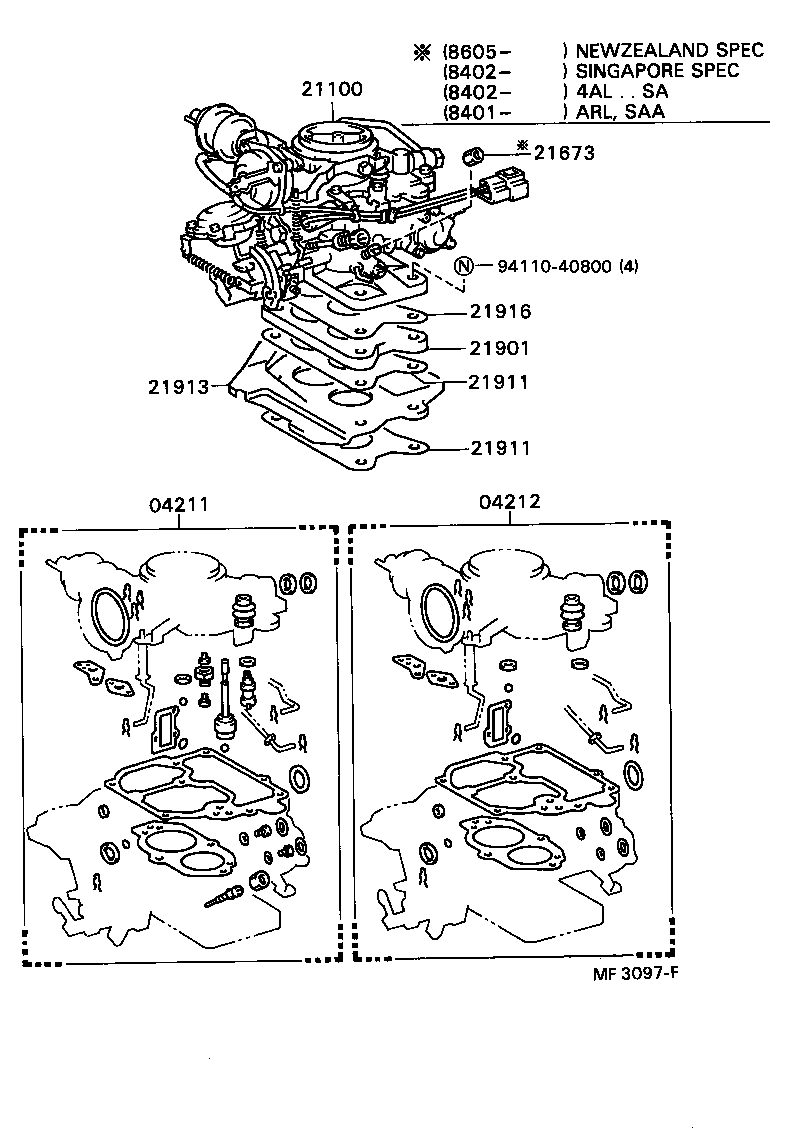

Click highlighted areas on diagram

diagram 04211 04212 21100 21673 21901 21911 21911 21913 21916 9411040800
Part # Description Qty Price
04211 - CARBURETOR KIT
04211-14070

2AL,4AL..AE8#..EUG

 1
04212 - GASKET KIT, CARBURETOR
04212-14020

2AL,4AL#..AE8#

 1
21100 - CARBURETOR ASSY
21100-14130

2AL,4AL..AE8#..EUG

 1
21901 - INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1
21901-15012

2AL#,4AL..AE8#;4ALC..AE82..ARL;4ALC..AE82..SDZ

 1
21911 - GASKET, CARBURETOR
21916-15030

2AL#,4AL#..AE8#

 2
21911 - GASKET, CARBURETOR
21916-15030

2AL#,4AL#..AE8#

 2
21913 - INSULATOR, CARBURETOR HEAT, NO.2
21913-15030

2AL#,4AL#..AE8#

 1
21916 - GASKET, CARBURETOR, NO.2
21914-15020

2AL#,4AL..AE8#;4ALC..AE82..ARL;4ALC..AE82..SDZ

 1
Common parts
94110-40800
