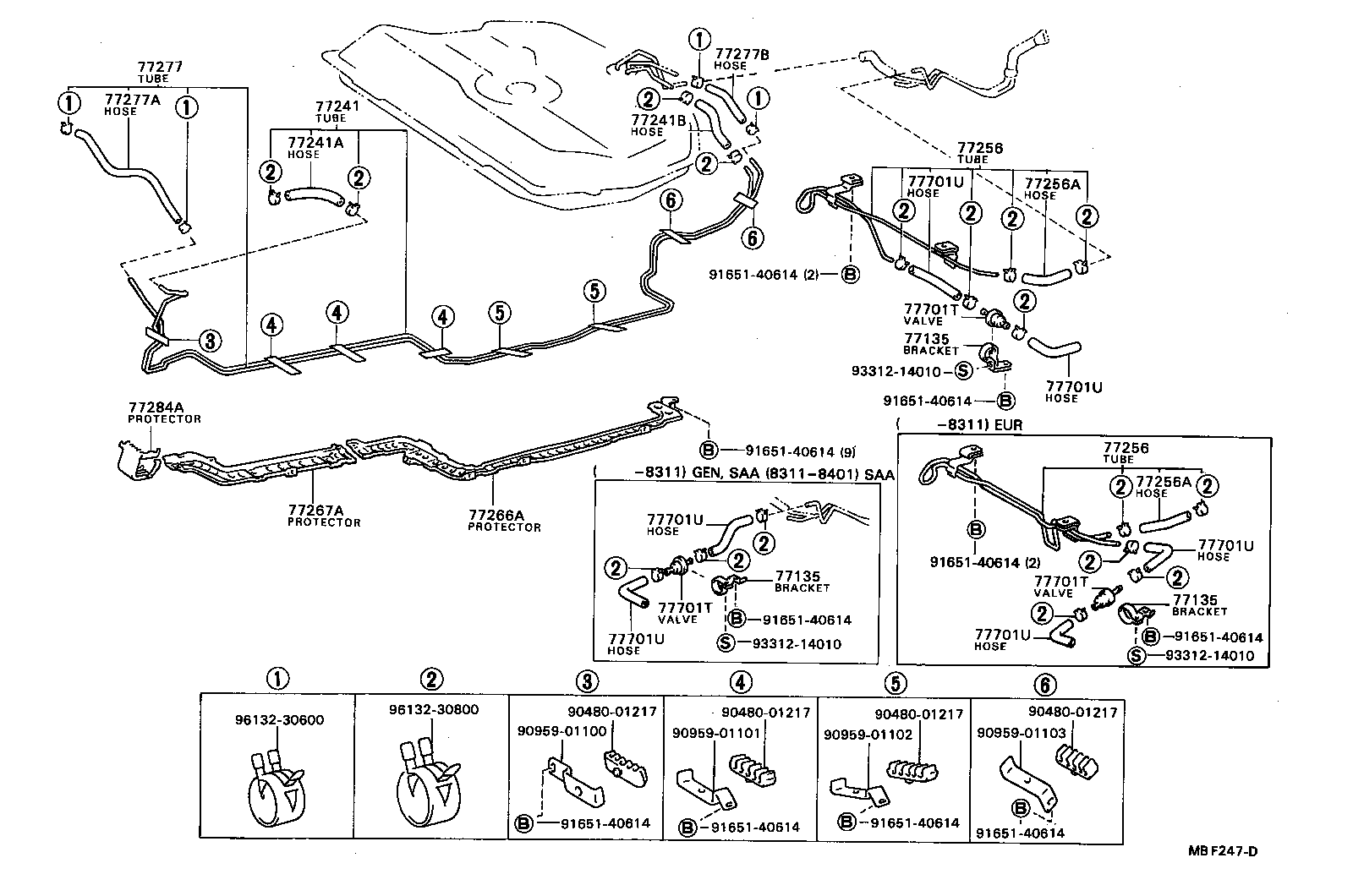

AE80L-EEKDSV (1983)
Toyota Corolla Sed/Lb
(8305-8401)AE8# ; (8401- )AE80..EUR,GEN,SA ;(8401- )AE82..DX,GL..EUG,SDZ ; (
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-22020 |
AE80..SAA |
1 | ||
| 77135-22020 |
AE80..SAA |
1 | ||
| 77135-22020 |
AE8#,CE80 |
1 | ||
| 77135-22020 |
AE8#,CE80 |
1 | ||
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-22020 |
AE80..SAA |
1 | ||
| 77135-22020 |
AE80..SAA |
1 | ||
| 77135-22020 |
AE8#,CE80 |
1 | ||
| 77135-22020 |
AE8#,CE80 |
1 | ||
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-22020 |
AE80..SAA |
1 | ||
| 77135-22020 |
AE80..SAA |
1 | ||
| 77135-22020 |
AE8#,CE80 |
1 | ||
| 77135-22020 |
AE8#,CE80 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-12180 |
AE8# |
1 | ||
| 77205-12180 |
AE8# |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
AE8#,EE80..CS,CSX,DX,GL,S,SE,STD,XL *H,L=150 |
1 | ||
| 95332-06020 |
AE8#,EE80..CS,CSX,DX,GL,S,SE,STD,XL *H,L=150 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
AE8# *H,L=130 |
1 | ||
| 95332-06020 |
AE8# *H,L=130 |
1 | ||
| 95332-06020 |
AE8# *H,L=140 |
1 | ||
| 95332-06020 |
AE8# *H,L=140 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12020 |
AE8#,CE80,EE80 |
1 | ||
| 77266-12020 |
AE8#,CE80,EE80 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-12040 |
AE8#,CE80,EE80 |
1 | ||
| 77267-12040 |
AE8#,CE80,EE80 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77207-12030 |
AE8#..LHD |
1 | ||
| 77207-12030 |
AE8#..LHD |
1 | ||
| 77207-12110 |
AE80..SAA |
1 | ||
| 77207-12110 |
AE80..SAA |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-14010 |
AE80..SAA |
1 | ||
| 23271-14010 |
AE80..SAA |
1 | ||
| 23271-15060 |
AE8#..LHD |
1 | ||
| 23271-15060 |
AE8#..LHD |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-04020 |
AE8#..CS,CSX,DX,GL,S,STD,XL *H,L=160 |
1 | ||
| 95332-04020 |
AE8#..CS,CSX,DX,GL,S,STD,XL *H,L=160 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-12010 |
AE8#,CE80,EE80 |
1 | ||
| 77284-12010 |
AE8#,CE80,EE80 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
AE8#,CE80 |
1 | ||
| 90917-10020 |
AE8#,CE80 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
AE8#,CE80 |
1 | ||
| 90917-10020 |
AE8#,CE80 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
AE8#,CE80 |
1 | ||
| 90917-10020 |
AE8#,CE80 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95332-06020 |
AE8#,CE80 *H,L=130 |
1 | ||
| 95332-06020 |
AE8#,CE80 *H,L=130 |
1 | ||
| 95332-06010 |
AE80..SAA *H,L=80 |
1 | ||
| 95332-06010 |
AE80..SAA *H,L=80 |
1 | ||
| 95332-06010 |
AE8#,CE80 *H,L=80 |
1 | ||
| 95332-06010 |
AE8#,CE80 *H,L=80 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95332-06020 |
AE8#,CE80 *H,L=130 |
1 | ||
| 95332-06020 |
AE8#,CE80 *H,L=130 |
1 | ||
| 95332-06010 |
AE80..SAA *H,L=80 |
1 | ||
| 95332-06010 |
AE80..SAA *H,L=80 |
1 | ||
| 95332-06010 |
AE8#,CE80 *H,L=80 |
1 | ||
| 95332-06010 |
AE8#,CE80 *H,L=80 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95332-06020 |
AE8#,CE80 *H,L=130 |
1 | ||
| 95332-06020 |
AE8#,CE80 *H,L=130 |
1 | ||
| 95332-06010 |
AE80..SAA *H,L=80 |
1 | ||
| 95332-06010 |
AE80..SAA *H,L=80 |
1 | ||
| 95332-06010 |
AE8#,CE80 *H,L=80 |
1 | ||
| 95332-06010 |
AE8#,CE80 *H,L=80 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95332-06020 |
AE8#,CE80 *H,L=130 |
1 | ||
| 95332-06020 |
AE8#,CE80 *H,L=130 |
1 | ||
| 95332-06010 |
AE80..SAA *H,L=80 |
1 | ||
| 95332-06010 |
AE80..SAA *H,L=80 |
1 | ||
| 95332-06010 |
AE8#,CE80 *H,L=80 |
1 | ||
| 95332-06010 |
AE8#,CE80 *H,L=80 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95332-06020 |
AE8#,CE80 *H,L=130 |
1 | ||
| 95332-06020 |
AE8#,CE80 *H,L=130 |
1 | ||
| 95332-06010 |
AE80..SAA *H,L=80 |
1 | ||
| 95332-06010 |
AE80..SAA *H,L=80 |
1 | ||
| 95332-06010 |
AE8#,CE80 *H,L=80 |
1 | ||
| 95332-06010 |
AE8#,CE80 *H,L=80 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95332-06020 |
AE8#,CE80 *H,L=130 |
1 | ||
| 95332-06020 |
AE8#,CE80 *H,L=130 |
1 | ||
| 95332-06010 |
AE80..SAA *H,L=80 |
1 | ||
| 95332-06010 |
AE80..SAA *H,L=80 |
1 | ||
| 95332-06010 |
AE8#,CE80 *H,L=80 |
1 | ||
| 95332-06010 |
AE8#,CE80 *H,L=80 |
1 | ||
| Common parts | ||||
| 90480-01217 | ||||
| 90959-01100 | ||||
| 90959-01101 | ||||
| 90959-01102 | ||||
| 90959-01103 | ||||
| 91651-40614 | ||||
| 93312-14010 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||

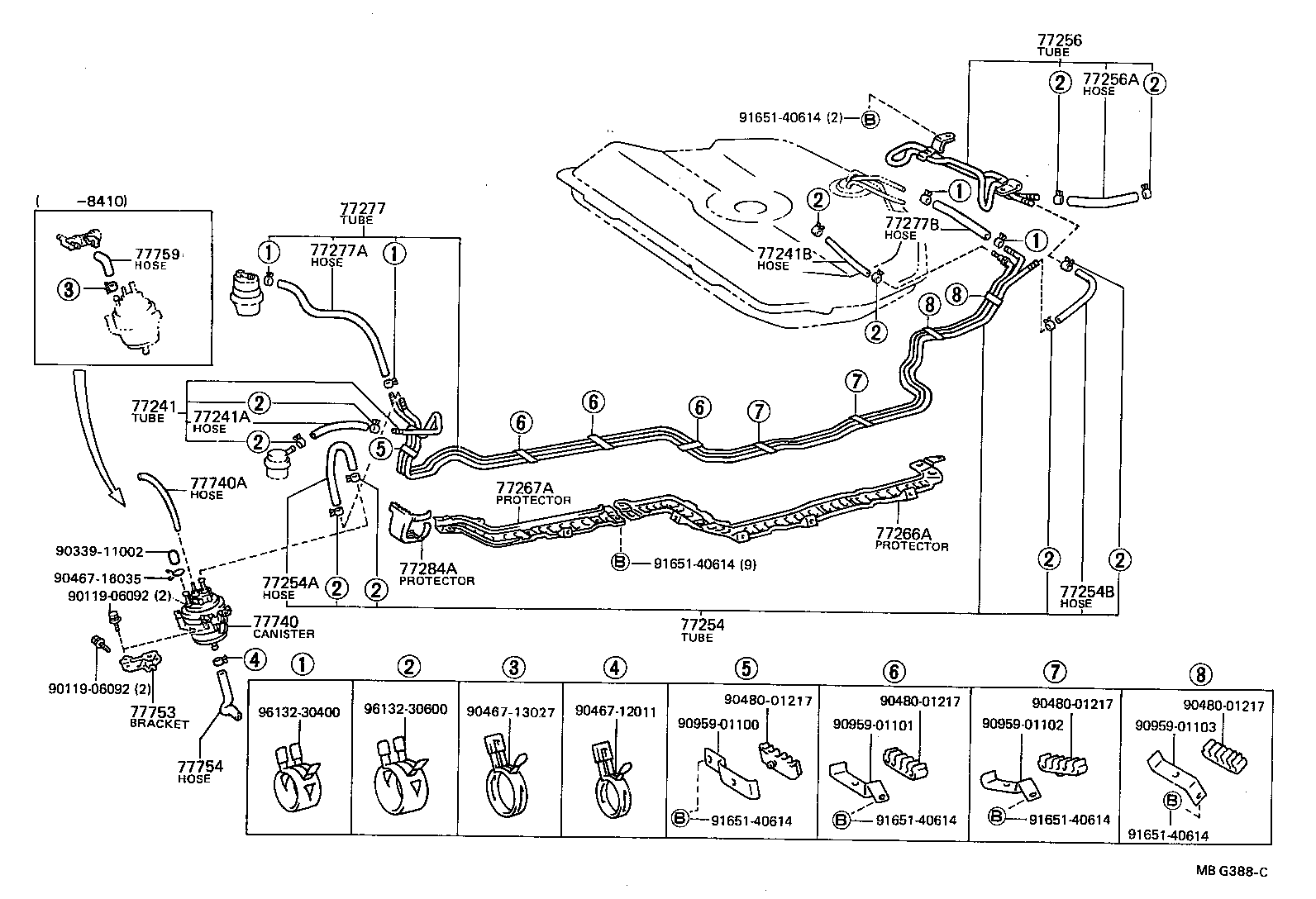

(8401- )SAA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-12180 |
AE8# |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
AE8#,EE80..CS,CSX,DX,GL,S,SE,STD,XL *H,L=150 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
AE8# *H,L=130 |
1 | ||
| 95332-06020 |
AE8# *H,L=140 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12020 |
AE8#,CE80,EE80 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-12040 |
AE8#,CE80,EE80 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77207-12030 |
AE8#..LHD |
1 | ||
| 77207-12110 |
AE80..SAA |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-14010 |
AE80..SAA |
1 | ||
| 23271-15060 |
AE8#..LHD |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-04020 |
AE8#..CS,CSX,DX,GL,S,STD,XL *H,L=160 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-12010 |
AE8#,CE80,EE80 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-12370 |
AE80..SAA |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-20011 |
AE80..SAA |
1 | ||
| Common parts | ||||
| 90119-06092 | ||||
| 90339-11002 | ||||
| 90467-12011 | ||||
| 90467-13027 | ||||
| 90467-16035 | ||||
| 90480-01217 | ||||
| 90959-01100 | ||||
| 90959-01101 | ||||
| 90959-01102 | ||||
| 90959-01103 | ||||
| 91651-40614 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||
