AE80L-EEKDSV (1983)

Toyota Corolla Sed/Lb

Production Aug 1983 - Oct 1984
Engine 2AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305-8505)4DS,5D,5DS ; (8305-8505)4DS,5D,5DS ;(8505-8605)ARL,SA ; (8505-8605)ARL,

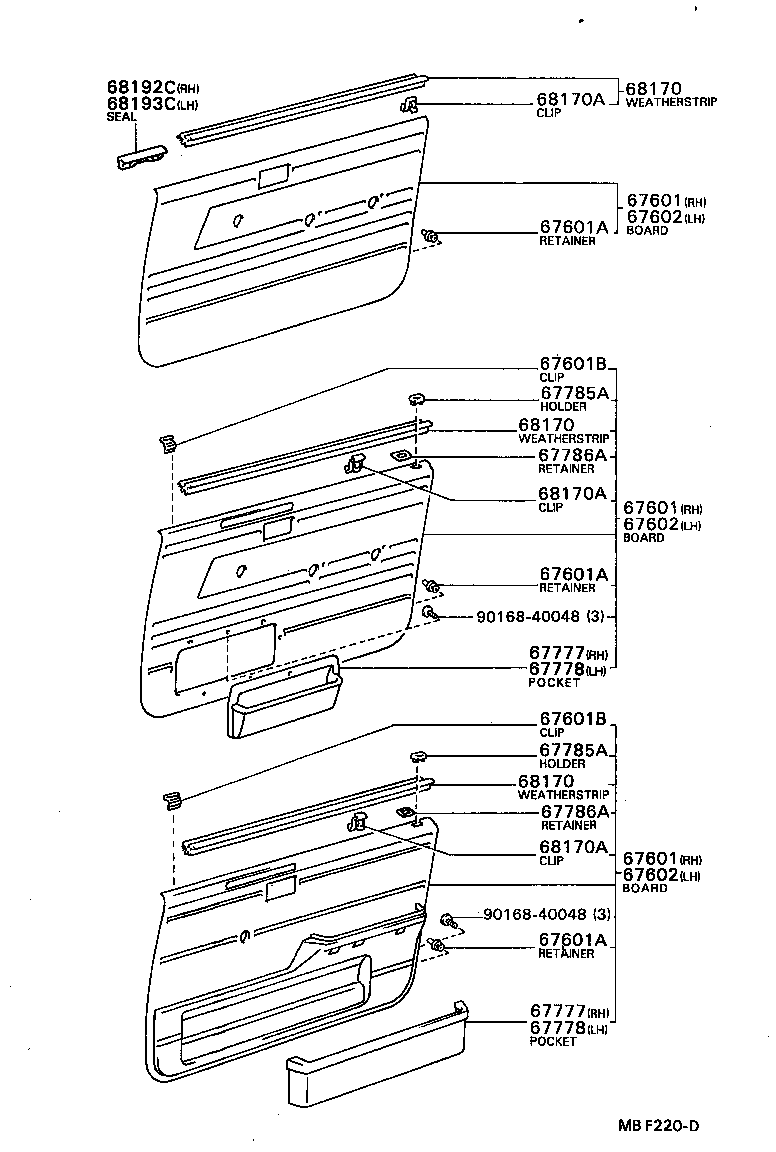

Click highlighted areas on diagram

diagram 67601 67601 67601 67601A 67601A 67601A 67601B 67601B 67602 67602 67602 67777 67777 67778 67778 67785A 67785A 67786A 67786A 68170 68170 68170 68170A 68170A 68170A 68192C 68193C 9016840048 9016840048
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67650-1227003

AE8#,CE80..LHD..(DX,XL)

GRAY,GRAY,TRIM1#

 1
67650-1227004

AE8#,CE80..LHD..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67650-1227104

AE8#,CE80..LHD..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67650-1227103

AE8#,CE80..LHD..(DX,XL)

GRAY,GRAY,TRIM1#

 1
67650-1227002

AE8#,CE80..LHD..(DX,XL)

MAROON,RED/MAROON,TRIM3#

 1
67650-1227102

AE8#,CE80..LHD..(DX,XL)

MAROON,RED/MAROON,TRIM3#

 1
67650-1227102

AE80,CE80..LHD..(DX,XL)..(GEN,SAA)

MAROON,RED/MAROON,TRIM3#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67650-1227003

AE8#,CE80..LHD..(DX,XL)

GRAY,GRAY,TRIM1#

 1
67650-1227004

AE8#,CE80..LHD..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67650-1227104

AE8#,CE80..LHD..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67650-1227103

AE8#,CE80..LHD..(DX,XL)

GRAY,GRAY,TRIM1#

 1
67650-1227002

AE8#,CE80..LHD..(DX,XL)

MAROON,RED/MAROON,TRIM3#

 1
67650-1227102

AE8#,CE80..LHD..(DX,XL)

MAROON,RED/MAROON,TRIM3#

 1
67650-1227102

AE80,CE80..LHD..(DX,XL)..(GEN,SAA)

MAROON,RED/MAROON,TRIM3#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67650-1227003

AE8#,CE80..LHD..(DX,XL)

GRAY,GRAY,TRIM1#

 1
67650-1227004

AE8#,CE80..LHD..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67650-1227104

AE8#,CE80..LHD..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67650-1227103

AE8#,CE80..LHD..(DX,XL)

GRAY,GRAY,TRIM1#

 1
67650-1227002

AE8#,CE80..LHD..(DX,XL)

MAROON,RED/MAROON,TRIM3#

 1
67650-1227102

AE8#,CE80..LHD..(DX,XL)

MAROON,RED/MAROON,TRIM3#

 1
67650-1227102

AE80,CE80..LHD..(DX,XL)..(GEN,SAA)

MAROON,RED/MAROON,TRIM3#

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12010

AE8#,CE80,EE80

 34
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12010

AE8#,CE80,EE80

 34
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12010

AE8#,CE80,EE80

 34
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
67774-10010

AE8#,CE80,EE80..(4DS,5D,5DS)..(CS,CSX,DX,GL,GT,S,XL)

 2
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
67774-10010

AE8#,CE80,EE80..(4DS,5D,5DS)..(CS,CSX,DX,GL,GT,S,XL)

 2
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1A18002

AE8#,CE80..LHD..(DX,XL)

MAROON,RED/MAROON,TRIM3#

 1
67620-1A18004

AE8#,CE80..LHD..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67620-1A18003

AE8#,CE80..LHD..(DX,XL)

GRAY,GRAY,TRIM1#

 1
67620-1A18104

AE8#,CE80..LHD..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67620-1A18102

AE8#,CE80..LHD..(DX,XL)

MAROON,RED/MAROON,TRIM3#

 1
67620-1A18103

AE8#,CE80..LHD..(DX,XL)

GRAY,GRAY,TRIM1#

 1
67620-1A18102

AE80,CE80..LHD..(DX,XL)..(GEN,SAA)

MAROON,RED/MAROON,TRIM3#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1A18002

AE8#,CE80..LHD..(DX,XL)

MAROON,RED/MAROON,TRIM3#

 1
67620-1A18004

AE8#,CE80..LHD..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67620-1A18003

AE8#,CE80..LHD..(DX,XL)

GRAY,GRAY,TRIM1#

 1
67620-1A18104

AE8#,CE80..LHD..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67620-1A18102

AE8#,CE80..LHD..(DX,XL)

MAROON,RED/MAROON,TRIM3#

 1
67620-1A18103

AE8#,CE80..LHD..(DX,XL)

GRAY,GRAY,TRIM1#

 1
67620-1A18102

AE80,CE80..LHD..(DX,XL)..(GEN,SAA)

MAROON,RED/MAROON,TRIM3#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1A18002

AE8#,CE80..LHD..(DX,XL)

MAROON,RED/MAROON,TRIM3#

 1
67620-1A18004

AE8#,CE80..LHD..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67620-1A18003

AE8#,CE80..LHD..(DX,XL)

GRAY,GRAY,TRIM1#

 1
67620-1A18104

AE8#,CE80..LHD..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67620-1A18102

AE8#,CE80..LHD..(DX,XL)

MAROON,RED/MAROON,TRIM3#

 1
67620-1A18103

AE8#,CE80..LHD..(DX,XL)

GRAY,GRAY,TRIM1#

 1
67620-1A18102

AE80,CE80..LHD..(DX,XL)..(GEN,SAA)

MAROON,RED/MAROON,TRIM3#

 1
67778 - POCKET, FRONT DOOR TRIM, LH
67777-1203002

AE8#,CE80..LHD..(DX,XL)

MAROON,RED/MAROON,TRIM3#

 1
67777-1203003

AE8#,CE80..LHD..(DX,XL)

GRAY,GRAY,TRIM1#

 1
67777-1203002

AE80,CE80..LHD..(DX,XL)..(GEN,SAA)

MAROON,RED/MAROON,TRIM3#

 1
67777-1203004

AE8#,CE80..LHD..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67778 - POCKET, FRONT DOOR TRIM, LH
67777-1203002

AE8#,CE80..LHD..(DX,XL)

MAROON,RED/MAROON,TRIM3#

 1
67777-1203003

AE8#,CE80..LHD..(DX,XL)

GRAY,GRAY,TRIM1#

 1
67777-1203002

AE80,CE80..LHD..(DX,XL)..(GEN,SAA)

MAROON,RED/MAROON,TRIM3#

 1
67777-1203004

AE8#,CE80..LHD..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)
69751-1201001

AE8#,CE80,EE80..(4DS,5D,5DS)..(CS,CSX,DX,GL,GT,S,XL)

BLACK,BLACK,TRIM1#,3#,4#,8#

 2
67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)
69751-1201001

AE8#,CE80,EE80..(4DS,5D,5DS)..(CS,CSX,DX,GL,GT,S,XL)

BLACK,BLACK,TRIM1#,3#,4#,8#

 2
67786A - RETAINER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)
67786-12010

AE8#,CE80,EE80..(4DS,5D,5DS)..(CS,CSX,DX,GL,GT,S,XL)

 2
67786A - RETAINER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)
67786-12010

AE8#,CE80,EE80..(4DS,5D,5DS)..(CS,CSX,DX,GL,GT,S,XL)

 2
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68172-12040

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

LH

 1
68171-12080

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

RH

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68172-12040

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

LH

 1
68171-12080

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

RH

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68172-12040

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

LH

 1
68171-12080

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

RH

 1
68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
67773-12010

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

 12
68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
67773-12010

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

 12
68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
67773-12010

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

 12
Common parts
90168-40048
