AE80L-EEKDS (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Oct 1984
Engine 2AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )MTM

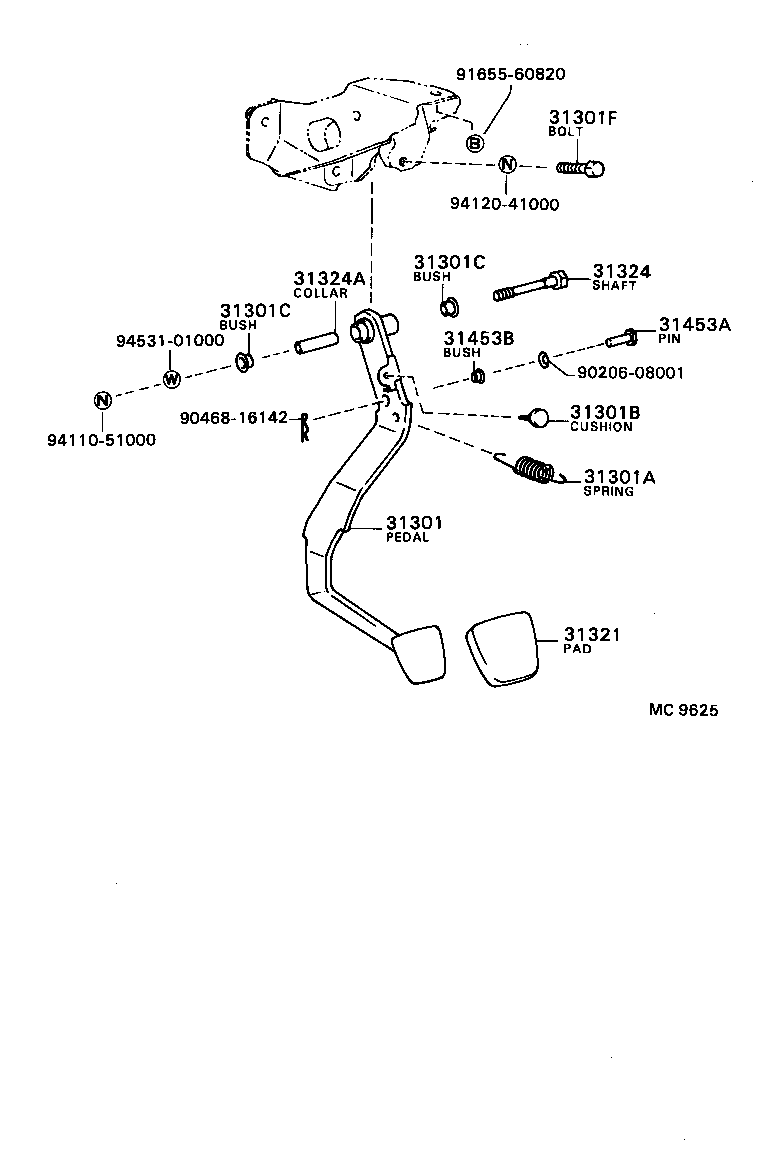

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31453B 9020608001 9046816142 9165560820 9411051000 9412041000 9453101000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-12250

AE8#,CE80,EE80..LHD..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-14002

AE8#,CE80,EE80..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

AE8#,CE80,EE80..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

AE8#,CE80,EE80..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

AE8#,CE80,EE80..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

AE8#,CE80,EE80..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-12030

AE8#,CE80,EE80..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10015

AE8#,CE80,EE80..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

AE8#,CE80,EE80..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

AE8#,CE80,EE80..MTM

L=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

AE8#,CE80,EE80..MTM

 1
Common parts
90206-08001
90468-16142
91655-60820
94110-51000
94120-41000
94531-01000

(8305- )AE8#,CE80..MTM..EUR,GEN,SA,SAA

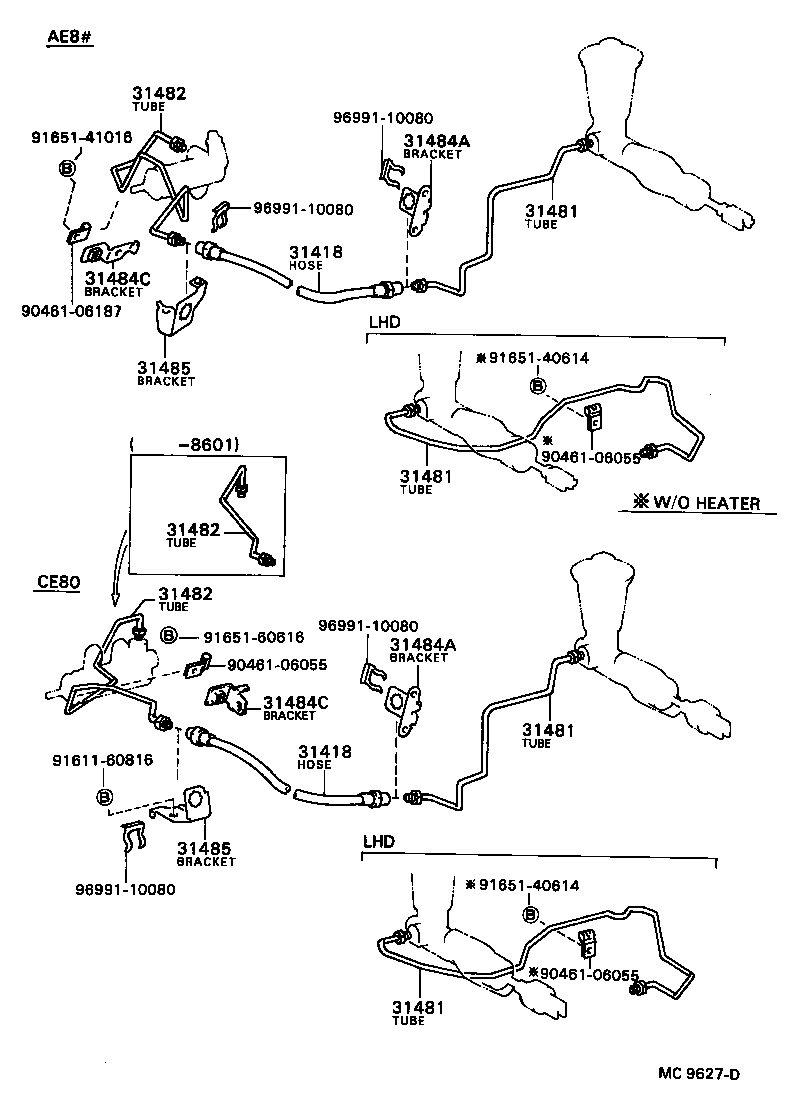

Click highlighted areas on diagram

diagram 31418 31418 31481 31481 31481 31481 31482 31482 31482 31484A 31484A 31484C 31484C 31485 31485 9046106055 9046106055 9046106055 9046106187 9161160816 9165140614 9165140614 9165141016 9165160616 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
31418 - HOSE, CLUTCH
90931-01004

AE8#,EE80..LHD..MTM

 1
31418 - HOSE, CLUTCH
90931-01004

AE8#,EE80..LHD..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-12110

AE8#,EE80..LHD..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-12110

AE8#,EE80..LHD..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-12110

AE8#,EE80..LHD..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-12110

AE8#,EE80..LHD..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-12010

AE8#..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-12010

AE8#..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-12010

AE8#..MTM

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-12050

AE8#,CE80,EE80..MTM..(EUR,GEN,SA,SAA)

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-12050

AE8#,CE80,EE80..MTM..(EUR,GEN,SA,SAA)

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-12060

AE8#..MTM

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-12060

AE8#..MTM

 1
Common parts
90461-06055
90461-06187
91611-60816
91651-40614
91651-41016
91651-60616
96991-10080
