AE80L-EEHNSW (1983)
Toyota Corolla Sed/Lb

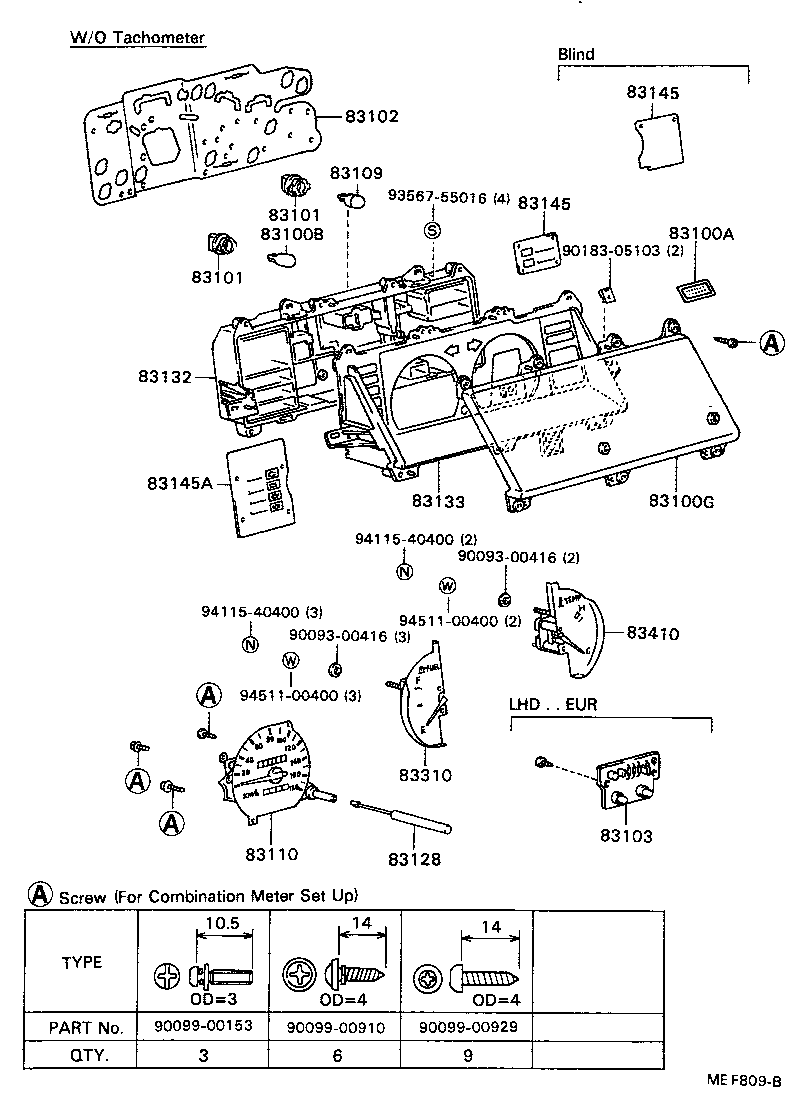

(8305-8505)CS,DX,GL,S,STD ; (8505-8605)CS,S,STD..ARL,SA ; (8605- )CS,S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE8#,CE80,EE80..EUR 12V 1.2W W/O SOCKET |
9 | ||
| 99132-12034 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA 12V 3.4W |
10 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-12530 |
AE8#,EE80..LHD..(GL,GT)..EUR W/TACHOMETER |
1 | ||
| 83138-12470 |
AE8#,CE80,EE80..LHD..(DX,GL)..EUR |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA OD=18 |
10 | ||
| 83101-14040 |
AE8#,EE80..(GL,GT)..EUR OD=11.3,W/TACHOMETER |
8 | ||
| 83101-14040 |
AE8#,EE80..LHD..(DX,GL,STD)..EUR OD=11.3 |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA OD=18 |
10 | ||
| 83101-14040 |
AE8#,EE80..(GL,GT)..EUR OD=11.3,W/TACHOMETER |
8 | ||
| 83101-14040 |
AE8#,EE80..LHD..(DX,GL,STD)..EUR OD=11.3 |
2 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1A730 |
AE8#,EE80..LHD..(DX,GL)..EUR |
1 | ||
| 83247-1E070 |
AE8#,EE80..LHD..GL..EUR W/TACHOMETER |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-1A430 |
AE8#,EE80..LHD..(GL,GT)..EUR W/TACHOMETER |
1 | ||
| 83247-32190 |
AE8#,EE80..LHD..(DX,GL,STD)..EUR |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24030 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA 12V3.4W W(GREEN CAP) |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1A530 |
AE8#,EE80..LHD..(DX,GL,STD)..EUR KM |
1 | ||
| 83110-1A560 |
AE8#,EE80..LHD..GL..EUR KM,W/TACHOMETER |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-12690 |
AE8#,CE80,EE80..(DX,GL,STD)..EUR |
1 | ||
| 83128-12710 |
AE8#,EE80..(GL,GT)..EUR W/TACHOMETER |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-12590 |
AE8#,EE80..LHD..(GL,GT)..EUR W/TACHOMETER |
1 | ||
| 83132-12530 |
AE8#,CE80,EE80..LHD..(DX,GL,STD)..EUR |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-12670 |
AE8#,EE80..LHD..(GL,GT)..EUR W/TACHOMETER |
1 | ||
| 83133-12630 |
AE8#,CE80,EE80..LHD..(DX,GL,STD)..EUR |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-1A270 |
AE8#,EE80..LHD..GL..EUR W/TACHOMETER |
1 | ||
| 83145-12790 |
AE8#,EE80..LHD..(DX,GL)..EUR |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-1A270 |
AE8#,EE80..LHD..GL..EUR W/TACHOMETER |
1 | ||
| 83145-12790 |
AE8#,EE80..LHD..(DX,GL)..EUR |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-12870 |
AE8#,CE80,EE80..LHD..(DX,GL,STD)..EUR |
1 | ||
| 83145-1A210 |
AE8#,EE80..LHD..(GL,GT)..EUR W/TACHOMETER |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-12630 |
AE8#,EE80..LHD..GL..EUR W/TACHOMETER |
1 | ||
| 83243-12570 |
AE8#,CE80,EE80..LHD..(DX,GL,STD)..EUR |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1A030 |
AE8#..LHD..GL..EUR W/TACHOMETER |
1 | ||
| 83244-12830 |
AE8#,EE80..LHD..(DX,GL,STD)..EUR |
1 | ||
| Common parts | ||||
| 90093-00416 | ||||
| 90099-00153 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
(8305-8505)CSX,DX,GL,GT ; (8505-8605)CSX,DX,GL,GT..ARL,SA ; (8605- )CSX,GT..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE8#,CE80,EE80..EUR 12V 1.2W W/O SOCKET |
9 | ||
| 99132-12034 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA 12V 3.4W |
10 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE8#,CE80,EE80..EUR 12V 1.2W W/O SOCKET |
9 | ||
| 99132-12034 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA 12V 3.4W |
10 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-12530 |
AE8#,EE80..LHD..(GL,GT)..EUR W/TACHOMETER |
1 | ||
| 83138-12470 |
AE8#,CE80,EE80..LHD..(DX,GL)..EUR |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA OD=18 |
10 | ||
| 83101-14040 |
AE8#,EE80..(GL,GT)..EUR OD=11.3,W/TACHOMETER |
8 | ||
| 83101-14040 |
AE8#,EE80..LHD..(DX,GL,STD)..EUR OD=11.3 |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA OD=18 |
10 | ||
| 83101-14040 |
AE8#,EE80..(GL,GT)..EUR OD=11.3,W/TACHOMETER |
8 | ||
| 83101-14040 |
AE8#,EE80..LHD..(DX,GL,STD)..EUR OD=11.3 |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA OD=18 |
10 | ||
| 83101-14040 |
AE8#,EE80..(GL,GT)..EUR OD=11.3,W/TACHOMETER |
8 | ||
| 83101-14040 |
AE8#,EE80..LHD..(DX,GL,STD)..EUR OD=11.3 |
2 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1A730 |
AE8#,EE80..LHD..(DX,GL)..EUR |
1 | ||
| 83247-1E070 |
AE8#,EE80..LHD..GL..EUR W/TACHOMETER |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-1A430 |
AE8#,EE80..LHD..(GL,GT)..EUR W/TACHOMETER |
1 | ||
| 83247-32190 |
AE8#,EE80..LHD..(DX,GL,STD)..EUR |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24030 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA 12V3.4W W(GREEN CAP) |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1A530 |
AE8#,EE80..LHD..(DX,GL,STD)..EUR KM |
1 | ||
| 83110-1A560 |
AE8#,EE80..LHD..GL..EUR KM,W/TACHOMETER |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-12690 |
AE8#,CE80,EE80..(DX,GL,STD)..EUR |
1 | ||
| 83128-12710 |
AE8#,EE80..(GL,GT)..EUR W/TACHOMETER |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-12590 |
AE8#,EE80..LHD..(GL,GT)..EUR W/TACHOMETER |
1 | ||
| 83132-12530 |
AE8#,CE80,EE80..LHD..(DX,GL,STD)..EUR |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-12670 |
AE8#,EE80..LHD..(GL,GT)..EUR W/TACHOMETER |
1 | ||
| 83133-12630 |
AE8#,CE80,EE80..LHD..(DX,GL,STD)..EUR |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-1A270 |
AE8#,EE80..LHD..GL..EUR W/TACHOMETER |
1 | ||
| 83145-12790 |
AE8#,EE80..LHD..(DX,GL)..EUR |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-12870 |
AE8#,CE80,EE80..LHD..(DX,GL,STD)..EUR |
1 | ||
| 83145-1A210 |
AE8#,EE80..LHD..(GL,GT)..EUR W/TACHOMETER |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-12690 |
AE8#..LHD..GL..EUR |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-12630 |
AE8#,EE80..LHD..GL..EUR W/TACHOMETER |
1 | ||
| 83243-12570 |
AE8#,CE80,EE80..LHD..(DX,GL,STD)..EUR |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1A030 |
AE8#..LHD..GL..EUR W/TACHOMETER |
1 | ||
| 83244-12830 |
AE8#,EE80..LHD..(DX,GL,STD)..EUR |
1 | ||
| Common parts | ||||
| 90099-00153 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||

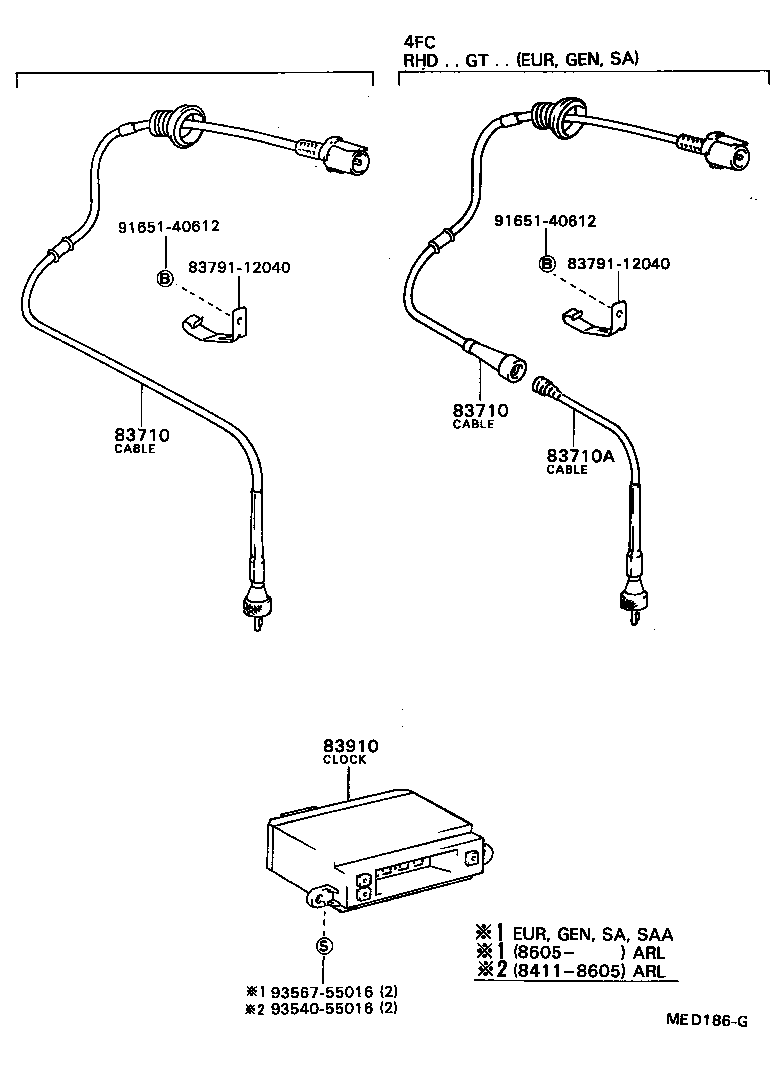

(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12260 |
AE8#,EE80..LHD..3FC |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12260 |
AE8#,EE80..LHD..3FC |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12330 |
AE8#,CE80,EE80..EUR,GEN,SAA DIGITAL |
1 | ||
| Common parts | ||||
| 83791-12040 | ||||
| 91651-40612 | ||||
| 93540-55016 | ||||
| 93567-55016 | ||||

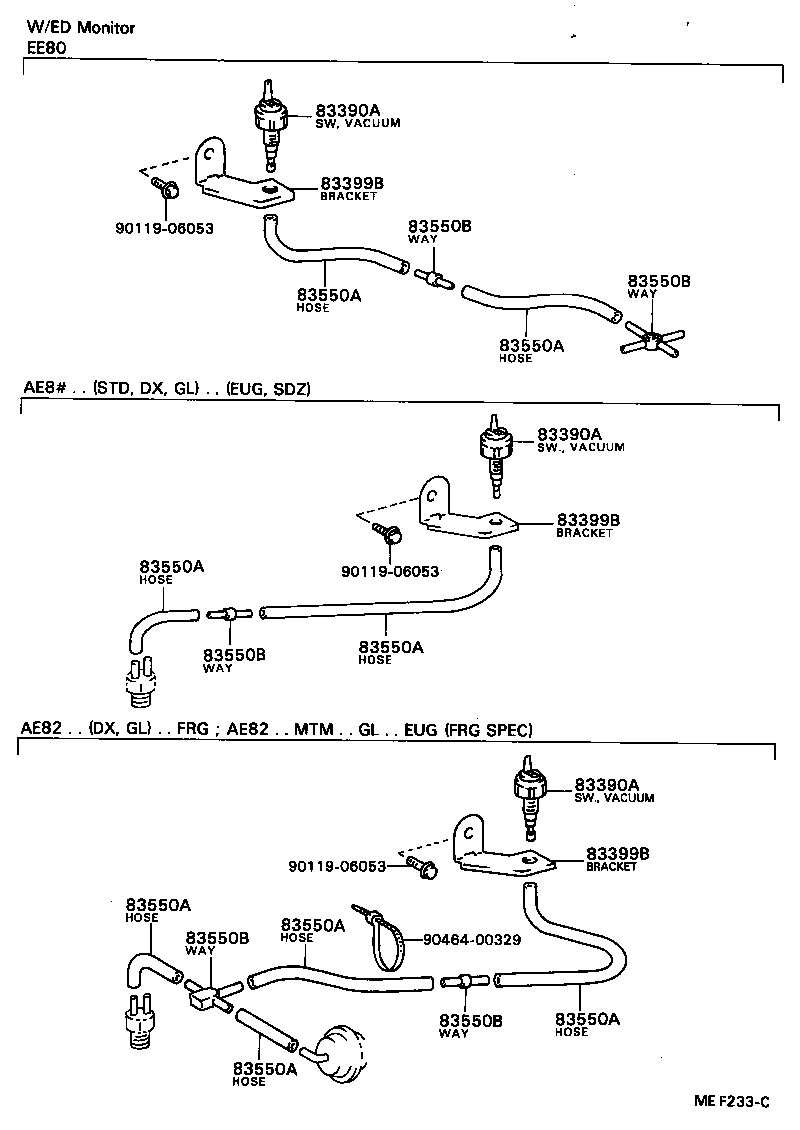

(8305-8704)LHD..DX,GL,STD..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83390A - SWITCH ASSY, VACUUM(FOR ECONOMETER) | ||||
| 83391-16020 |
AE8#,EE80..LHD..EUR |
1 | ||
| 83390A - SWITCH ASSY, VACUUM(FOR ECONOMETER) | ||||
| 83391-16020 |
AE8#,EE80..LHD..EUR |
1 | ||
| 83390A - SWITCH ASSY, VACUUM(FOR ECONOMETER) | ||||
| 83391-16020 |
AE8#,EE80..LHD..EUR |
1 | ||
| 83399B - BRACKET, VACUUM SWITCH | ||||
| 83399-22011 |
AE8#,EE80..LHD..EUR |
1 | ||
| 83399B - BRACKET, VACUUM SWITCH | ||||
| 83399-22011 |
AE8#,EE80..LHD..EUR |
1 | ||
| 83399B - BRACKET, VACUUM SWITCH | ||||
| 83399-22011 |
AE8#,EE80..LHD..EUR |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 95411-10030 |
AE8#..LHD..(DX,GL,STD)..EUR *H,L=60,MARK=#0 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 95411-10030 |
AE8#..LHD..(DX,GL,STD)..EUR *H,L=60,MARK=#0 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 95411-10030 |
AE8#..LHD..(DX,GL,STD)..EUR *H,L=60,MARK=#0 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 95411-10030 |
AE8#..LHD..(DX,GL,STD)..EUR *H,L=60,MARK=#0 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 95411-10030 |
AE8#..LHD..(DX,GL,STD)..EUR *H,L=60,MARK=#0 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 95411-10030 |
AE8#..LHD..(DX,GL,STD)..EUR *H,L=60,MARK=#0 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 95411-10030 |
AE8#..LHD..(DX,GL,STD)..EUR *H,L=60,MARK=#0 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 95411-10030 |
AE8#..LHD..(DX,GL,STD)..EUR *H,L=60,MARK=#0 |
1 | ||
| 83550B - UNION OR WAY, ED MONITOR GAGE | ||||
| 90412-05001 |
AE8#,EE80..LHD..EUR 2 WAY |
1 | ||
| 83550B - UNION OR WAY, ED MONITOR GAGE | ||||
| 90412-05001 |
AE8#,EE80..LHD..EUR 2 WAY |
1 | ||
| 83550B - UNION OR WAY, ED MONITOR GAGE | ||||
| 90412-05001 |
AE8#,EE80..LHD..EUR 2 WAY |
1 | ||
| 83550B - UNION OR WAY, ED MONITOR GAGE | ||||
| 90412-05001 |
AE8#,EE80..LHD..EUR 2 WAY |
1 | ||
| 83550B - UNION OR WAY, ED MONITOR GAGE | ||||
| 90412-05001 |
AE8#,EE80..LHD..EUR 2 WAY |
1 | ||
| Common parts | ||||
| 90119-06053 | ||||
| 90464-00329 | ||||
(8305-8707)DX,GL,STD,XL..EUR,GEN,SAA ; (8605-)STD..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE8#,CE80,EE80..EUR 12V 1.2W W/O SOCKET |
9 | ||
| 99132-12034 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA 12V 3.4W |
10 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-12530 |
AE8#,EE80..LHD..(GL,GT)..EUR W/TACHOMETER |
1 | ||
| 83138-12470 |
AE8#,CE80,EE80..LHD..(DX,GL)..EUR |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA OD=18 |
10 | ||
| 83101-14040 |
AE8#,EE80..(GL,GT)..EUR OD=11.3,W/TACHOMETER |
8 | ||
| 83101-14040 |
AE8#,EE80..LHD..(DX,GL,STD)..EUR OD=11.3 |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA OD=18 |
10 | ||
| 83101-14040 |
AE8#,EE80..(GL,GT)..EUR OD=11.3,W/TACHOMETER |
8 | ||
| 83101-14040 |
AE8#,EE80..LHD..(DX,GL,STD)..EUR OD=11.3 |
2 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1A730 |
AE8#,EE80..LHD..(DX,GL)..EUR |
1 | ||
| 83247-1E070 |
AE8#,EE80..LHD..GL..EUR W/TACHOMETER |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-1A430 |
AE8#,EE80..LHD..(GL,GT)..EUR W/TACHOMETER |
1 | ||
| 83247-32190 |
AE8#,EE80..LHD..(DX,GL,STD)..EUR |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24030 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA 12V3.4W W(GREEN CAP) |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1A530 |
AE8#,EE80..LHD..(DX,GL,STD)..EUR KM |
1 | ||
| 83110-1A560 |
AE8#,EE80..LHD..GL..EUR KM,W/TACHOMETER |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-12690 |
AE8#,CE80,EE80..(DX,GL,STD)..EUR |
1 | ||
| 83128-12710 |
AE8#,EE80..(GL,GT)..EUR W/TACHOMETER |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-12590 |
AE8#,EE80..LHD..(GL,GT)..EUR W/TACHOMETER |
1 | ||
| 83132-12530 |
AE8#,CE80,EE80..LHD..(DX,GL,STD)..EUR |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-12670 |
AE8#,EE80..LHD..(GL,GT)..EUR W/TACHOMETER |
1 | ||
| 83133-12630 |
AE8#,CE80,EE80..LHD..(DX,GL,STD)..EUR |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-1A270 |
AE8#,EE80..LHD..GL..EUR W/TACHOMETER |
1 | ||
| 83145-12790 |
AE8#,EE80..LHD..(DX,GL)..EUR |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-1A270 |
AE8#,EE80..LHD..GL..EUR W/TACHOMETER |
1 | ||
| 83145-12790 |
AE8#,EE80..LHD..(DX,GL)..EUR |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-12870 |
AE8#,CE80,EE80..LHD..(DX,GL,STD)..EUR |
1 | ||
| 83145-1A210 |
AE8#,EE80..LHD..(GL,GT)..EUR W/TACHOMETER |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-12630 |
AE8#,EE80..LHD..GL..EUR W/TACHOMETER |
1 | ||
| 83243-12570 |
AE8#,CE80,EE80..LHD..(DX,GL,STD)..EUR |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1A030 |
AE8#..LHD..GL..EUR W/TACHOMETER |
1 | ||
| 83244-12830 |
AE8#,EE80..LHD..(DX,GL,STD)..EUR |
1 | ||
| Common parts | ||||
| 90093-00416 | ||||
| 90099-00153 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
