AE80L-EEHNSW (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Oct 1984
Engine 2AL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )3FC

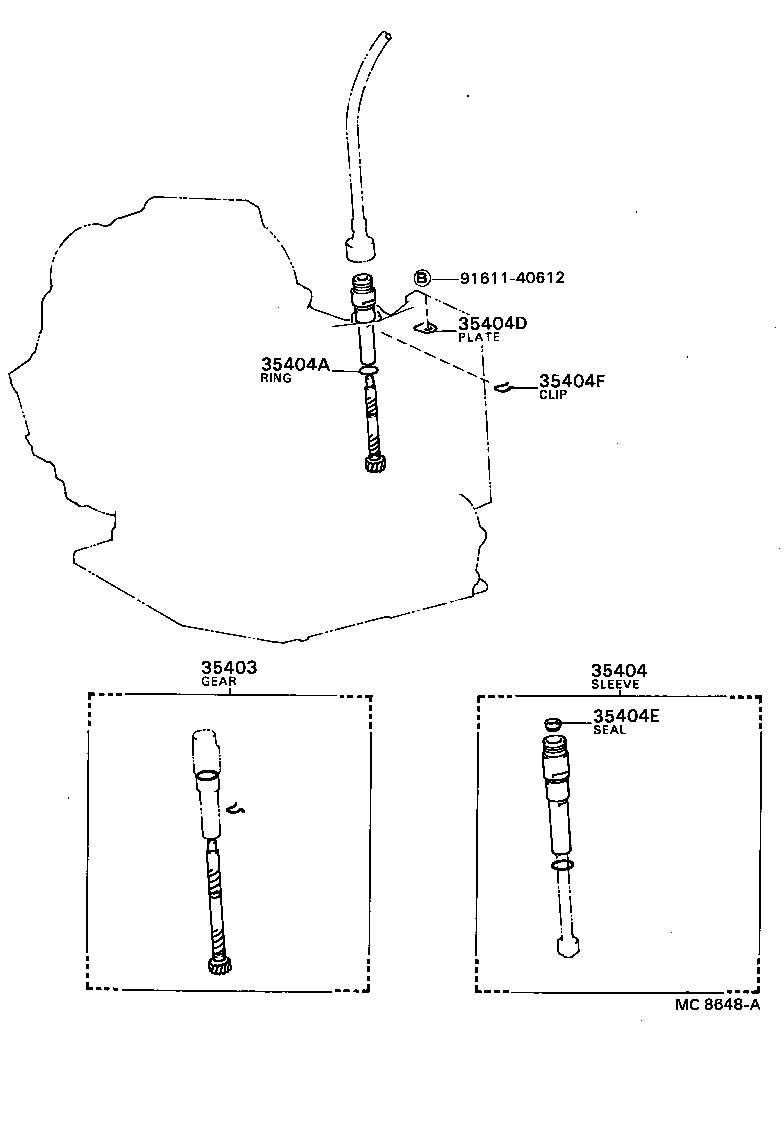

Click highlighted areas on diagram

diagram 35403 35404 35404A 35404D 35404E 35404F 9161140612
Part # Description Qty Price
35403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33403-19305

AE8#,EE80..3FC..(DX,GL,XL)

 1
35404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)
33404-32010

AE8#,EE80..3FC

 1
35404A - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
96711-24018

AE8#,EE80..3FC

 1
35404D - PLATE, SPEEDOMETER SLEEVE LOCK (ATM)
33485-14010

AE8#,EE80..3FC

 1
35404E - SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90310-09001

AE8#,EE80..ATM

 1
35404F - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90468-12005

AE8#,EE80..ATM

 1
Common parts
91611-40612
