AE80L-EEHDSW (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Oct 1984
Engine 2AL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )2AL#,4AL#

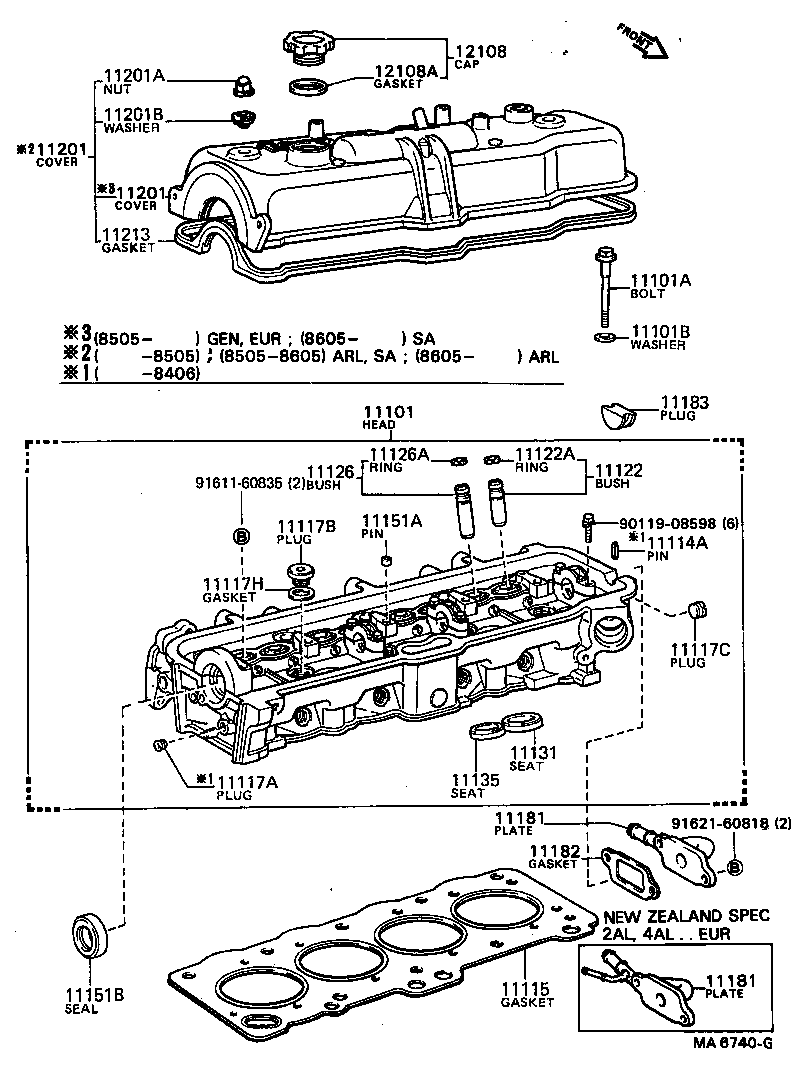

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11114A 11115 11117A 11117B 11117C 11117H 11122 11122A 11126 11126A 11131 11135 11151A 11151B 11181 11181 11182 11183 11201 11201 11201A 11201B 11213 12108 12108A 9011908598 9161160835 9162160818
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-14021

2AL..AE80

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90109-10025

2AL#,4AL#..AE8#

*10-1.25PX97.5-22

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10344

2AL#,4AG#,4AL#..AE8#

 10
11114A - PIN, STRAIGHT
90254-03003

2AL,4AL#..AE8#

 1
11115 - GASKET, CYLINDER HEAD
11115-14031

2AL#..AE80

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-51002

2AL,4AL#..AE8#

 6
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-20002

2AL#,4AL#..AE8#

 2
11117C - PLUG, W/HEAD TAPER SCREW, NO.3
90344-54002

2AL#,4AL#..AE8#

 1
11117H - GASKET(FOR WATER HOLE)
90430-20004

2AL#,4AL#..AE8#

 2
11122 - BUSH, INTAKE VALVE GUIDE
11122-15020

2AL#,4AL#..AE8#

STD,STD

 4
11123-15020

2AL#,4AL#..AE8#

O/S 0.05,O/S 0.05

 4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-10001

2AL#,4AL#..AE8#

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11126-15020

2AL#,4AL#..AE8#

STD,STD

 4
11127-15020

2AL#,4AL#..AE8#

O/S 0.05,O/S 0.05

 4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-10001

2AL#,4AL#..AE8#

 4
11131 - SEAT, INTAKE VALVE
11131-15010

2AL..AE80

STD,STD

 4
11132-15010

2AL..AE80

O/S 0.03,O/S 0.03

 4
11135 - SEAT, EXHAUST VALVE
11135-15020

2AL#,4AL#..AE8#

STD,STD

 4
11136-15020

2AL#,4AL#..AE8#

O/S 0.03,O/S 0.03

 4
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-11021

2AL#,4AL#..AE8#

L=8,OD=11

 10
11151B - SEAL, OIL(FOR CAMSHAFT SETTING)
90311-35003

2AL,4AL#..AE8#

 1
11181 - PLATE, CYLINDER HEAD, REAR
11181-15040

2AL,4AL..AE8#..EUG

 1
11181 - PLATE, CYLINDER HEAD, REAR
11181-15040

2AL,4AL..AE8#..EUG

 1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-15011

2AL#,4AL#..AE8#

 1
11183 - PLUG, SEMICIRCULAR
11183-15010

2AL#,4AL#..AE8#

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11210-19025

2AL#,4AL#..AE8#

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11210-19025

2AL#,4AL#..AE8#

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08007

2AL#,4AL#..AE8#

 3
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-09001

2AL#,4AL#..AE8#

 3
11213 - GASKET, CYLINDER HEAD COVER
11213-15020

2AL#,4AL#..AE8#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-70010

2AL#,4AG#,4AL#..AE8#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

2AL#,4AG#,4AL#..AE8#

 1
Common parts
90119-08598
91611-60835
91621-60818
