EE97R-AWKRS (1987)

Toyota Corolla Sed/Lb/Wg

Production Aug 1987 - Aug 1989
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )EE97

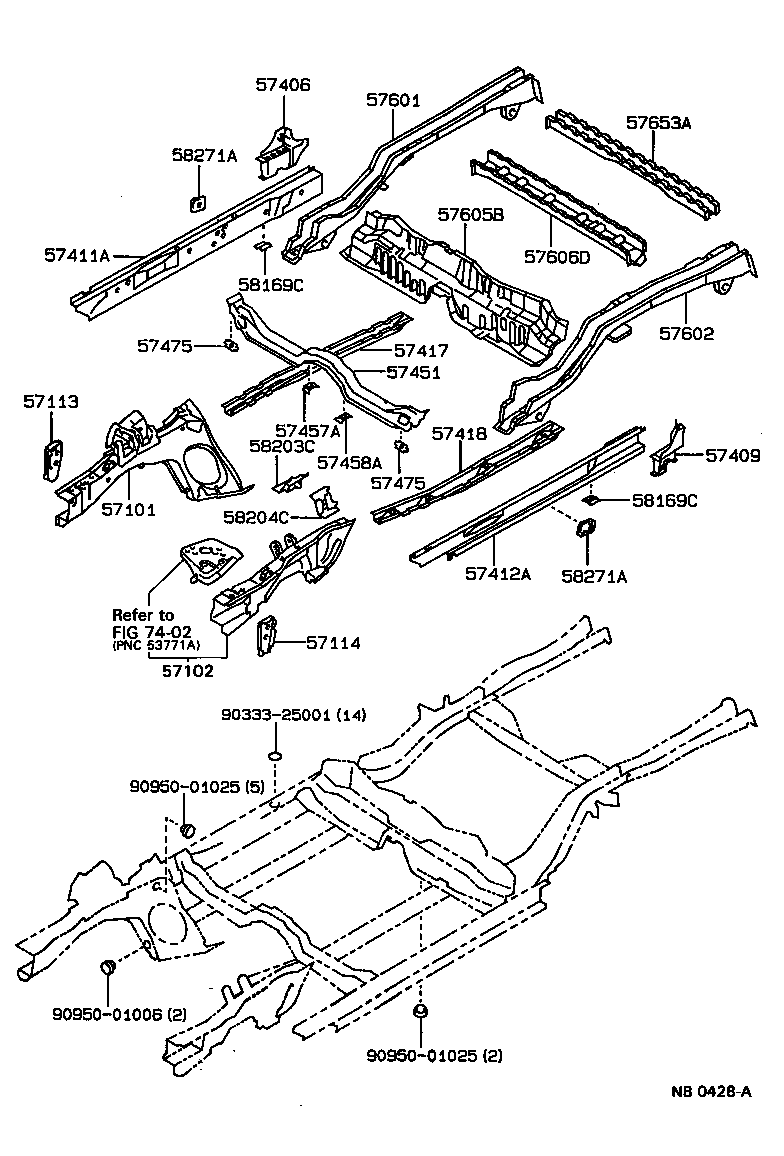

Click highlighted areas on diagram

diagram 57101 57102 57113 57114 57406 57409 57411A 57412A 57417 57418 57451 57457A 57458A 57475 57475 57601 57602 57605B 57606D 57653A 58169C 58169C 58203C 58204C 58271A 58271A 7402 9033325001 9095001006 9095001025 9095001025
Part # Description Qty Price
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-12350

CE90,EE9#

 1
57101-12351

CE90,EE9#

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-12370

AE9#,EE9#

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-12110

EE90..WG..GCC;AE9#,CE90,EE9#..ARL,GEN,SA

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-12110

EE90..WG..GCC;AE9#,CE90,EE9#..ARL,GEN,SA

 1
57411A - MEMBER, FLOOR SIDE, INNER RH
57411-12150

AE9#,CE90,EE9#..ARL,GEN,SA

 1
57412A - MEMBER, FLOOR SIDE, INNER LH
57412-12150

AE9#,CE90,EE9#..ARL,GEN,SA

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-12080

AE92,CE90,EE9#

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-12040

AE92,CE90,EE9#

 1
57451 - MEMBER, FRONT FLOOR CROSS
57451-12110

AE92,CE90,EE9#

 1
57457A - PLATE, FRONT FLOOR CROSSMEMBER, NO.2 RH
57457-12020

AE92,CE90,EE9#

 1
57458A - PLATE, FRONT FLOOR CROSSMEMBER, NO.2 LH
57458-12020

AE92,CE90,EE9#

 1
57475 - PLATE, FRONT FLOOR CROSSMEMBER
57475-32010

AE92,CE90,EE9#

 2
57475 - PLATE, FRONT FLOOR CROSSMEMBER
57475-32010

AE92,CE90,EE9#

 2
58203C - BRACKET SUB-ASSY, EXHAUST PIPE MOUNTING
58203-12030

AE92,CE90,EE9#

 1
58204C - BRACKET SUB-ASSY, EXHAUST PIPE MOUNTING, LH
58204-12010

AE92,CE90,EE9#

 1
58271A - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3
58271-12050

AE9#,CE90,EE9#

 2
58271A - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3
58271-12050

AE9#,CE90,EE9#

 2
Common parts
90333-25001
90950-01006
90950-01025
Linked diagrams
7402
