EE97L-AWKDS (1987)

Toyota Corolla Sed/Lb/Wg

Production Aug 1987 - Aug 1991
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )EE9#..WG

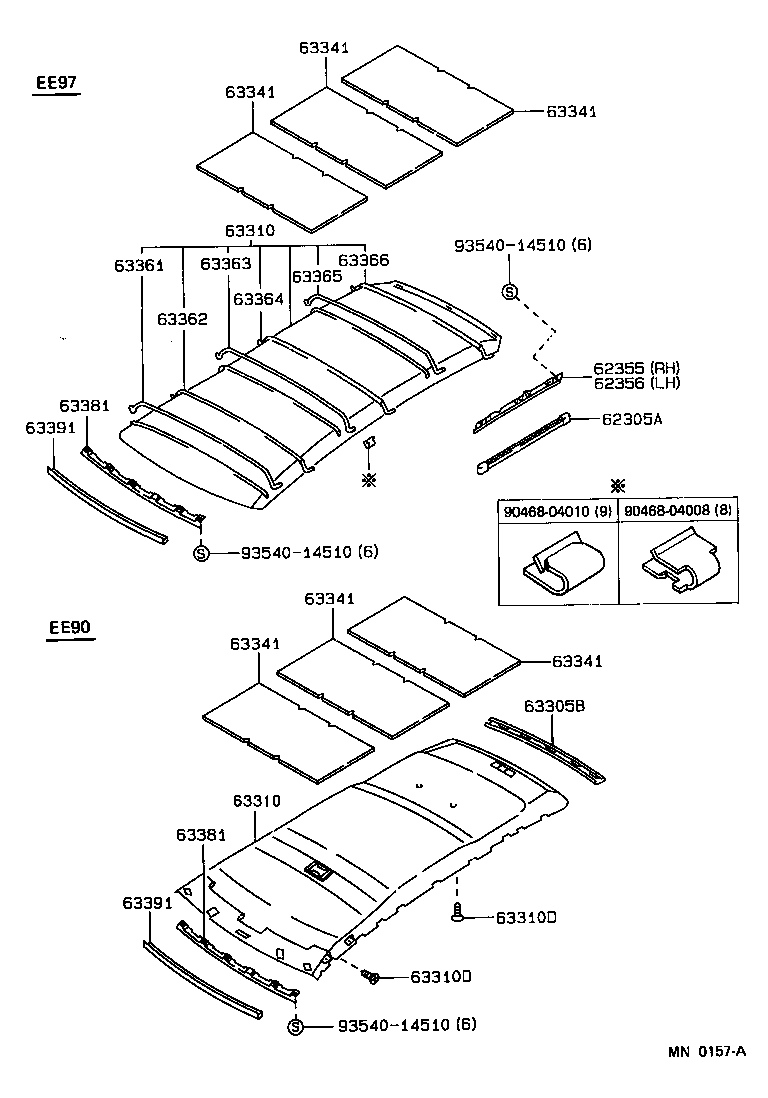

Click highlighted areas on diagram

diagram 62305A 62355 62356 63305B 63310 63310 63310D 63310D 63341 63341 63341 63341 63341 63341 63361 63362 63363 63364 63365 63366 63381 63381 63391 63391 9046804008 9046804010 9354014510 9354014510 9354014510
Part # Description Qty Price
62305A - TRIM SUB-ASSY, QUARTER WINDOW INSIDE
62305-1301004

EE97

LIGHT BLUE,TRIM8#

 2
62305-1301005

EE97

LIGHT BEIGE,TRIM4#

 2
62305-1301003

EE97

LIGHT GRAY,TRIM1#

 2
62305-1301004

EE97..LHD..XL

LIGHT BLUE,TRIM8#

 2
63310 - HEADLINING ASSY, ROOF
63310-1315005

EE97

LIGHT BEIGE,TRIM4#

 1
63310-1315004

EE97..LHD..XL

LIGHT BLUE,TRIM8#

 1
63310-1315004

EE97

LIGHT BLUE,TRIM8#

 1
63310-1315003

EE97

LIGHT GRAY,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-1315005

EE97

LIGHT BEIGE,TRIM4#

 1
63310-1315004

EE97..LHD..XL

LIGHT BLUE,TRIM8#

 1
63310-1315004

EE97

LIGHT BLUE,TRIM8#

 1
63310-1315003

EE97

LIGHT GRAY,TRIM1#

 1
63381 - RETAINER, HEADLINING, FRONT
63381-12190

EE9#;AE9#,CE90..LB,SED

 1
63381 - RETAINER, HEADLINING, FRONT
63381-12190

EE9#;AE9#,CE90..LB,SED

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-1304004

EE97..LHD..XL

DARK BLUE,TRIM8#

 1
63391-1304005

EE97

DARK BEIGE,TRIM4#

 1
63391-1304003

EE97

SHADOW GRAY,TRIM1#

 1
63391-1304103

EE97

SHADOW GRAY,TRIM1#

 1
63391-1304004

EE97

DARK BLUE,TRIM8#

 1
63391-1304104

EE97

DARK BLUE,TRIM8#

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-1304004

EE97..LHD..XL

DARK BLUE,TRIM8#

 1
63391-1304005

EE97

DARK BEIGE,TRIM4#

 1
63391-1304003

EE97

SHADOW GRAY,TRIM1#

 1
63391-1304103

EE97

SHADOW GRAY,TRIM1#

 1
63391-1304004

EE97

DARK BLUE,TRIM8#

 1
63391-1304104

EE97

DARK BLUE,TRIM8#

 1
Common parts
90468-04008
90468-04010
93540-14510
