EE90R-ALMNS (1987)
Toyota Corolla Sed/Lb/Wg
Production
May 1987
-
May 1992
Engine
2E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8705- )LB

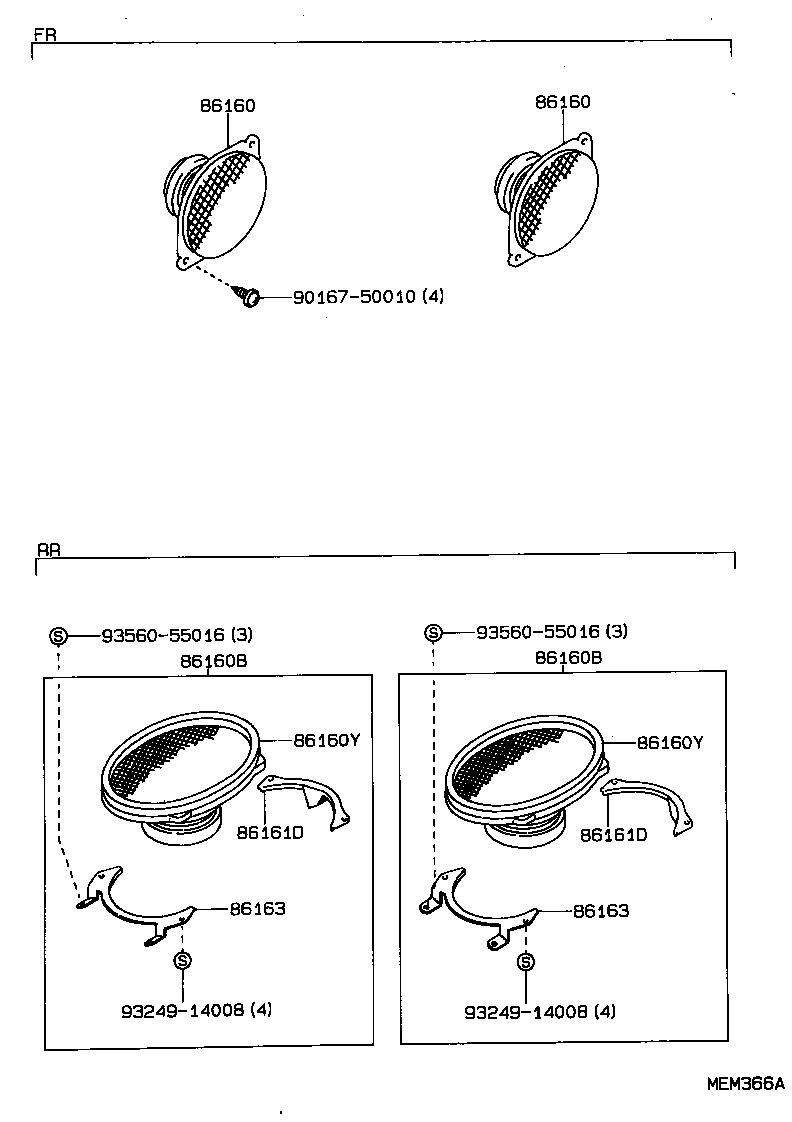

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-12290 |
AE9#,CE90,EE9# PIONEER |
1 | ||
| 86160-12280 |
AE9#,CE90,EE9#..GCC,GEN TEN |
1 | ||
| 86160-12280 |
AE92,CE90,EE90 TEN |
2 | ||
| 86160-12290 |
AE9#,CE90,EE9#..GCC,GEN PIONEER |
1 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-12290 |
AE9#,CE90,EE9# PIONEER |
1 | ||
| 86160-12280 |
AE9#,CE90,EE9#..GCC,GEN TEN |
1 | ||
| 86160-12280 |
AE92,CE90,EE90 TEN |
2 | ||
| 86160-12290 |
AE9#,CE90,EE9#..GCC,GEN PIONEER |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-12260 |
AE92,EE90..LB LH |
1 | ||
| 86160-12250 |
AE92,EE90..LB RH |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-12260 |
AE92,EE90..LB LH |
1 | ||
| 86160-12250 |
AE92,EE90..LB RH |
1 | ||
| 86160Y - SPEAKER ASSY, REAR NO.2 | ||||
| 86160-12310 |
AE92,EE90..LB |
2 | ||
| 86160Y - SPEAKER ASSY, REAR NO.2 | ||||
| 86160-12310 |
AE92,EE90..LB |
2 | ||
| 86161D - BRACKET, SPEAKER MOUNTING, NO.1 | ||||
| 86161-12020 |
AE92,EE90..LB LH |
1 | ||
| 86161-12010 |
AE92,EE90..LB RH |
1 | ||
| 86161D - BRACKET, SPEAKER MOUNTING, NO.1 | ||||
| 86161-12020 |
AE92,EE90..LB LH |
1 | ||
| 86161-12010 |
AE92,EE90..LB RH |
1 | ||
| 86163 - BRACKET, SPEAKER, NO.2 | ||||
| 86163-12010 |
AE92,EE90..LB RH |
1 | ||
| 86163-12020 |
AE92,EE90..LB LH |
1 | ||
| 86163 - BRACKET, SPEAKER, NO.2 | ||||
| 86163-12010 |
AE92,EE90..LB RH |
1 | ||
| 86163-12020 |
AE92,EE90..LB LH |
1 | ||
| Common parts | ||||
| 90167-50010 | ||||
| 93249-14008 | ||||
| 93560-55016 | ||||
