EE90R-AEMNS (1987)
Toyota Corolla Sed/Lb/Wg
(8908- )2E
NEW ZEALAND SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21192 - BREAKER | ||||
| 21192-10050 |
2E..EE9# |
1 | ||
| 21192-10050 |
2E..EE9#..GCC,GEN |
1 | ||
| 21192 - BREAKER | ||||
| 21192-10050 |
2E..EE9# |
1 | ||
| 21192-10050 |
2E..EE9#..GCC,GEN |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-13310 |
2E..EE9# |
1 | ||
| 21209-13310 |
2E..EE9# |
1 | ||
| 21209-11090 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21234 - PIPE OR HOSE | ||||
| 21235-11190 |
2E..EE97..RHD;2E..EE90..RHD..(LB,SED)..MTM..GEN SINGAPORE SPEC |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 21251-11540 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 90999-41104 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
1 | ||
| 90999-41104 |
2E..EE9# |
1 | ||
| 90999-41104 |
2E..EE9# |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 90999-42153 |
2E..EE9# |
1 | ||
| 90999-42153 |
2E..EE9#..GEN,SA;2E..EE90..(3FC,5F)..GCC |
1 | ||
| 90999-42153 |
2E..EE9# |
1 | ||
| 21255 - JET, POWER | ||||
| 90999-43058 |
2E..EE9# |
1 | ||
| 90999-43058 |
2E..EE9# |
1 | ||
| 90999-43068 |
2E..EE9# |
1 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-24100 |
2E..EE9#..GEN,SA |
1 | ||
| 21271-24100 |
2E..EE9#..GEN,SA |
1 | ||
| 21271-24100 |
2E..EE9#..GEN |
1 | ||
| 21271-24390 |
2E..EE97..RHD;2E..EE90..RHD..(LB,SED)..MTM..GEN SINGAPORE SPEC |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-24231 |
2E..EE9# |
1 | ||
| 21273-11090 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21273-24231 |
2E..EE9# |
1 | ||
| 21275 - SCREW, ADJUSTING | ||||
| 21844-33010 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21275-10050 |
2E..EE97..RHD;2E..EE90..RHD..(LB,SED)..MTM..GEN SINGAPORE SPEC OR W(POWER STEERING) |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-13310 |
2E..EE9# |
1 | ||
| 21301-11140 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21301-13310 |
2E..EE9# |
1 | ||
| 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) | ||||
| 21313-11020 |
2E..EE9# |
1 | ||
| 21313-11020 |
2E..EE9# |
1 | ||
| 21313-11020 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
1 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-60010 |
2E..EE9# |
1 | ||
| 21314-60010 |
2E..EE9# |
1 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21353-11540 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21353-13590 |
2E..EE9#..GEN,SA;2E..EE90..(3FC,5F)..GCC |
1 | ||
| 21353-13590 |
2E..EE9# |
1 | ||
| 21305-22011 |
2E..EE9# |
1 | ||
| 21353-13590 |
2E..EE9# |
1 | ||
| 21414 - SHAFT, CHOKE | ||||
| 21054-10050 |
2E..EE9# |
1 | ||
| 21054-10050 |
2E..EE9#..GEN,SA;2E..EE90..(3FC,5F)..GCC |
1 | ||
| 21054-10050 |
2E..EE9# |
1 | ||
| 21538 - RETAINER, BALL CHECK | ||||
| 21538-31010 |
2E..EE9# |
1 | ||
| 21538-31010 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
1 | ||
| 21538-31010 |
2E..EE9# |
1 | ||
| 21561 - WEIGHT, PUMP DISCHARGE | ||||
| 21561-22010 |
2E..EE9# |
1 | ||
| 21561-22010 |
2E..EE9# |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
2E..EE9# |
2 | ||
| 21611-15250 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21611-22010 |
2E..EE9# |
2 | ||
| 21611-22010 |
2E..EE9#..GCC,GEN |
2 | ||
| 21611-22010 |
2E..EE9#..GCC,GEN |
2 | ||
| 21611-22010 |
2E..EE9#..GEN;2E..EE90..SED..XL..GCC |
2 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
2E..EE9# |
2 | ||
| 21611-15250 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21611-22010 |
2E..EE9# |
2 | ||
| 21611-22010 |
2E..EE9#..GCC,GEN |
2 | ||
| 21611-22010 |
2E..EE9#..GCC,GEN |
2 | ||
| 21611-22010 |
2E..EE9#..GEN;2E..EE90..SED..XL..GCC |
2 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-22010 |
2E..EE9# 1ST |
1 | ||
| 21614-24360 |
2E..EE9# 2ND |
1 | ||
| 21614-13430 |
2E..EE9# 1ST |
1 | ||
| 21614-24580 |
2E..EE9# 2ND |
1 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-22010 |
2E..EE9# 1ST |
1 | ||
| 21614-24360 |
2E..EE9# 2ND |
1 | ||
| 21614-13430 |
2E..EE9# 1ST |
1 | ||
| 21614-24580 |
2E..EE9# 2ND |
1 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
2E..EE9# |
2 | ||
| 21617-30010 |
2E..EE9# |
2 | ||
| 21617-30010 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
2 | ||
| 21617-30010 |
2E..EE9# |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
2E..EE9# |
2 | ||
| 21617-30010 |
2E..EE9# |
2 | ||
| 21617-30010 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
2 | ||
| 21617-30010 |
2E..EE9# |
2 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-14010 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
1 | ||
| 21618-14010 |
2E..EE9# |
1 | ||
| 21618-14010 |
2E..EE9# |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
2 | ||
| 21633-24030 |
2E..EE9# |
1 | ||
| 21633-24030 |
2E..EE9# |
1 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-13430 |
2E..EE9# |
1 | ||
| 21622-24360 |
2E..EE9# |
1 | ||
| 21623 - GASKET, BODY FLANGE | ||||
| 21623-13080 |
2E..EE9# |
1 | ||
| 21623-13430 |
2E..EE9# |
1 | ||
| 21655 - RING, O(FOR LIFTER ROD) | ||||
| 21655-60010 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-11150 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21667-13010 |
2E..EE9# |
1 | ||
| 21667-13290 |
2E..EE9# |
1 | ||
| 21667-13290 |
2E..EE9#..GCC,GEN |
1 | ||
| 21679 - POSITIONER | ||||
| 21679-11480 |
2E..EE97..RHD;2E..EE90..RHD..(LB,SED)..MTM..GEN SINGAPORE SPEC |
1 | ||
| 21679-11450 |
2E..EE97..RHD;2E..EE90..RHD..(LB,SED)..MTM..GEN W(POWER STEERING) |
1 | ||
| 21679-11450 |
2E..EE9#..RHD..MTM..GEN;2E..EE90..LHD..SED..MTM..XL..GEN W(POWER STEERING) |
1 | ||
| 21699 - BOOT(FOR PUMP PLUNGER) | ||||
| 21699-28150 |
2E..EE9# |
1 | ||
| 21699-28150 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
1 | ||
| 21699-28150 |
2E..EE9# |
1 | ||
| 21699B - BOOT(FOR COMPENSATOR) | ||||
| 21699-11090 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21712 - BUSH, SLIDING ROD | ||||
| 21712-38010 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21722 - SPRING, PUMP DAMPING | ||||
| 21722-22010 |
2E..EE9# |
1 | ||
| 21722-22010 |
2E..EE9# |
1 | ||
| 21722-22010 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-38010 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21723-21030 |
2E..EE9# |
1 | ||
| 21723-21030 |
2E..EE9#..MTM..(GEN,SA) |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21864-24230 |
2E..EE9# |
1 | ||
| 21724-11340 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21864-24230 |
2E..EE9# |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21864-24230 |
2E..EE9# |
1 | ||
| 21724-11340 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21864-24230 |
2E..EE9# |
1 | ||
| 21732 - SPRING, THROTTLE ADJUSTING | ||||
| 21726-15251 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21734 - SPRING, POWER PISTON | ||||
| 21734-33081 |
2E..EE9#..GEN,SA |
1 | ||
| 21734-13440 |
2E..EE97..RHD;2E..EE90..RHD..(LB,SED)..MTM..GEN SINGAPORE SPEC |
1 | ||
| 21735 - SPRING, PUMP ARM | ||||
| 21735-23010 |
2E..EE9# |
1 | ||
| 21735-23010 |
2E..EE9# |
1 | ||
| 21735-11340 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21751-10050 |
2E..EE9# |
1 | ||
| 21894-11150 |
2E..EE90..RHD NEW ZEALAND SPEC |
1 | ||
| 21751-10050 |
2E..EE9# |
1 | ||
| 21894-11540 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21894-11151 |
2E..EE90..RHD NEW ZEALAND SPEC |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-38010 |
2E..EE9#..GEN,SA;2E..EE90..(3FC,5F)..GCC |
1 | ||
| 21763-38010 |
2E..EE9# |
1 | ||
| 21763-38010 |
2E..EE9# |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-15461 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21781-15230 |
2E..EE9# |
2 | ||
| 21781-15230 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
2 | ||
| 21781-15230 |
2E..EE9# |
2 | ||
| 21781-15230 |
2E..EE9# |
2 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-15461 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21781-15230 |
2E..EE9# |
2 | ||
| 21781-15230 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
2 | ||
| 21781-15230 |
2E..EE9# |
2 | ||
| 21781-15230 |
2E..EE9# |
2 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
2E..EE9# NO.1 |
6 | ||
| 21791-60010 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
2 | ||
| 21791-13010 |
2E..EE9# NO.2 |
2 | ||
| 21791-13011 |
2E..EE9#..GCC,GEN NO.1 |
1 | ||
| 21791-13011 |
2E..EE9#..GCC,GEN NO.2 |
2 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
2E..EE9# NO.1 |
6 | ||
| 21791-60010 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
2 | ||
| 21791-13010 |
2E..EE9# NO.2 |
2 | ||
| 21791-13011 |
2E..EE9#..GCC,GEN NO.1 |
1 | ||
| 21791-13011 |
2E..EE9#..GCC,GEN NO.2 |
2 | ||
| 21826 - SCREW, PUMP ARM SET | ||||
| 21826-31012 |
2E..EE9# |
1 | ||
| 21826-24470 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21826-31012 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
1 | ||
| 21826-31012 |
2E..EE9# |
1 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21833-31012 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21835-40010 |
2E..EE9#..GCC,GEN |
1 | ||
| 21835-40010 |
2E..EE9# |
1 | ||
| 21835-40010 |
2E..EE9# |
1 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21834-31010 |
2E..EE9#..GCC,GEN |
1 | ||
| 21834-31010 |
2E..EE9# |
1 | ||
| 21834-31010 |
2E..EE9# |
1 | ||
| 21850 - SCREW, THROTTLE SWITCH ADJUSTING | ||||
| 21272-11230 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21272-11090 |
2E..EE90..RHD NEW ZEALAND SPEC |
1 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
2E..EE9#..MTM..GEN W(POWER STEERING) |
2 | ||
| 21852-30010 |
2E..EE9# |
1 | ||
| 21852-30010 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
1 | ||
| 21852-30010 |
2E..EE9# |
1 | ||
| 21869 - SPRING(FOR MAIN JET) | ||||
| 21869-11540 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21869-15250 |
2E..EE90..RHD NEW ZEALAND SPEC |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
2E..EE9# |
1 | ||
| 21881-60010 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
1 | ||
| 21881-60010 |
2E..EE9# |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-13100 |
2E..EE9# |
1 | ||
| 21062-11450 |
2E..EE9# |
1 | ||
| 21062-11450 |
2E..EE9# |
1 | ||
| 21062-11500 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
2E..EE9# |
1 | ||
| 21655-44101 |
2E..EE9# |
1 | ||
| 21656-15250 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21655-44101 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
1 | ||
| 21934F - GASKET | ||||
| 21649-38010 |
2E..EE9# |
1 | ||
| 21649-38010 |
2E..EE9# |
1 | ||
| 21649-38010 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
1 | ||
| 21633-15250 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21649-38010 |
2E..EE9# |
1 | ||
| Common parts | ||||
| 21673-13280 | ||||
| 21795-30010 | ||||
| 21821-13080 | ||||
| 21821-15010 | ||||
| 21821-15060 | ||||
| 21821-15320 | ||||
| 21821-25010 | ||||
| 21821-31140 | ||||
| 21821-34370 | ||||
| 21821-34380 | ||||
| 21842-11611 | ||||
| 21842-33010 | ||||
| 21862-24230 | ||||
| 21885-26040 | ||||
| 90079-21001 | ||||
| 90339-03002 | ||||
| 90523-07014 | ||||
| 90999-43100 | ||||
| 90999-92002 | ||||
| 93319-13010 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 94512-00600 | ||||
| 94611-10300 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8705- )2E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21112 - HORN, AIR | ||||
| 21112-10050 |
2E..EE9#..GEN,SA |
1 | ||
| 21112-11450 |
2E..EE9#..GEN W(POWER STEERING) |
1 | ||
| 21112-11480 |
2E..EE97..RHD;2E..EE90..RHD..(LB,SED)..MTM..GEN SINGAPORE SPEC |
1 | ||
| 21112-10050 |
2E..EE9#..GEN,SA |
1 | ||
| 21112-10050 |
2E..EE9#..GEN |
1 | ||
| 21192 - BREAKER | ||||
| 21192-10050 |
2E..EE9# |
1 | ||
| 21192-10050 |
2E..EE9#..GCC,GEN |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-24510 |
2E..EE9# |
1 | ||
| 21205-24510 |
2E..EE9# |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-13310 |
2E..EE9# |
1 | ||
| 21209-13310 |
2E..EE9# |
1 | ||
| 21209-11090 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21235 - PIPE OR HOSE, CONNECTING | ||||
| 21235-10050 |
2E..EE9#..GEN,SA;2E..EE90..MTM..GCC |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 21251-11540 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 90999-41104 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
1 | ||
| 90999-41104 |
2E..EE9# |
1 | ||
| 90999-41104 |
2E..EE9# |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 90999-42153 |
2E..EE9# |
1 | ||
| 90999-42153 |
2E..EE9#..GEN,SA;2E..EE90..(3FC,5F)..GCC |
1 | ||
| 90999-42153 |
2E..EE9# |
1 | ||
| 21255 - JET, POWER | ||||
| 90999-43058 |
2E..EE9# |
1 | ||
| 90999-43058 |
2E..EE9# |
1 | ||
| 90999-43068 |
2E..EE9# |
1 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-24100 |
2E..EE9#..GEN,SA |
1 | ||
| 21271-24100 |
2E..EE9#..GEN,SA |
1 | ||
| 21271-24100 |
2E..EE9#..GEN |
1 | ||
| 21271-24390 |
2E..EE97..RHD;2E..EE90..RHD..(LB,SED)..MTM..GEN SINGAPORE SPEC |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 90079-13001 |
2E..EE9# |
1 | ||
| 90079-13001 |
2E..EE9#..GEN,SA;2E..EE90..MTM..GCC |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-24231 |
2E..EE9# |
1 | ||
| 21273-11090 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21273-24231 |
2E..EE9# |
1 | ||
| 21275 - SCREW, ADJUSTING | ||||
| 21844-33010 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21275-10050 |
2E..EE97..RHD;2E..EE90..RHD..(LB,SED)..MTM..GEN SINGAPORE SPEC OR W(POWER STEERING) |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-13310 |
2E..EE9# |
1 | ||
| 21301-11140 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21301-13310 |
2E..EE9# |
1 | ||
| 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) | ||||
| 21313-11020 |
2E..EE9# |
1 | ||
| 21313-11020 |
2E..EE9# |
1 | ||
| 21313-11020 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
1 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-60010 |
2E..EE9# |
1 | ||
| 21314-60010 |
2E..EE9# |
1 | ||
| 21341 - VALVE, POWER | ||||
| 21304-30010 |
2E..EE9# |
1 | ||
| 21304-30010 |
2E..EE9# |
1 | ||
| 21304-30010 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
1 | ||
| 21351 - PISTON, POWER | ||||
| 21351-24230 |
2E..EE97..RHD;2E..EE90..RHD..(LB,SED)..MTM..GEN SINGAPORE SPEC |
1 | ||
| 21351-33080 |
2E..EE9#..GEN,SA |
1 | ||
| 21351-33080 |
2E..EE9#..GEN,SA |
1 | ||
| 21351-33080 |
2E..EE9#..GEN,SA |
1 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21353-11540 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21353-13590 |
2E..EE9#..GEN,SA;2E..EE90..(3FC,5F)..GCC |
1 | ||
| 21353-13590 |
2E..EE9# |
1 | ||
| 21305-22011 |
2E..EE9# |
1 | ||
| 21353-13590 |
2E..EE9# |
1 | ||
| 21414 - SHAFT, CHOKE | ||||
| 21054-10050 |
2E..EE9# |
1 | ||
| 21054-10050 |
2E..EE9#..GEN,SA;2E..EE90..(3FC,5F)..GCC |
1 | ||
| 21054-10050 |
2E..EE9# |
1 | ||
| 21538 - RETAINER, BALL CHECK | ||||
| 21538-31010 |
2E..EE9# |
1 | ||
| 21538-31010 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
1 | ||
| 21538-31010 |
2E..EE9# |
1 | ||
| 21561 - WEIGHT, PUMP DISCHARGE | ||||
| 21561-22010 |
2E..EE9# |
1 | ||
| 21561-22010 |
2E..EE9# |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
2E..EE9# |
2 | ||
| 21611-15250 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21611-22010 |
2E..EE9# |
2 | ||
| 21611-22010 |
2E..EE9#..GCC,GEN |
2 | ||
| 21611-22010 |
2E..EE9#..GCC,GEN |
2 | ||
| 21611-22010 |
2E..EE9#..GEN;2E..EE90..SED..XL..GCC |
2 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
2E..EE9# |
2 | ||
| 21611-15250 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21611-22010 |
2E..EE9# |
2 | ||
| 21611-22010 |
2E..EE9#..GCC,GEN |
2 | ||
| 21611-22010 |
2E..EE9#..GCC,GEN |
2 | ||
| 21611-22010 |
2E..EE9#..GEN;2E..EE90..SED..XL..GCC |
2 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-22010 |
2E..EE9# 1ST |
1 | ||
| 21614-24360 |
2E..EE9# 2ND |
1 | ||
| 21614-13430 |
2E..EE9# 1ST |
1 | ||
| 21614-24580 |
2E..EE9# 2ND |
1 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-22010 |
2E..EE9# 1ST |
1 | ||
| 21614-24360 |
2E..EE9# 2ND |
1 | ||
| 21614-13430 |
2E..EE9# 1ST |
1 | ||
| 21614-24580 |
2E..EE9# 2ND |
1 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
2E..EE9# |
2 | ||
| 21617-30010 |
2E..EE9# |
2 | ||
| 21617-30010 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
2 | ||
| 21617-30010 |
2E..EE9# |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
2E..EE9# |
2 | ||
| 21617-30010 |
2E..EE9# |
2 | ||
| 21617-30010 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
2 | ||
| 21617-30010 |
2E..EE9# |
2 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-14010 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
1 | ||
| 21618-14010 |
2E..EE9# |
1 | ||
| 21618-14010 |
2E..EE9# |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
2 | ||
| 21633-24030 |
2E..EE9# |
1 | ||
| 21633-24030 |
2E..EE9# |
1 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-13430 |
2E..EE9# |
1 | ||
| 21622-24360 |
2E..EE9# |
1 | ||
| 21623 - GASKET, BODY FLANGE | ||||
| 21623-13080 |
2E..EE9# |
1 | ||
| 21623-13430 |
2E..EE9# |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-11150 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21667-13010 |
2E..EE9# |
1 | ||
| 21667-13290 |
2E..EE9# |
1 | ||
| 21667-13290 |
2E..EE9#..GCC,GEN |
1 | ||
| 21679 - POSITIONER | ||||
| 21679-11480 |
2E..EE97..RHD;2E..EE90..RHD..(LB,SED)..MTM..GEN SINGAPORE SPEC |
1 | ||
| 21679-11450 |
2E..EE97..RHD;2E..EE90..RHD..(LB,SED)..MTM..GEN W(POWER STEERING) |
1 | ||
| 21679-11450 |
2E..EE9#..RHD..MTM..GEN;2E..EE90..LHD..SED..MTM..XL..GEN W(POWER STEERING) |
1 | ||
| 21697 - BOOT(FOR SLIDING ROD) | ||||
| 21699-41010 |
2E..EE97..RHD;2E..EE90..RHD..(LB,SED)..MTM..GEN SINGAPORE SPEC OR W(POWER STEERING) |
1 | ||
| 21699 - BOOT(FOR PUMP PLUNGER) | ||||
| 21699-28150 |
2E..EE9# |
1 | ||
| 21699-28150 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
1 | ||
| 21699-28150 |
2E..EE9# |
1 | ||
| 21722 - SPRING, PUMP DAMPING | ||||
| 21722-22010 |
2E..EE9# |
1 | ||
| 21722-22010 |
2E..EE9# |
1 | ||
| 21722-22010 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-38010 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21723-21030 |
2E..EE9# |
1 | ||
| 21723-21030 |
2E..EE9#..MTM..(GEN,SA) |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21864-24230 |
2E..EE9# |
1 | ||
| 21724-11340 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21864-24230 |
2E..EE9# |
1 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21723-21030 |
2E..EE9#..GCC,GEN |
1 | ||
| 21723-21030 |
2E..EE9# |
1 | ||
| 21723-21030 |
2E..EE9#..GEN;2E..EE90..SED..XL..GCC |
1 | ||
| 21723-21030 |
2E..EE9# |
1 | ||
| 21731 - SPRING, DASH POT OR POSITIONER ADJUSTING | ||||
| 21864-24010 |
2E..EE97..RHD;2E..EE90..RHD..(LB,SED)..MTM..GEN SINGAPORE SPEC |
1 | ||
| 21723-21030 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC OR W(POWER STEERING) |
1 | ||
| 21734 - SPRING, POWER PISTON | ||||
| 21734-33081 |
2E..EE9#..GEN,SA |
1 | ||
| 21734-13440 |
2E..EE97..RHD;2E..EE90..RHD..(LB,SED)..MTM..GEN SINGAPORE SPEC |
1 | ||
| 21735 - SPRING, PUMP ARM | ||||
| 21735-23010 |
2E..EE9# |
1 | ||
| 21735-23010 |
2E..EE9# |
1 | ||
| 21735-11340 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21751-10050 |
2E..EE9# |
1 | ||
| 21894-11150 |
2E..EE90..RHD NEW ZEALAND SPEC |
1 | ||
| 21751-10050 |
2E..EE9# |
1 | ||
| 21894-11540 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21894-11151 |
2E..EE90..RHD NEW ZEALAND SPEC |
1 | ||
| 21756 - SPRING, BACK(FOR THROTTLE SHAFT) | ||||
| 21864-13290 |
2E..EE9# |
1 | ||
| 21756-15250 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21864-13290 |
2E..EE9# |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-38010 |
2E..EE9#..GEN,SA;2E..EE90..(3FC,5F)..GCC |
1 | ||
| 21763-38010 |
2E..EE9# |
1 | ||
| 21763-38010 |
2E..EE9# |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-15461 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21781-15230 |
2E..EE9# |
2 | ||
| 21781-15230 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
2 | ||
| 21781-15230 |
2E..EE9# |
2 | ||
| 21781-15230 |
2E..EE9# |
2 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-15461 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21781-15230 |
2E..EE9# |
2 | ||
| 21781-15230 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
2 | ||
| 21781-15230 |
2E..EE9# |
2 | ||
| 21781-15230 |
2E..EE9# |
2 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
2E..EE9# NO.1 |
6 | ||
| 21791-60010 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
2 | ||
| 21791-13010 |
2E..EE9# NO.2 |
2 | ||
| 21791-13011 |
2E..EE9#..GCC,GEN NO.1 |
1 | ||
| 21791-13011 |
2E..EE9#..GCC,GEN NO.2 |
2 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
2E..EE9# NO.1 |
6 | ||
| 21791-60010 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
2 | ||
| 21791-13010 |
2E..EE9# NO.2 |
2 | ||
| 21791-13011 |
2E..EE9#..GCC,GEN NO.1 |
1 | ||
| 21791-13011 |
2E..EE9#..GCC,GEN NO.2 |
2 | ||
| 21826 - SCREW, PUMP ARM SET | ||||
| 21826-31012 |
2E..EE9# |
1 | ||
| 21826-24470 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21826-31012 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
1 | ||
| 21826-31012 |
2E..EE9# |
1 | ||
| 21828 - SCREW, 1ST IDLE SET | ||||
| 21828-13310 |
2E..EE9# |
1 | ||
| 21828-13310 |
2E..EE9# |
1 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21833-31012 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21835-40010 |
2E..EE9#..GCC,GEN |
1 | ||
| 21835-40010 |
2E..EE9# |
1 | ||
| 21835-40010 |
2E..EE9# |
1 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21834-31010 |
2E..EE9#..GCC,GEN |
1 | ||
| 21834-31010 |
2E..EE9# |
1 | ||
| 21834-31010 |
2E..EE9# |
1 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
2E..EE9#..MTM..GEN W(POWER STEERING) |
2 | ||
| 21852-30010 |
2E..EE9# |
1 | ||
| 21852-30010 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
1 | ||
| 21852-30010 |
2E..EE9# |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
2E..EE9# |
1 | ||
| 21881-60010 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
1 | ||
| 21881-60010 |
2E..EE9# |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-13100 |
2E..EE9# |
1 | ||
| 21062-11450 |
2E..EE9# |
1 | ||
| 21062-11450 |
2E..EE9# |
1 | ||
| 21062-11500 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
2E..EE9# |
1 | ||
| 21655-44101 |
2E..EE9# |
1 | ||
| 21656-15250 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21655-44101 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
1 | ||
| 21934F - GASKET | ||||
| 21649-38010 |
2E..EE9# |
1 | ||
| 21649-38010 |
2E..EE9# |
1 | ||
| 21649-38010 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
1 | ||
| 21633-15250 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21649-38010 |
2E..EE9# |
1 | ||
| Common parts | ||||
| 21576-27010 | ||||
| 21821-13080 | ||||
| 21821-15010 | ||||
| 21821-15060 | ||||
| 21821-31140 | ||||
| 21821-34370 | ||||
| 21821-34380 | ||||
| 21844-24230 | ||||
| 90079-10007 | ||||
| 90079-21001 | ||||
| 90079-40002 | ||||
| 90079-70001 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 94512-00600 | ||||
| 94611-10300 | ||||
| 94611-10400 | ||||
| 95411-19930 | ||||
(8705-8908)2E
NEW ZEALAND SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21104 - CHAMBER SUB-ASSY, SUCTION | ||||
| 21014-11540 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21127 - BOWL, FLOAT | ||||
| 21127-11540 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21139 - ADAPTER(FOR CARBURETOR CONNECTING PIPE) | ||||
| 21139-11540 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-13310 |
2E..EE9# |
1 | ||
| 21209-13310 |
2E..EE9# |
1 | ||
| 21209-11090 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 21251-11540 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 90999-41104 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
1 | ||
| 90999-41104 |
2E..EE9# |
1 | ||
| 90999-41104 |
2E..EE9# |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-24231 |
2E..EE9# |
1 | ||
| 21273-11090 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21273-24231 |
2E..EE9# |
1 | ||
| 21274 - SCREW, 1ST THROTTLE ADJUSTING | ||||
| 21275-15460 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21275 - SCREW, ADJUSTING | ||||
| 21844-33010 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21275-10050 |
2E..EE97..RHD;2E..EE90..RHD..(LB,SED)..MTM..GEN SINGAPORE SPEC OR W(POWER STEERING) |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-13310 |
2E..EE9# |
1 | ||
| 21301-11140 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21301-13310 |
2E..EE9# |
1 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21353-11540 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21353-13590 |
2E..EE9#..GEN,SA;2E..EE90..(3FC,5F)..GCC |
1 | ||
| 21353-13590 |
2E..EE9# |
1 | ||
| 21305-22011 |
2E..EE9# |
1 | ||
| 21353-13590 |
2E..EE9# |
1 | ||
| 21386 - COMPENSATOR | ||||
| 21386-11560 |
2E..EE90..RHD..MTM..GEN NEW ZEALAND SPEC |
1 | ||
| 21499 - ROD, PUSH(FOR CARBURETOR) | ||||
| 21499-11150 |
2E..EE90..RHD NEW ZEALAND SPEC |
1 | ||
| 21499-11150 |
2E..EE90..RHD..MTM..GEN NEW ZEALAND SPEC |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
2E..EE9# |
2 | ||
| 21611-15250 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21611-22010 |
2E..EE9# |
2 | ||
| 21611-22010 |
2E..EE9#..GCC,GEN |
2 | ||
| 21611-22010 |
2E..EE9#..GCC,GEN |
2 | ||
| 21611-22010 |
2E..EE9#..GEN;2E..EE90..SED..XL..GCC |
2 | ||
| 21612 - GASKET, POWER VALVE | ||||
| 21612-15250 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-14010 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
1 | ||
| 21618-14010 |
2E..EE9# |
1 | ||
| 21618-14010 |
2E..EE9# |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
2 | ||
| 21633-24030 |
2E..EE9# |
1 | ||
| 21633-24030 |
2E..EE9# |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
2 | ||
| 21633-24030 |
2E..EE9# |
1 | ||
| 21633-24030 |
2E..EE9# |
1 | ||
| 21641B - GASKET, COMPENSATOR | ||||
| 21641-11540 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21642A - GASKET, FLOAT BOWL | ||||
| 21642-11090 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21647A - GASKET, ADAPTER | ||||
| 21647-11090 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21652 - RING, O(FOR SUCTION CHANBER ADJUSTING) | ||||
| 21652-15250 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21655 - RING, O(FOR LIFTER ROD) | ||||
| 21655-60010 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21655A - RING, O(FOR SLOW JET) | ||||
| 21655-15250 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21658 - RING, O(FOR MAIN GUIDE UPPER) | ||||
| 21658-15250 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-11150 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21667-13010 |
2E..EE9# |
1 | ||
| 21667-13290 |
2E..EE9# |
1 | ||
| 21667-13290 |
2E..EE9#..GCC,GEN |
1 | ||
| 21699 - BOOT(FOR PUMP PLUNGER) | ||||
| 21699-28150 |
2E..EE9# |
1 | ||
| 21699-28150 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
1 | ||
| 21699-28150 |
2E..EE9# |
1 | ||
| 21699B - BOOT(FOR COMPENSATOR) | ||||
| 21699-11090 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21712 - BUSH, SLIDING ROD | ||||
| 21712-38010 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21722 - SPRING, PUMP DAMPING | ||||
| 21722-22010 |
2E..EE9# |
1 | ||
| 21722-22010 |
2E..EE9# |
1 | ||
| 21722-22010 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-38010 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21723-21030 |
2E..EE9# |
1 | ||
| 21723-21030 |
2E..EE9#..MTM..(GEN,SA) |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21864-24230 |
2E..EE9# |
1 | ||
| 21724-11340 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21864-24230 |
2E..EE9# |
1 | ||
| 21731 - SPRING, DASH POT OR POSITIONER ADJUSTING | ||||
| 21864-24010 |
2E..EE97..RHD;2E..EE90..RHD..(LB,SED)..MTM..GEN SINGAPORE SPEC |
1 | ||
| 21723-21030 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC OR W(POWER STEERING) |
1 | ||
| 21732 - SPRING, THROTTLE ADJUSTING | ||||
| 21726-15251 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21735 - SPRING, PUMP ARM | ||||
| 21735-23010 |
2E..EE9# |
1 | ||
| 21735-23010 |
2E..EE9# |
1 | ||
| 21735-11340 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21751-10050 |
2E..EE9# |
1 | ||
| 21894-11150 |
2E..EE90..RHD NEW ZEALAND SPEC |
1 | ||
| 21751-10050 |
2E..EE9# |
1 | ||
| 21894-11540 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21894-11151 |
2E..EE90..RHD NEW ZEALAND SPEC |
1 | ||
| 21756 - SPRING, BACK(FOR THROTTLE SHAFT) | ||||
| 21864-13290 |
2E..EE9# |
1 | ||
| 21756-15250 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21864-13290 |
2E..EE9# |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-38010 |
2E..EE9#..GEN,SA;2E..EE90..(3FC,5F)..GCC |
1 | ||
| 21763-38010 |
2E..EE9# |
1 | ||
| 21763-38010 |
2E..EE9# |
1 | ||
| 21765 - PIN(FOR PUMP PLUNGER) | ||||
| 21765-15250 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21769 - PIN(FOR SUCTION CHANBER ADJUSTING) | ||||
| 21769-15250 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-15461 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21781-15230 |
2E..EE9# |
2 | ||
| 21781-15230 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
2 | ||
| 21781-15230 |
2E..EE9# |
2 | ||
| 21781-15230 |
2E..EE9# |
2 | ||
| 21785A - PLUG, PLATE(FOR SUCTION CHANBER ADJUSTING) | ||||
| 21785-13210 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC,NO.2 |
1 | ||
| 21785-11090 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC,NO.1 |
1 | ||
| 21672-15250 |
2E..EE90..RHD NEW ZEALAND SPEC,NO.2 |
1 | ||
| 21785A - PLUG, PLATE(FOR SUCTION CHANBER ADJUSTING) | ||||
| 21785-13210 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC,NO.2 |
1 | ||
| 21785-11090 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC,NO.1 |
1 | ||
| 21672-15250 |
2E..EE90..RHD NEW ZEALAND SPEC,NO.2 |
1 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
2E..EE9# NO.1 |
6 | ||
| 21791-60010 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
2 | ||
| 21791-13010 |
2E..EE9# NO.2 |
2 | ||
| 21791-13011 |
2E..EE9#..GCC,GEN NO.1 |
1 | ||
| 21791-13011 |
2E..EE9#..GCC,GEN NO.2 |
2 | ||
| 21811 - BOLT, UNION NIPPLE | ||||
| 21811-11060 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21826 - SCREW, PUMP ARM SET | ||||
| 21826-31012 |
2E..EE9# |
1 | ||
| 21826-24470 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21826-31012 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
1 | ||
| 21826-31012 |
2E..EE9# |
1 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21833-31012 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21835-40010 |
2E..EE9#..GCC,GEN |
1 | ||
| 21835-40010 |
2E..EE9# |
1 | ||
| 21835-40010 |
2E..EE9# |
1 | ||
| 21850 - SCREW, THROTTLE SWITCH ADJUSTING | ||||
| 21272-11230 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21272-11090 |
2E..EE90..RHD NEW ZEALAND SPEC |
1 | ||
| 21869 - SPRING(FOR MAIN JET) | ||||
| 21869-11540 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21869-15250 |
2E..EE90..RHD NEW ZEALAND SPEC |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-13100 |
2E..EE9# |
1 | ||
| 21062-11450 |
2E..EE9# |
1 | ||
| 21062-11450 |
2E..EE9# |
1 | ||
| 21062-11500 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
2E..EE9# |
1 | ||
| 21655-44101 |
2E..EE9# |
1 | ||
| 21656-15250 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21655-44101 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
1 | ||
| 21934F - GASKET | ||||
| 21649-38010 |
2E..EE9# |
1 | ||
| 21649-38010 |
2E..EE9# |
1 | ||
| 21649-38010 |
2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC |
1 | ||
| 21633-15250 |
2E..EE90..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 21649-38010 |
2E..EE9# |
1 | ||
| Common parts | ||||
| 21576-27010 | ||||
| 21821-15010 | ||||
| 21821-15060 | ||||
| 21821-31140 | ||||
| 21821-34380 | ||||
| 21842-11390 | ||||
| 21842-11540 | ||||
| 90079-11001 | ||||
| 90079-61002 | ||||
| 90339-11002 | ||||
| 90467-15004 | ||||
| 94120-40800 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||

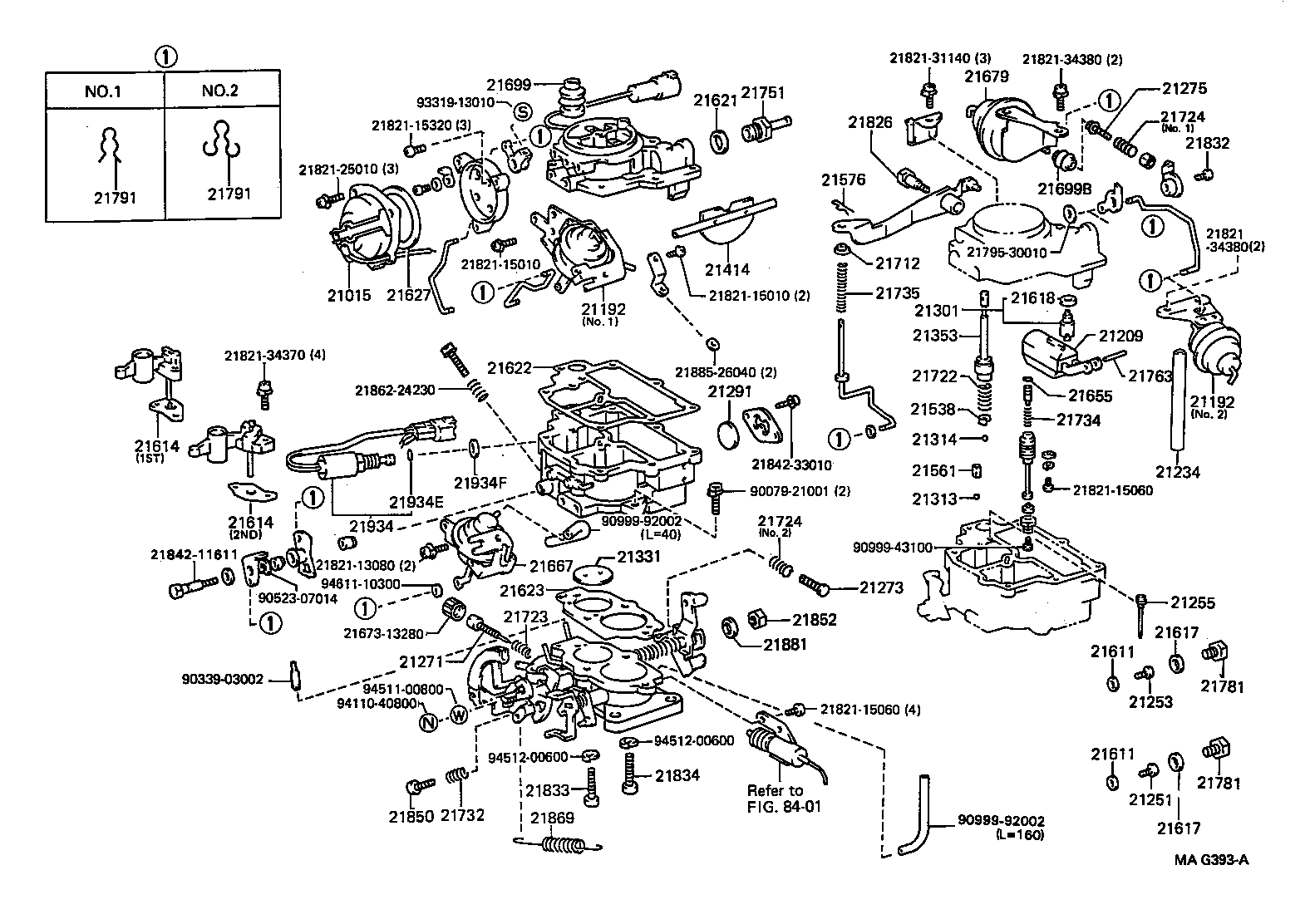

| Linked diagrams | ||||
| 1708 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
