EE90R-AEMDS (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - May 1992
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

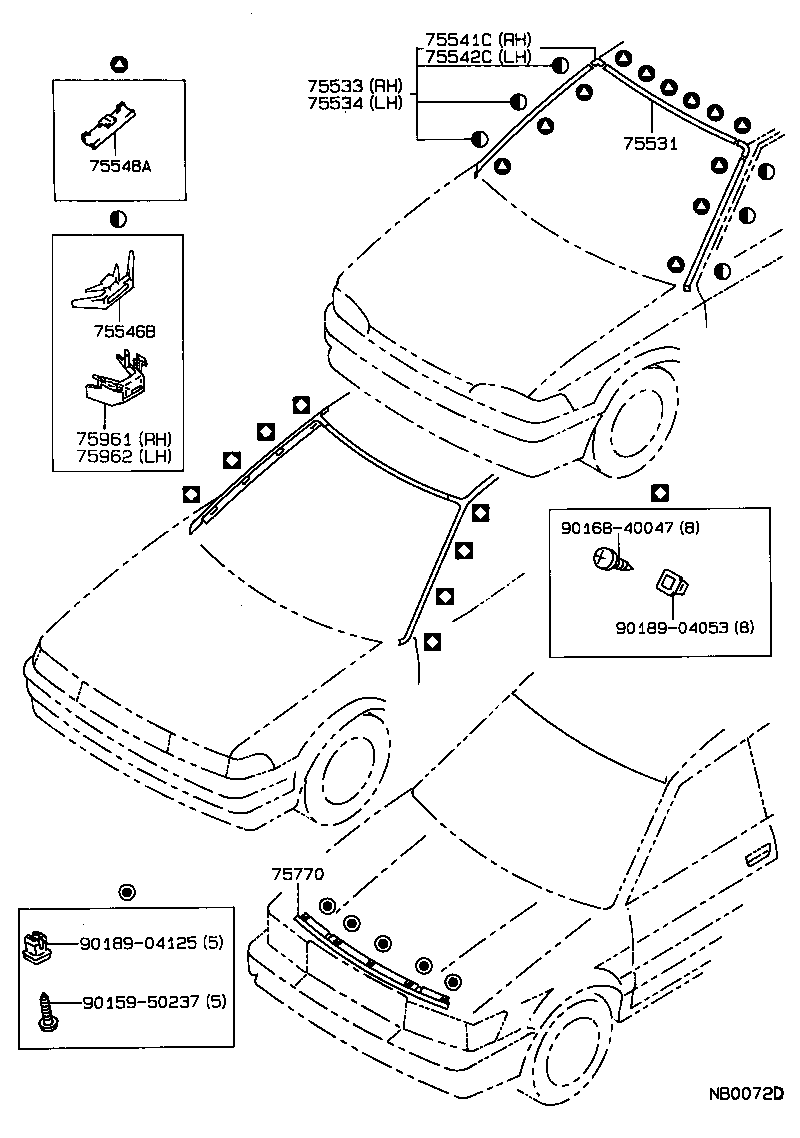

Click highlighted areas on diagram

diagram 75531 75533 75534 75541C 75542C 75546B 75548A 75770 75961 75962 9015950237 9016840047 9018904053 9018904125
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-12290

AE95,CE90..SED;EE90..STD..GCC;AE92,EE9#..(SED,WG)..(STD,XL)..(GEN,SA)

 1
75531-12300

AE92,EE90..XL..GCC;AE92,EE90..SED..(GL,GT,SE)

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-12290

EE90..RHD..(SED,WG)..XL..GEN

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-12220

EE90..RHD..(SED,WG)..XL..GEN

 1
75541C - COVER, WINDSHIELD MOULDING JOINT, UPPER RH
75541-12160

AE95,CE90..SED;EE90..STD..GCC;AE92,EE9#..(SED,WG)..(STD,XL)..(GEN,SA)

 1
75541-12170

AE92,EE90..XL..GCC;AE92,EE90..SED..(GL,GT,SE)

 1
75542C - COVER, WINDSHIELD MOULDING JOINT, UPPER LH
75542-12140

AE92,EE90..XL..GCC;AE92,EE90..SED..(GL,GT,SE)

 1
75542-12130

AE95,CE90..SED;EE90..STD..GCC;AE92,EE9#..(SED,WG)..(STD,XL)..(GEN,SA)

 1
75546B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.2
75546-12060

AE95..SED;AE92,CE90,EE9#..SED,WG

 8
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-16030

EE9#..SED,WG;AE9#,CE90..SED

 8
75961 - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.4
75961-12010

AE95..SED;AE92,CE90,EE9#..SED,WG

 1
75962 - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.5
75962-12010

AE95..SED;AE92,CE90,EE9#..SED,WG

 1
Common parts
90159-50237
90168-40047
90189-04053
90189-04125
