EE90R-AEKDS (1987)
Toyota Corolla Sed/Lb/Wg

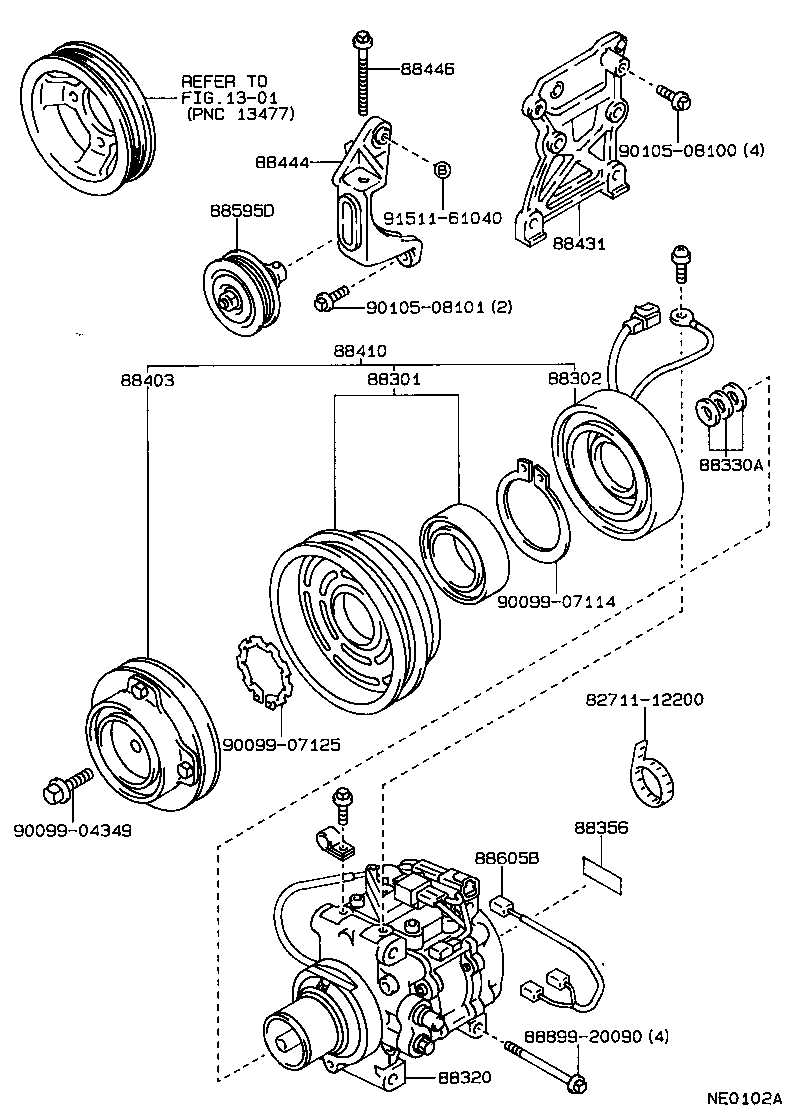

ILLUST NO. 1 OF 2(8705- )EE9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-16030 |
EE90;AE92,EE97..(LB,WG)..MTM..(GTI,STD,XL) |
1 | ||
| 88412-16050 |
EE9#..GEN |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-16021 |
EE90..RHD;AE92,EE97..RHD..MTM..(GTI,STD,XL) |
1 | ||
| 88411-16020 |
EE90..RHD;AE92,EE97..RHD..MTM..(GTI,STD,XL) W(POWER STEERING) |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-12540 |
AE92..GTI;EE90..RHD |
1 | ||
| 88320-12540 |
EE90;AE92,EE97..(LB,WG)..MTM..(GTI,STD,XL) |
1 | ||
| 88320-12540 |
EE9#..GEN |
1 | ||
| 88320-12530 |
EE90;AE92,EE97..(LB,WG)..MTM..(GTI,STD,XL) W(POWER STEERING) |
1 | ||
| 88320-12530 |
EE9#..GEN W(POWER STEERING) |
1 | ||
| 88320-12850 |
EE9#..GEN |
1 | ||
| 88320-12860 |
EE9#..RHD..GEN W(POWER STEERING) |
1 | ||
| 88320-12850 |
EE9#..RHD..GEN |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
AE9#,EE9# |
1 | ||
| 88356 - LABEL, COMPRESSOR CAUTION | ||||
| 88356-12010 |
AE9#,EE97;EE90..GCC,GEN |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
EE90..RHD;AE92,EE97..RHD..MTM..(GTI,STD,XL) |
1 | ||
| 88403-16011 |
EE9#..RHD..GEN |
1 | ||
| 88403-16010 |
EE90..RHD..GEN;AE92,EE97..RHD..MTM..(GTI,STD,XL)..GEN |
1 | ||
| 88403-16011 |
EE9#..GEN |
2 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-16021 |
EE90;AE92,EE97..(LB,WG)..MTM..(GTI,STD,XL) |
1 | ||
| 88410-16021 |
EE90 |
1 | ||
| 88410-16021 |
EE90 |
2 | ||
| 88410-16021 |
EE9#..GEN |
1 | ||
| 88410-16050 |
EE9#..GEN |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-12370 |
EE9# |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-10031 |
EE9#..GCC,GEN |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-12030 |
AE92..LB..XL;EE90..MTM..GCC;AE92..LHD..SED..GL;AE92..RHD..(GL,SE,XL);AE95,CE90,EE9#..ARL,GEN |
1 | ||
| 88446-12030 |
EE90..GCC,GEN;AE9#,CE90,EE97..GL,SE,SR5,STD,XL |
1 | ||
| 88595D - PULLEY ASSY, IDLE | ||||
| 88440-12170 |
CE90,EE9#..GCC,GEN |
1 | ||
| 88605B - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-1A720 |
AE92..GT,GTI;EE9#..GCC,GEN |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88899-20090 | ||||
| 90099-04349 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90105-08100 | ||||
| 90105-08101 | ||||
| 91511-61040 | ||||
| Linked diagrams | ||||
| 1301 | ||||
ILLUST NO. 2 OF 2(8705- )EE9# ; (8705- )GT,GTI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88307A - REED SUB-ASSY, VALVE | ||||
| 88307-12050 |
EE9#..RHD..GEN |
1 | ||
| 88307-16010 |
EE9#;AE92..GTI;AE92..GT..SA |
1 | ||
| 88309A - PUMP SUB-ASSY, COMPRESSOR | ||||
| 88309-16020 |
EE9#;AE92..GT,GTI |
1 | ||
| 88309-12020 |
EE9#..RHD..GEN |
1 | ||
| 88309-12020 |
EE9#..GEN |
1 | ||
| 88309-16020 |
EE9# |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-16030 |
AE92..GTI;EE90..RHD FR |
1 | ||
| 88322-12030 |
AE92..GTI;EE90..RHD RR |
1 | ||
| 88321-16030 |
EE90;AE92,EE97..(LB,WG)..MTM..(GTI,STD,XL) FR |
1 | ||
| 88322-12030 |
EE90;AE92,EE97..(LB,WG)..MTM..(GTI,STD,XL) RR |
1 | ||
| 88321-16030 |
EE9#..GEN FR |
1 | ||
| 88321-16040 |
EE90;AE92,EE97..(LB,WG)..MTM..(GTI,STD,XL) W(POWER STEERING),FR |
1 | ||
| 88322-12040 |
EE9#..RHD..GEN RR |
1 | ||
| 88322-12030 |
EE9#..GEN RR |
1 | ||
| 88322-12040 |
EE9#..GEN RR |
1 | ||
| 88321-16040 |
EE9#..GEN W(POWER STEERING),FR |
1 | ||
| 88321-16030 |
EE9#..GEN FR |
1 | ||
| 88322-12040 |
EE9#..GEN RR |
1 | ||
| 88321-16040 |
EE9#..RHD..GEN W(POWER STEERING),FR |
1 | ||
| 88322-12060 |
EE9#..GEN RR,W(POWER STEERING) |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-16030 |
AE92..GTI;EE90..RHD FR |
1 | ||
| 88322-12030 |
AE92..GTI;EE90..RHD RR |
1 | ||
| 88321-16030 |
EE90;AE92,EE97..(LB,WG)..MTM..(GTI,STD,XL) FR |
1 | ||
| 88322-12030 |
EE90;AE92,EE97..(LB,WG)..MTM..(GTI,STD,XL) RR |
1 | ||
| 88321-16030 |
EE9#..GEN FR |
1 | ||
| 88321-16040 |
EE90;AE92,EE97..(LB,WG)..MTM..(GTI,STD,XL) W(POWER STEERING),FR |
1 | ||
| 88322-12040 |
EE9#..RHD..GEN RR |
1 | ||
| 88322-12030 |
EE9#..GEN RR |
1 | ||
| 88322-12040 |
EE9#..GEN RR |
1 | ||
| 88321-16040 |
EE9#..GEN W(POWER STEERING),FR |
1 | ||
| 88321-16030 |
EE9#..GEN FR |
1 | ||
| 88322-12040 |
EE9#..GEN RR |
1 | ||
| 88321-16040 |
EE9#..RHD..GEN W(POWER STEERING),FR |
1 | ||
| 88322-12060 |
EE9#..GEN RR,W(POWER STEERING) |
1 | ||
| 88328A - PIN, COMPRESSOR | ||||
| 88328-10010 |
EE9#;AE92..GT,GTI |
2 | ||
| 88329E - BOLT, COMPRESSOR, NO.1 | ||||
| 88329-16010 |
EE9#;AE92..GT,GTI |
5 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-16030 |
AE92..GTI;EE90..RHD |
1 | ||
| 88335-16040 |
EE9#..GEN W(POWER STEERING) |
1 | ||
| 88335-16030 |
EE90;AE92,EE97..(LB,WG)..MTM..(GTI,STD,XL) |
1 | ||
| 88335-16030 |
EE9#..GEN |
1 | ||
| 88335-16050 |
EE9#..GEN |
1 | ||
| 88335-16040 |
EE90;AE92,EE97..(LB,WG)..MTM..(GTI,STD,XL) W(POWER STEERING) |
1 | ||
| 88335-16030 |
EE9# |
1 | ||
| 88335-16050 |
EE9#..RHD..GEN |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-16020 |
AE92..GT,GTI;EE9#..GCC,GEN NO.2 |
1 | ||
| 88336-16010 |
EE9#;AE92..GT,GTI NO.1 |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-16020 |
AE92..GT,GTI;EE9#..GCC,GEN NO.2 |
1 | ||
| 88336-16010 |
EE9#;AE92..GT,GTI NO.1 |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-16010 |
EE9#;AE92..GT,GTI |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-16050 |
EE9# |
1 | ||
| 88371-16050 |
EE9#;AE92..GT,GTI |
1 | ||
| 88372 - VALVE, DISCHARGE | ||||
| 88372-16030 |
EE9#;AE92..GT,GTI |
1 | ||
| 88372-16030 |
EE9#..GEN |
1 | ||
| 88372-16030 |
EE9# |
1 | ||
| 88397A - CLIP, COMPRESSOR | ||||
| 88397-16010 |
AE92..GT,GTI;EE9#..GCC,GEN |
1 | ||
| 88648K - WIRE SUB-ASSY, SENSOR | ||||
| 88648-12360 |
AE92..GTI;EE90..RHD |
1 | ||
| 88648-12360 |
EE9#..GEN |
1 | ||
| 88648-12360 |
EE90;AE92,EE97..(LB,WG)..MTM..(GTI,STD,XL) |
1 | ||
| 88648-16140 |
EE9#..GEN W(POWER STEERING) |
1 | ||
| 88648-16140 |
EE90;AE92,EE97..(LB,WG)..MTM..(GTI,STD,XL) W(POWER STEERING) |
1 | ||
| 88648-12360 |
EE9#..GEN |
1 | ||
| 88648-16140 |
EE9#..RHD..GEN W(POWER STEERING) |
1 | ||
| 88648-12360 |
EE9#..RHD..GEN |
1 | ||
| 88648-12480 |
EE9#..RHD..GEN |
1 | ||
| Common parts | ||||
| 88329-16020 | ||||
| 91511-40820 | ||||
| 93881-15008 | ||||
