EE90R-AEKDS (1987)
Toyota Corolla Sed/Lb/Wg
(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL | ||||
| 68171-20030 |
EE97..RHD;AE92,CE90,EE90..(LB,SED)..GEN |
2 | ||
| 68171-20030 |
EE97..RHD;AE92,CE90,EE90..GEN |
2 | ||
| 68171-20030 |
AE92,CE90,EE90..(LB,SED)..GEN |
2 | ||
| 68710 - HINGE ASSY, FRONT DOOR, UPPER RH | ||||
| 68710-12100 |
AE9#,CE90,EE9#..ARL,GEN,SA |
1 | ||
| 68720 - HINGE ASSY, FRONT DOOR, UPPER LH | ||||
| 68720-12100 |
AE9#,CE90,EE9#..ARL,GEN,SA |
1 | ||
| 68730 - HINGE ASSY, FRONT DOOR, LOWER RH | ||||
| 68730-12060 |
AE9#,CE90,EE9#..ARL,GEN,SA |
1 | ||
| 68740 - HINGE ASSY, FRONT DOOR, LOWER LH | ||||
| 68740-12060 |
AE9#,CE90,EE9#..ARL,GEN,SA |
1 | ||
| 69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR | ||||
| 69260-1004043 |
EE97..RHD;EE97..LHD..STD;AE92,CE90,EE90..STD,XL GRAY,TRIM1# |
2 | ||
| 69260-1004012 |
AE9#,EE90..RHD..(LB,SED)..XL..GEN MAROON,TRIM3# |
2 | ||
| 69260-1004055 |
EE97..RHD;EE97..LHD..STD;AE92,CE90,EE90..STD,XL DARK BEIGE,TRIM4# |
2 | ||
| 69260-1004012 |
AE92,EE90..RHD..SED..XL..GEN MAROON,TRIM3# |
2 | ||
| 69260-1004055 |
AE9#,CE90,EE9#..(STD,XL)..(ARL,GCC,GEN) DARK BEIGE,TRIM4# |
2 | ||
| 69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR | ||||
| 69260-1004043 |
EE97..RHD;EE97..LHD..STD;AE92,CE90,EE90..STD,XL GRAY,TRIM1# |
2 | ||
| 69260-1004012 |
AE9#,EE90..RHD..(LB,SED)..XL..GEN MAROON,TRIM3# |
2 | ||
| 69260-1004055 |
EE97..RHD;EE97..LHD..STD;AE92,CE90,EE90..STD,XL DARK BEIGE,TRIM4# |
2 | ||
| 69260-1004012 |
AE92,EE90..RHD..SED..XL..GEN MAROON,TRIM3# |
2 | ||
| 69260-1004055 |
AE9#,CE90,EE9#..(STD,XL)..(ARL,GCC,GEN) DARK BEIGE,TRIM4# |
2 | ||
| 69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE | ||||
| 90520-01005 |
AE9#,EE90..(GL,GT,GTI,SE,SR5)..(ARL,GEN,SA) |
2 | ||
| 90520-01002 |
AE9#,CE90,EE9#..(SE,STD,XL)..(ARL,GCC,GEN) |
2 | ||
| 69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE | ||||
| 90520-01005 |
AE9#,EE90..(GL,GT,GTI,SE,SR5)..(ARL,GEN,SA) |
2 | ||
| 90520-01002 |
AE9#,CE90,EE9#..(SE,STD,XL)..(ARL,GCC,GEN) |
2 | ||
| 69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE | ||||
| 69268-16010 |
AE92..SE..GCC;AE9#,CE90,EE9#..STD,XL |
2 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69810-12290 |
AE9#,CE90,EE9# |
1 | ||
| 69801-12100 |
AE92..GL;EE97..LHD..XL;EE90..(LB,SED)..(GL,XL)..(GCC,GEN);AE92,CE90..SED..(GT,SE,XL)..(GCC,GEN) W(*PW) |
1 | ||
| 69801-12100 |
EE97..LHD..XL;AE92..GL,GT,SE;AE9#,CE90..XL..GEN;EE90..(LB,SED)..(GL,XL)..(GCC,GEN) W(*PW) |
1 | ||
| 69801-12100 |
EE97..LHD..XL;AE92..GL,GT,SE;AE95,CE90..GEN;AE92..SED..XL..GEN;EE90..(LB,SED)..(GL,XL)..(GCC,GEN) W(*PW) |
1 | ||
| 69801-12100 |
AE92..GL,GT,GTI,SE;EE90..(GL,XL)..GEN;EE90..SED..XL..GCC;AE9#,CE90,EE97..XL..GEN W(*PW) |
1 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69810-12290 |
AE9#,CE90,EE9# |
1 | ||
| 69801-12100 |
AE92..GL;EE97..LHD..XL;EE90..(LB,SED)..(GL,XL)..(GCC,GEN);AE92,CE90..SED..(GT,SE,XL)..(GCC,GEN) W(*PW) |
1 | ||
| 69801-12100 |
EE97..LHD..XL;AE92..GL,GT,SE;AE9#,CE90..XL..GEN;EE90..(LB,SED)..(GL,XL)..(GCC,GEN) W(*PW) |
1 | ||
| 69801-12100 |
EE97..LHD..XL;AE92..GL,GT,SE;AE95,CE90..GEN;AE92..SED..XL..GEN;EE90..(LB,SED)..(GL,XL)..(GCC,GEN) W(*PW) |
1 | ||
| 69801-12100 |
AE92..GL,GT,GTI,SE;EE90..(GL,XL)..GEN;EE90..SED..XL..GCC;AE9#,CE90,EE97..XL..GEN W(*PW) |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-12100 |
AE92..GL,GT,GTI,SE;EE90..(GL,XL)..GEN;EE90..SED..XL..GCC;AE9#,CE90,EE97..XL..GEN W(*PW) |
1 | ||
| 69802-12100 |
EE97..LHD..XL;AE92..GL,GT,SE;AE9#,CE90..XL..GEN;EE90..(LB,SED)..(GL,XL)..(GCC,GEN) W(*PW) |
1 | ||
| 69820-12290 |
AE9#,CE90,EE9# |
1 | ||
| 69802-12100 |
AE92..GL;EE97..LHD..XL;EE90..(LB,SED)..(GL,XL)..(GCC,GEN);AE92,CE90..SED..(GT,SE,XL)..(GCC,GEN) W(*PW) |
1 | ||
| 69802-12100 |
EE97..LHD..XL;AE92..GL,GT,SE;AE95,CE90..GEN;AE92..SED..XL..GEN;EE90..(LB,SED)..(GL,XL)..(GCC,GEN) W(*PW) |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-12100 |
AE92..GL,GT,GTI,SE;EE90..(GL,XL)..GEN;EE90..SED..XL..GCC;AE9#,CE90,EE97..XL..GEN W(*PW) |
1 | ||
| 69802-12100 |
EE97..LHD..XL;AE92..GL,GT,SE;AE9#,CE90..XL..GEN;EE90..(LB,SED)..(GL,XL)..(GCC,GEN) W(*PW) |
1 | ||
| 69820-12290 |
AE9#,CE90,EE9# |
1 | ||
| 69802-12100 |
AE92..GL;EE97..LHD..XL;EE90..(LB,SED)..(GL,XL)..(GCC,GEN);AE92,CE90..SED..(GT,SE,XL)..(GCC,GEN) W(*PW) |
1 | ||
| 69802-12100 |
EE97..LHD..XL;AE92..GL,GT,SE;AE95,CE90..GEN;AE92..SED..XL..GEN;EE90..(LB,SED)..(GL,XL)..(GCC,GEN) W(*PW) |
1 | ||
| 69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH | ||||
| 69901-12190 |
EE97..RHD;AE92,CE90,EE90..GEN |
1 | ||
| 69901-12190 |
EE97..RHD;AE92,CE90,EE90..(LB,SED)..GEN W(FRONT DOOR GLASS T=4.0) |
1 | ||
| 69901-12190 |
AE92,CE90,EE90..(LB,SED)..GEN |
1 | ||
| 69901-12190 |
EE97..RHD;AE92,CE90,EE90..GEN |
1 | ||
| 69901-12230 |
EE97..RHD;AE92,CE90,EE90..GEN W(FRONT DOOR GLASS T=3.5) |
1 | ||
| 69901-12190 |
EE97..RHD;AE92,CE90,EE90..(LB,SED)..GEN |
1 | ||
| 69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH | ||||
| 69902-12130 |
EE97..RHD;AE92,CE90,EE90..GEN |
1 | ||
| 69902-12130 |
EE97..RHD;AE92,CE90,EE90..GEN |
1 | ||
| 69902-12130 |
EE97..RHD;AE92,CE90,EE90..(LB,SED)..GEN W(FRONT DOOR GLASS T=4.0) |
1 | ||
| 69902-12130 |
AE92,CE90,EE90..(LB,SED)..GEN |
1 | ||
| 69902-12170 |
EE97..RHD;AE92,CE90,EE90..GEN W(FRONT DOOR GLASS T=3.5) |
1 | ||
| 69902-12130 |
EE97..RHD;AE92,CE90,EE90..(LB,SED)..GEN |
1 | ||
| 69971A - FILLER, FRONT DOOR GLASS CHANNEL | ||||
| 69971-12090 |
AE92,CE90,EE90..(LB,SED)..GEN |
2 | ||
| Common parts | ||||
| 90119-08093 | ||||
| 90168-50040 | ||||
| 91511-60610 | ||||
| 91651-60610 | ||||

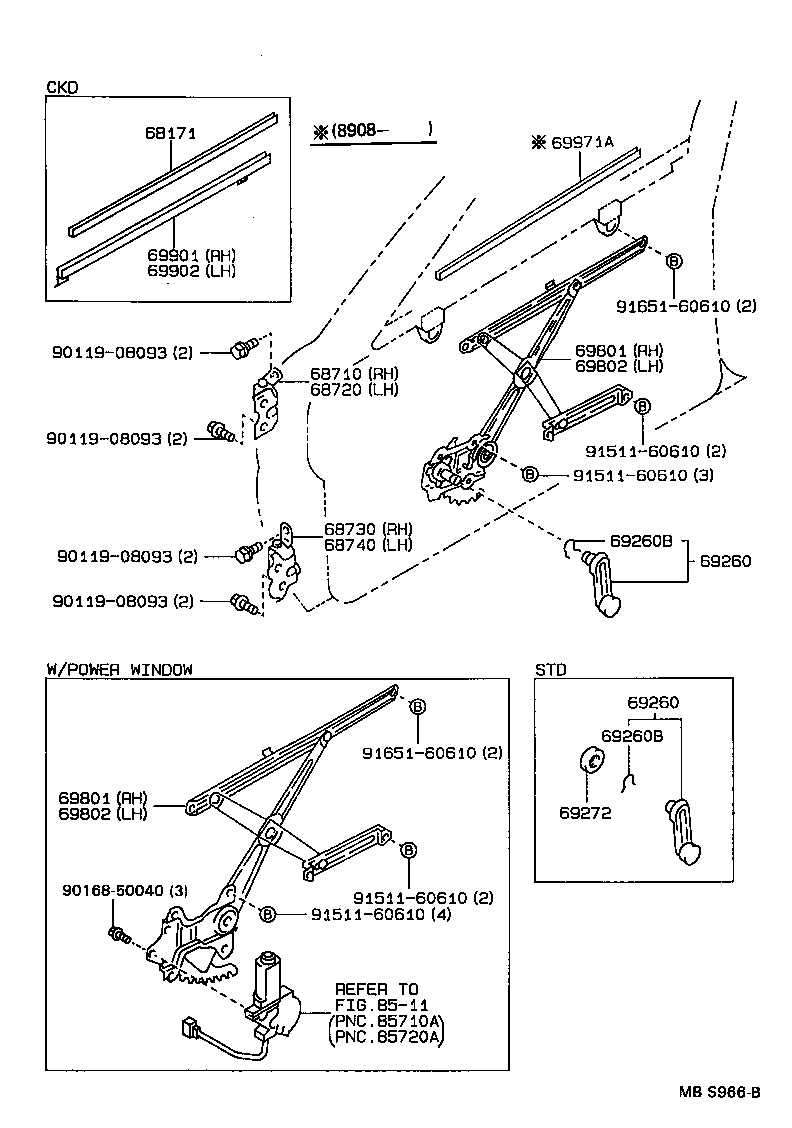

| Linked diagrams | ||||
| 8511 | ||||
